Bba Screw Assembly Machine Screw Inserting Automation Robot Robotic Screw Fix Machine Automation for Assembly Factory Screw Magnetic Feeding Robotic Machine
Basic Info.
Model NO.
BBA-5441LS blow type feeder 08
Type
Cordless Screwdriver
Voltage
110/220V 50/60Hz
Power Supply Voltage
110/220V 50/60Hz
Automation
Automation
Power Source
Pneumatic
Function
Professional
Condition
New
Customized
Customized
Product Name
Automatic Screw Locking Machine
Air Supply
0.5-0.7MPa
Movement Speed
10-800mm/S
Position Accuracy
+/-0.02mm
Program Capacitymode
999 Groups/1000 Points Per Group
Display Mode
Touch Screen
Motor System
Micro Precision Stepping Motor
Transmission Mode
Precision Toothed Belt+Guide Rail
Screwdriver Torque
0.015~2.5n.M (More Than 3.0n.M Customized)
Universal Screws
M2-M8
Work Efficiency
1.2~1.5s/PCS
Screw Feeder Type
Blow Type Feeder to Blow out Screws Directly
External Machine Size(L*W*H)
700*850*700mm
Warranty
2 Years
Certification
Patents, CE
Transport Package
Export Plywooden Case
Specification
500*300*300*100 (X*Y*Z)@Can Be Customized
Trademark
BBA
Origin
China
HS Code
8479899990
Production Capacity
2000sets/Month
Packaging & Delivery
Package Size
75.00cm * 90.00cm * 85.00cm
Package Gross Weight
125.000kg
Product Description

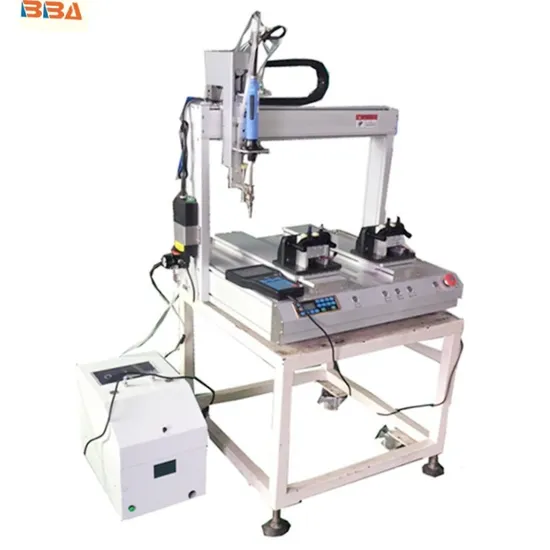

XYZ axis screwdriver machine with blow type screw feeder to blow out screws directlyAutomatic screw machine is composed of an automatic screw feeding system and a five-dimensional automatic manipulator. It has the detection of screw slip, no screw, floating lock, etc. Screw fastening robot can complete the workload of 3-6 people at the same time with fully automatic cooperation, and only needs one person to operate, which greatly improves the production efficiency, screw driving robot is high universa, only needs to change the fixture to adjust the program.1. The double-station full-automatic alternate operation machine can work non-stop when the products on one of the workbenches is locked and can be loaded on the other workbench. It is safe, convenient, fast, and efficient.
2. Reduce the labor intensity of workers. Workers only need to pick and place products and the machine can automatically complete the screwing, which greatly reduces labor intensity.
3. Simple operation. The display screen visualizes the operator to quickly grasp the operation and debugging: one worker can manage several machines at the same time
4. Improve product quality. Accurate torque and convenient adjustment to ensure locking quality
Product Description
Machine extenal accessories
Customization available
Full Series of BBA Screwing Machines
| Model | BBA-331LS (Single Y platform) | BBA-5441LS (Double Y platform) | BBA-6441LS (Dual screw feeding systems) | CUSTOMIZED | |||
| Power supply | AC 220V 50/60HZ | ||||||
| Stroke | X | 300mm | X | 500mm | X1/X2 | 600mm | To order |
| Y | 300mm | Y1/Y2 | 400mm | Y1/Y2 | 400mm | ||
| Z | 100mm | Z | 100mm | Z | 100mm | ||
| Maximum Load Weight | 10KG (for work platfrom) | To order | |||||
| Screwdriver torque | 0.015~2.5N.m | More than 3.0N.m | |||||
| Moving speed | 10-800mm/s | ||||||
| Air pressure | 0.5-0.7MPa | ||||||
| Position accuracy | ±0.02mm/axis | ||||||
| Program capacity | 999 groups/1000 points per group | ||||||
| Motor system | Micro Precision Stepping Motor | ||||||
| Transmission mode | Precision toothed belt+guide rail | ||||||
| Universal screws | M1-M8 | ||||||
| Control panel | Teaching pendant with display screen | ||||||
| Work efficiency | 1.2~1.5s/pcs | ||||||
| Work environment | Temperature: 5-40ºC Humidity: 20-90% | ||||||
| Weight | 70kg | 90kg | 120kg | To order | |||
| External Machine Size(L*W*H) | 700*630*700mm | 820*730*700mm | 920*730*700mm | To order | |||
