High Speed Stainless Steel Braided Braid Braiding Machinerotary Braider Rotary Braider

Product Description

High Speed Stainless Steel Braided Braid Braiding MachineRotary Braider Rotary BraiderProduct Description
Horizontal Braided Braid Braiding Machine

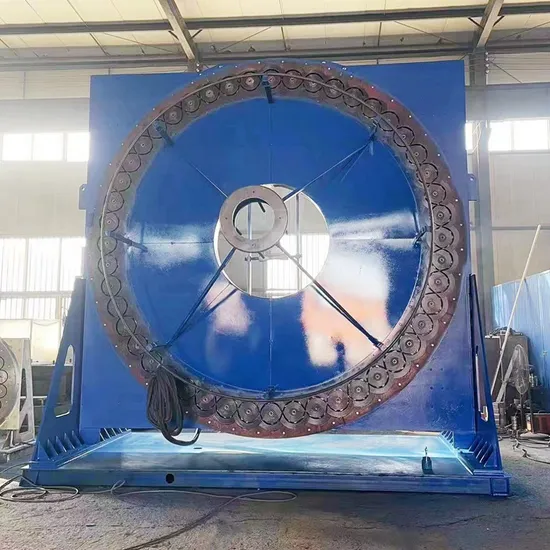

The large 96-carrier braiding machine adopts frequency conversion split type, large RF series reducer with 4 5.5 motors, traction is R137 series reducer with 15KW motor with universal joint transmission, crawler traction, and automatic clamping function. Equipped with 96 large spindles and 96 large bobbins Product Parameters

Machine Type	Braiding Hose Type	SS wire strands QTY	SS wire diameter	Flat braid wire strands QTY	Flat braid wire diameter in inch	Flat braid wire diameter in mm
96 cairrer braided braiding machine	14" braided braiding 96X25X0.028"			25	0.028 "	0. 7 mm
96 cairrer braided braiding machine	12" braided braiding 96X25X0.028"			25	0. 028"	0. 7 mm
96 cairrer braided braiding machine	10" braided braiding 96X25X0.028"			25	0. 028"	0. 7 mm
96 cairrer braided braiding machine	8" braided braiding 96X21X0.024"			21	0. 024"	0.6 mm
96 cairrer braided braiding machine	6"braided braiding 96X13X0.025"			13	0.025"	0.6 mm
Normal type 96 carrier wire braiding machine	6" standard wire braiding 96X12X0.020"	12	0. 020" 0. 5mm

Finished Braided Braid
Related MachinesWinding Machine for Steel Wire
*It adopts the structure of smooth rod wiring device to control the left and right cable change
*Frequency converter control
*Motor power is 2.2KWFlat Braid Braiding Machine
*The flat braid braiding machine adopts frequency conversion split type
*It has the functions of stopping when the wire is broken, stopping when the meter is counted, and stopping when the oil is used out
*Equipped with a silencer, the sound is controlled below 80 decibels
*Each device is equipped with 13/17/19/21/25 spindles
Rewinding Machine for Flat Braid*The cable arranging device is used for left and right reversing
*It has the function of delayed automatic rewinding and meter-counting stop function
*Inverter control
*It can be used in conjunction with the flat braid braiding machine96 Carrier Single Decker Normal Speed Wire Braiding MachineBraiding diameter: 150-400mmRotation speed: 2.75r/minBraiding angle: 54°44′Pitch distance: 240-750mmPulling speed: 50-120M/HNo.of carrier: 96Motor: 11KwCompany Profile
We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.
Our ServiceFAQ1. How much time require to complete one set of machines?
A: Delivery time: 3 months
2..How we will assemble these parts in to machine?
A: After the production is completed, we need to simulate the installation of the equipment and shoot the installation tutorial video before delivery.
After the equipment is sent to our customer site, our customer only needs to install it step by step according to the installation tutorial video.
We need to know the following information to quote you the correct machinery:
1. What braiding diameter you need?
2. Wire diameter?
3. Application
Welcome to inquiry us!
