Hot Sale High Reliability Easy Spraying Wall Putty Plastering Machine Paint Sprayer

Product Description

Product Description

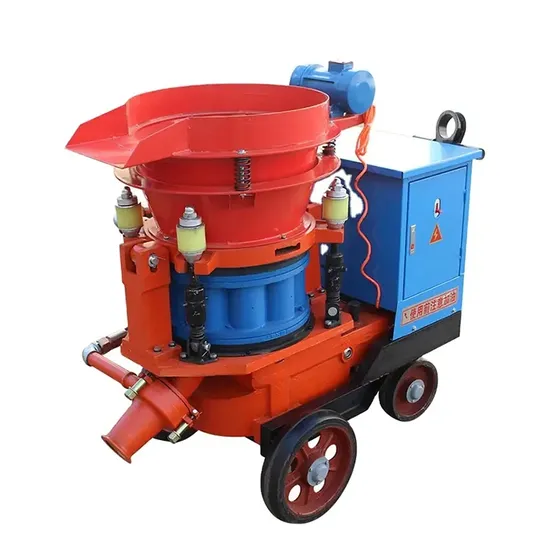

Shotcrete machine is a small size slope protection concrete refractory shotcrete machine is the use of air pressure in the machine to the dry/wet material through the hose to the water nozzle.PZ series electric dry powder shotcrete machine is a high yield, continuous feed dry powder shotcrete or refractory casting device.It is as comfortable in an underground mining environment as it is on a construction site.The sandblasting machine adopts rotor feeding system, which enables continuous operation, long service life and low maintenance cost.A variety of hoses and nozzles are available to meet various shotcrete requirements.
Features of small shotcrete machine:
1. Environmental:It can reduce the dust concentration around the machine and the spraying gun when the wet shotcrete machine work,so as to lower the harm to workers' health.
2. rebound less to strengthen sprayed layer.
3. It can greatly improve the spray quality and the uniformity of concrete--because the water & cement ratio is easy to control when wet Shotcreting, and the concrete curing degree is higher.
4.Unique vibrating hopper feeds the concrete into the dosing system smoothly.
5.Standardized dosing pump can add exactly concrete accelerator.
6. We can change the color according to your actual requirements.
7. Custom the voltage motor based on your country.
8 .The tread of mine rail wheel have 600mm or 900mm for your choice.
Product Parameters

SPECIFICATIONS FOR SHOTCRETE MACHINE
Model	PZ-3	PZ-5	PZ-6	PZ-7
Production capacity	3m3/h	5m3/h	6m3/h	7m3/h
The maximum transmission distance	200m	200m	200m	200m
Applicable material proportioning: cement/sa	1:3-5	1:3-5	1:3-5	1:3-5
Applicable materials water-cement ratio	<0.4	<0.4	<0.4	<0.4
The biggest bone size	10mm	15mm	15mm	20mm
Transporting pipe inner	42	51	51	51/64
Rotor block diameter	350mm	438mm	438mm	480mm
Working pressure	0.2-0.6MPa	0.2-0.6MPa	0.2-0.6MPa	0.2-0.6MPa
blast consumption	5-6m3/h	7-8m3/h	7-8m3/h	9-10m3/h
motor power	4KW	5.5KW	5.5KW	7.5KW
Level of voltage	380V,440V,660V,1140, 50Hz/60Hz
Weight	400kgs	700kgs	700kgs	800kgs

Detailed Photos
Different types of construction machinery:
Packaging & Shipping
FAQ
Q1: Are you factory or trade company?A1: We are factory. And we have ourselves trading company.Q2: Warranty terms of your machine?A2: One year warranty for the machine and technical support according to your needs.Q3: Will you provide some spare parts of the machines? A3: Yes, of course.Q4: What about the voltage of products??Can they be customized?A4: Yes, of course. The voltage can be customized according to your equirement.Q5: How long will you take to arrange production?A5: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 20-30 days.Q6: Can you accept OEM orders?A6: Yes, with professional design team, OEM orders are highly welcome.Q7 Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
