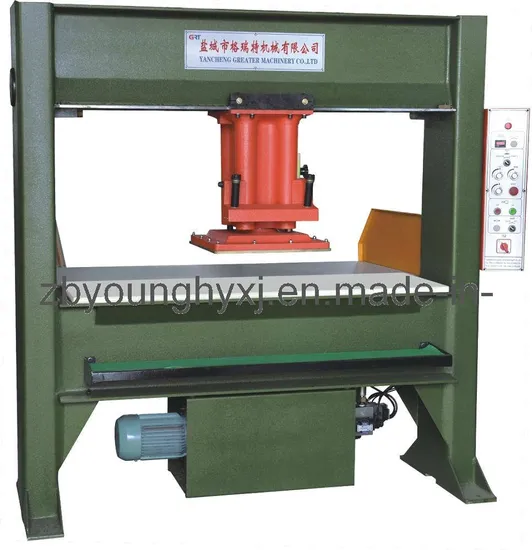

25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine/Die Cutting Machine

Product Description

25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine/Die Cutting Machine Features:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.

Main Technical specification
Model	GRT-T25
Maximum cutting force	25 T
Working table size	1600*500mm
Cutting head size	500*500mm
Adjustable stroke	5-150mm
Motor power	2.2KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine dimensions	2200*720*2000mm
G. W	1600kg

Machine configuration
Solenoid valve	Camel brand,made in TAIWAN
Oil pump	Camel brand,made in TAIWAN
Sealing ring	NOK brand,made in ITALY and Japan
Frequency converter	made in France
stroke switch,Intermediate relay	made in France

Please leave us a message if any ,model interested ,we will supply professional technology and most competitive price . Thank you in advance ! Detailed Photos
