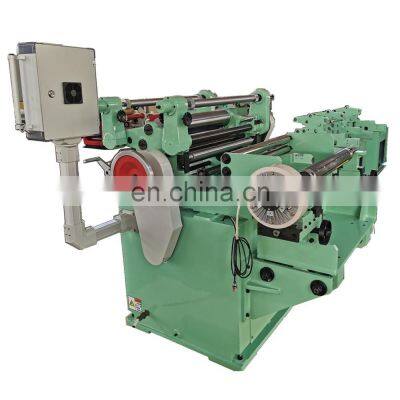

Aluminum foil high speed die cutting slitting machine

Product Description

Product Description
Aluminum foil high speed slitting machine PICTURE COMMODITY DESCRIPTION QUANTITY 500mm centers Surface Winding High Speed Slitting Machine Max unwinding diameter: 600mm 1 SET Maximum rewinding diameter: 420mm Put the reel diameter: 3in Rewinding diameter: 3in Roll surface width: 500mm Mechanical speed:≤180m/min Delivery time Maximum working width: 500mm Minimum slitting width: 15 mm 30 WORKING DAYSCorrection accuracy: ± 0.3mm cut copper foil/aluminum foil 0.01~0.35mm; Voltage : 3 phase 380V 60HZ Host Power: 4KW Total power: 6KW Dimensions (LxWxH): 2450 × 1950 × 1550mm One: equipment APPLICATION Equipment for slitting thickness 0.008----0.15mm paper or aluminum foil (corrosion foil) COPPER FOIL etc Two: main technical data1: Maximum diameter of raw material roll: ¢600mm2: Maximum width of raw material roll: 500mm3: Raw material roll inner diameter: ¢40~75mm4: Minimum width of finished product roll: 15mm5: Maximum outer diameter of finished product: Ø420mm6: Maximum number of cuts: 49 (standard machine with 20 sets blade)7: Outer reel outer diameter (retracting sleeve inner diameter): ¢76mm8: Number of simultaneous winding shafts: 2 (can be uniaxially wound)9: Maximum cutting speed(Material tensile strength is allowed, when the winding diameter reaches 270) 140m/min10: Main drive motor: 5.5kw11: Dimensions (length X width X height): 1170mmX1032mmX1283mm multifunction laminating and slitting machineFuncional characteristics:This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling,with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. Purpose:It is applicable for the vertical slitting tooling of industrial adhesive tape, cellophane tape, protective film,copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
