High Precision Metal Turning CNC Lathe Machine Vtc1250 Large Vertical Lathe Machine Turning Vertical CNC Lathe Machine Price

Product Description

Product Description
high precision metal turning cnc lathe machine VTC1250 large vertical lathe machine turning vertical cnc lathe machine price
Product ApplicationThis machine tool is an automatic CNC machining machine, which is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts, especially suitable for vehicle brake hubs, wheel drums, clutch pressure plates, flywheels Machining of parts such as shells.
Product main technical Specifications:
CNC PIPE THREADING LATHE INTRODUCTION This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch,module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on. FEATURES Big spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide way contact surface use Turcite B to maintain accuracy

SPECIFICATIONS	Units	VTC500	VTC650	VTC750	VTC850	VTC1000
Max. Swing diameter	mm	500	650	750	850	1000
Max. Turning diameter	mm	400	550	650	750	850
Spindle Model		A2-8	A2-8	A2-11	A2-11	A2-11
Diameter of spindle bearing	mm	120	120	180	180	180
Spindle speed range	rpm	50-1250	50-1250	50-1000	30-800	30-800
Spindle output torque	nm	350	475	715	890	890
Chuck diameter		12HYD	15HYD	21HYD	24HYD	32HYD
Turret type		8 Hor.8 position		8 /4 Hor.8 position / Ver.4 position		4
Turret spec		100	100	125	125	125
Tool size	mm	25/φ40	25/φ40	32/φ50	32/φ50	32/φ50
Turret travel X axis	mm	-325	-375	-425	-500	-600
Turret travel Z axis	mm	500	550	700	800	800
Distance from Bottom of turret to up of chuck	mm	0-500	0-550	0-700	0-800	0-800
X/Z linear rails		45 Roller	45 Roller	55 Roller	55 Roller	55 Roller
Diameter of X/Z screw	mm	φ40	φ40	φ50/φ40	φ50/φ40	φ50/φ40
X-axis rapid traverse	m/min	15	15	15	15	15
Z-axis rapid traverse	m/min	12	12	12	12	12
Cutting feeding	m/min	0.1-5000	0.1-5000	0.1-5000	0.1-5000	0.1-5000
X axis motor power/torque	Kw/nm	1.6/10	2.4/15	2.4/15	2.8/18	3.5/22
Z axis motor power/torque	Kw/nm	2.4/15	2.4/15	2.8/18	3.5/22	3.5/22
Main motor power/torque	Kw/nm	11/15- 140	15/18.5- 190	22/30- 286	30/37- 356	30/37- 356
Overall size (L*W*H)	m	1.8*1.8*2.5	1.95*1.85*2.65	2.3*2*3	2.5*2.25*3.15	2.6*2.35*3.15
Machine weight	kg	4200	5200	7200	9500	10500

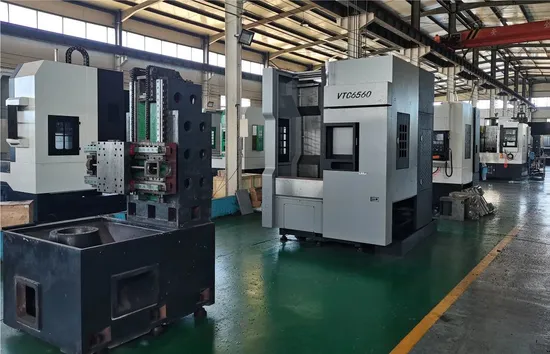

Detailed Photos
CNC : GSK980TC3, servo motor,Servo driver 320mm Manual 3 jaw chuck Manual tail stock 4 station electric tool turret Automatic lubrication system, cooling system.Lighting system Standard packing list, Tool box 380v 50hz 3phases Sample Products
