High Speed Fully Automatic Making Disposable Coffee Ice Cream Paper Cardboard Cup Production Line Machine for Hot Cold Drink Cup

Product Description

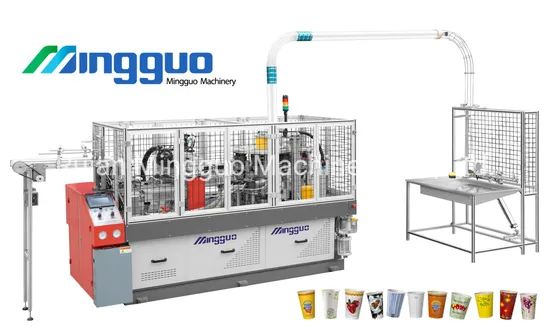

MG-G800 New High-Speed Paper Cup Forming Machine
MG-G800 high-speed paper cup forming machine, a latest developed high speed paper cup machine, achieves a stable cup making speed of 120-150pcs/min and in the actual development test, the maximum speed can reach more than 140pcs/min. We reversed the previous design and redesigned a more optimized mechanical transmission and forming system. Whole machine main transmission parts and helical gear transmission are more efficient and compact than those on C800.
Cup wall and the bottom of the cup are sealed with LEISTER bottom heaters and Even GREEN ultrasonic side welder imported from Switzerland and Taiwan. The whole cup making process is controlld and monitored by Delta inverter, Delta servo feeding, Delta PLC, Delta human-compoter interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc. Thereby improving the performance of the equipment and achieving fast and stable running. High degree of automatic and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.
Technical Specification

Model	MG-G800
Paper cups specifications	4-16oz 100-450ml(mold exchangeable) T:55-95mm H:60-135mm B:55-70mm
Paper specification	150-350 GSM single/double PE coated paper
Speed	120-150pcs/min
Voltage	220/380V
Full load power	12KW
Air supply requirement	Air pressure:0.5-0.8Mpa,Air Out-put:0.5cbm/min
Total Power	3000KG
Dimensions	Machine:2800x1500x1700mm Collection table:1300x1000x1700mm
Optional Equipmen	Paper bowl machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.
(NOTICE) Customization	Customizable Almost all of our paper container forming machines can be modified and customized for Paper cups and Paper bowls. Please let us know your cup/bowl specifications and any of the other requirements, we will offer the professional solution to you.

Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ
1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper
Warmly welcome to contact us
FOR more details and professional 1-to-1 service
