1-32 zone conventional fire detection control panel
Introduction:
The AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.
1 AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2 It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3 It has 2 level control mode by a lock
4 It has 24VDC and 5VDC power supply output.
5 It has FIRE and FAULT signal output.
6 It has 2 general sounders output.
7 Each zone has 1 circuit detectors input.
8 Each zone can be disable by a button.
9 It has RESET button to reset the panel.
10 It has SILENCE button to stop BUZZER and SOUNDERS.
11 It has EVACUATE button to start a manual fire alarm immediately.
12 It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
13 It has an optional GSM module for fire alarm by SMS.
14 It is economic, user-friendly and easy maintenance.
Parameters:

ITEM	1Zone panel	2Zone panel	4-8 Zone panel	12-32 Zone panel
Model No.	AW-CFP2166-01	AW-CFP2166-02	AW-CFP2166-04-8	AW-CFP2166-12-32
Power specification
Mains supply voltage	110VAC or 240VAC
Internal power supply	27.2VDC
Total output current limited	500mA @ 240VAC	500mA @ 240VAC	3A @ 240VAC	3A @ 240VAC
Main supply monitor for fault	Yes
Battery protection for low voltage	Yes
Batteries (default configuration)	12V2AH*2
Detector circuit specification
Number of circuit	1	2	4-16	4-32
Line fault monitor for open circuit	Yes
Line fault monitor for short circuit	Yes
Line fault monitor for detector removal	Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor
End of Line device	6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
Detector continuity diodes	Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault)
Call point resistor value	470 to 680 Ω, 0.225 or 0.5 watt
Maximum number of smoke/heat detectors per zone	20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts.
Maximum number of manual call points per zone	No limit
Sounder circuit specification
Number of general circuits	2
End of line resistor value	6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
Line fault monitor for open circuit	Yes
Line fault monitor for short circuit	Yes
Outputs fused AT	400mA
Maximum number of bells @ 20mA of each sounder output	20
Fuses
Battery fuse	1.5A F 20mm
Sounder outputs	500mA F 20mm
Fire and fault output
Output type	NC and NO relay
Maximum current	100mA
Connection block
Largest acceptable conductor size	2.5mm2
Smallest acceptable conductor size	0.75mm2
Size and weight
Dimensions(mm)	272*200*70mm	320*231*90mm	395X502X124	362X565X124
Weight (without batteries)	4kg	5kg	7kg	8kg
Weight (with batteries)	5.8kg	6.8kg	9.6kg	12.5kg

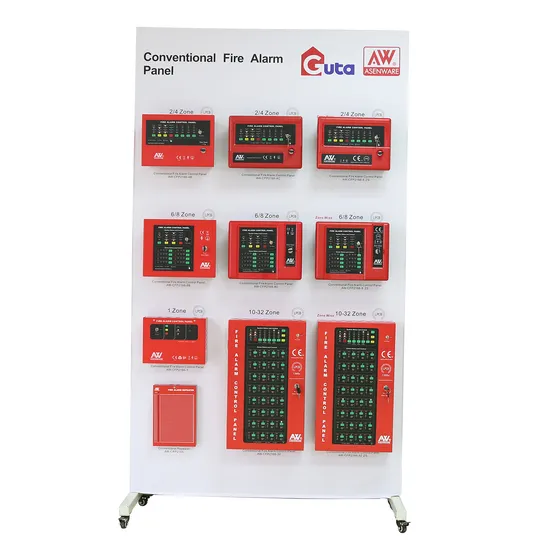

Show board for conventional fire alarm system
