Plastic Granulator Machine Recycling Heavy Duty Waste PE PP Extruder Pelletizing Machine Price Waste Plastic Single Stage Strand Pelletizer

Product Description

Product Description
pp/pe plastic granulator machine recycling waste plastic machines
The machine is suitable for the production of recycled plastic pellets such as waste PP, PE, PPR, ABS, EPS, etc. Its characteristics: no need to dry after crushing and washing, drying, granulation. High output, small degree of product discoloration. Feeding The system uses high speed blade cutting and forcing devices. The screw and barrel are treated with special surface treatment, which has the characteristics of wear resistance, good mixing effect and high output. The design of the exhaust or natural exhaust port can eliminate moisture and exhaust gas in the production process, make the discharge more stable, and the rubber particles are more compact, ensuring the excellent quality of the product.

The main technical parameters
1. Screw diameter: 125mm
2. Screw length: 2000mm
3. Exhaust type: single vent
4. Host drive power: 30KW
5. barrel heating power: 40KW
6. Number of barrel heating zones: four zones
7. Barrel screw material: 40Cr
technical parameters
8. Granulator configuration: 2.2kw electromagnetic speed control
9. Cooling tank configuration: iron water tank
10. Change the filter method: Electric lift
11. Heating ring: stainless steel heating ring
12. Gearbox gear: hard gear, high frequency quenching
13. Production: 100-150kg / hour
usage
Mainly used for processing waste plastic film (industrial packaging film, agricultural film, greenhouse film, beer bag, handbag, etc.), woven bags, agricultural convenience bags, basins, barrels, beverage bottles, furniture, daily necessities, etc.,
suitable for most Common waste plastics are plastic recycling machinery that is widely used and widely used by the waste plastics recycling industry.
the characteristics
1. All recycled materials can be produced after being classified, crushed and cleaned without drying or drying, drying, and dry and wet.
2, from raw material crushing, cleaning, feeding to pelleting are automated.
3, make full use of high-pressure friction uninterrupted heating system, automatic heating production, avoiding continuous heating, energy saving.
4. Adopt split automatic power distribution system to ensure safe and normal operation of the motor.

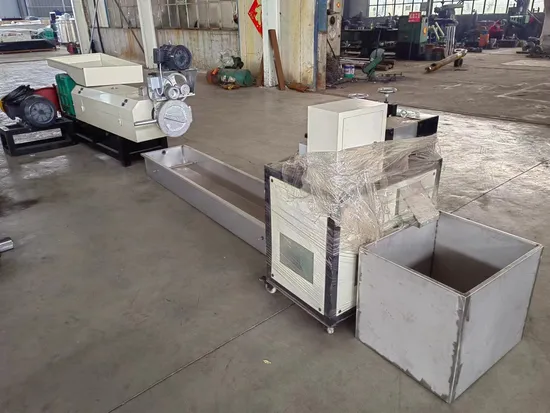

Detailed Photos
Water tank Hob cutter machine
Electric control box Hard gear reducer

Product Parameters
APPLY:PP/PE/ABS/PA/PC/ETC
CAPACITY:100-1000(KG/H)
POWER:22-150(KW)
QUALITY ASSURANCE:
1.ELEXTRICAL BOX : High-tech power distribution safe use.
2.HOPPER : Control extrusiton conditions,suitable for kinds of material processing.
3.EXHAUST : Safely purge air and control air pressure.
4.SCREEN CHANGER : Fast and easy,fast and fast.

model		SJK-125	SJK-150	SJK-180	SJK-200	SJK-220
Screw diameter	Host	125mm	147mm	177mm	197mm	217mm
	auxiliary	125mm	125mm	147mm	177mm	177mm
Motor power	Host	22KW	37KW	45KW	55KW	75KW
	auxiliary	11KW	15KJW	15KW	18.5KW	22KW
Rotating speed		60-65	60-65	60-65	55-60	50-55
productivity		100-150kg/h	150-220kg	200-300kg	300-400kg	500kg
weight		2850kg	3500kg	4250kg	5680kg	6880kg

Certifications
Packaging & Shipping
Company Profile
After Sales Service

before sales	24 hours online service .in time reply Any in Any inquiries will be replied within 12 hours offer professional machine details and information technology knowledge share .
on sale	Protect the client payment security . reasonable price and ensure quality . send machine pictures , videos as client need and let client know machine more better
after sales	Fast delivery and test and adjust machine working well before delivery Supply manual book and technical support in order to use well offer install pictures step by step or videos and dispatch the engineer Guarantee time is one year . during one year . offer the spare parts

FAQ

MOQ	Any quantity is acceptable for your order. And the price is negotiable for large quantity
Voltage	110V 220V 380V 400V 50HZ/60HZ Single /three phase custom-made voltage
Guarantee	Quality guarantee term is for one year. During one year .offer spare parts for free
Payment	T/T , L/C Credit card .Alipay wechat , Western Union . cash E-checking , MoneyGram.RMB
Documents offer	By exoress: express waybill By air:airway bill By sea:B/L .commercial invoice . packing list .CO
Address	laizhou city.shandong province .China. Welcome to our company
Contact	online chat or send inquiry to me .
