CATV Trunk Cable For Signal Transmission QR500 without Messenger Welded Aluminum Tube Cable

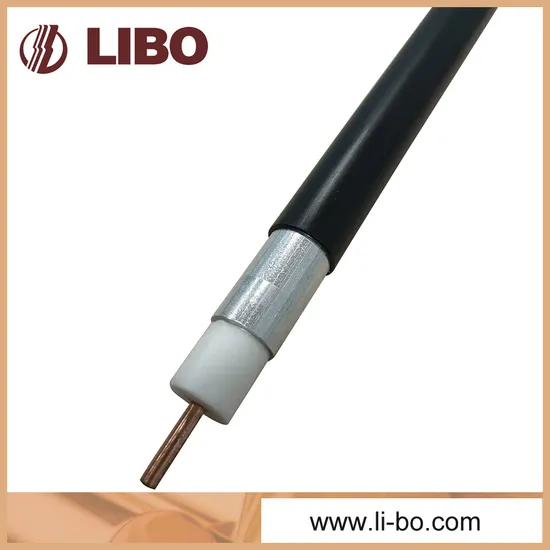

QR500 JCA Welded Alumium Trunk Cable
Welded aluminum tape as outer conductor
High quality PE outer jacket
Asphalt or flooding compound is available
Product description:
The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, welded aluminum sheet as shield. Medium density PE is used as jacket material.
Applications:
QR500JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Physical dimensions
component	inches	mm
Inner conductor	0.109	2.77±0.3
diameter over dielectric	0.450	11.43
diameter over outer conductor	0.4740	12.04
Outer conductor thickness	0.012	0.305
Diameter over jacket	0.560	14.22
Jacket wall thickness	0.030	0.76

Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 300lbs /136kgf
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Maximum D.C resistance @68OF:
Structure Return loss: 24dB
Inner conductor: 1.35ohms/1000ft (4.43ohms/km)
Outer conductor: 0.37ohms/1000ft (1.21ohms/km)
Loop: 1.72 ohms/1000ft. (5.64 ohms/km)
Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.16	0.52
55MHZ	0.54	1.77
83MHZ	0.66	2.17
211MHZ	1.09	3.58
250MHZ	1.20	3.94
300MHZ	1.31	4.30
350MHZ	1.43	4.69
400MHZ	1.53	5.02
450MHZ	1.63	5.35
500MHZ	1.73	5.67
550MHZ	1.82	5.97
600MHZ	1.91	6.27
750MHZ	2.16	7.09
865MHZ	2.34	7.68
1000MHZ	2.52	8.27

Packing:
