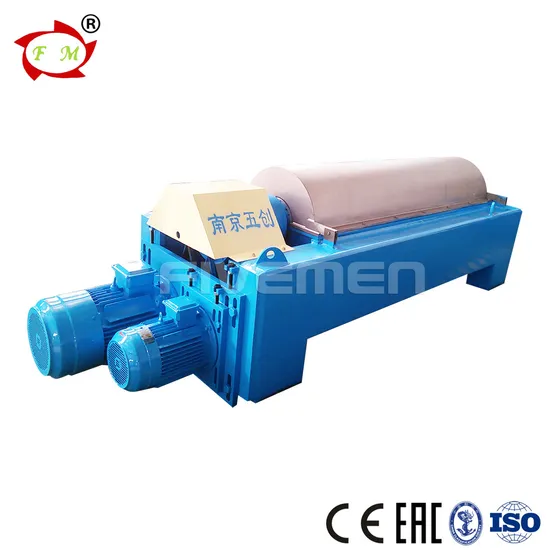

Water Oil & Waste Oil Separation Decanter Centrifuge

Product Description

Product Description
The LW two phase drilling mud decanter centrifuge is manily used to dehydration for the all kinds of sludge and
the drilling mud. The LWS decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive
oil separation ,) animal oil(such as fish oil, restaurant garbage ect) coal tar dehydration and slag,adapted to the
different viscosity and water content in coal tar separation (emulsion), after separating the tar reach national
standard.
Reference Standard of Design, Manufacture and Test
1. Major national standards in machinery industry
JB/T502-2004 Solid-bowl Scroll Discharge Centrifuge
JB/T9095-1995 Conventional nondestructive testing methods for forging and weldment of centrifuge and
separator-Technical specificatio
2.Major national standard
GB10894-89 Determination of sound power level for noise emitted by centrifuge separator and filter-Engineering
Main Features:
The decanter centrifuge can be adjusted to suit individual requirements by varying:
1. Bowl speed to ensure the exact relative centrifugal force required for optimized separation.
2. Differential speed, for optimized balance between liquid clarity and solids discharge capacity.
3. Pond depth in the bowl for optimized balance between liquid clarity and solid dryness.
Product Application : The decanter centrifuge can be adjusted to suit individual requirements by varying:
1. Bowl speed to ensure the exact relative centrifugal force required for optimized separation.
2. Differential speed, for optimized balance between liquid clarity and solids discharge capacity.
3. Pond depth in the bowl for optimized balance between liquid clarity and solid dryness.

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed	Main Power(Kw)
			(r/min)
LW180	180	2.5-720	6000	3-5.5
LW260	260	3.0-4	5000	7.5-11
LW355	355	2-4.5	4000	1-30
LW420	420	3-4.1	3600	18.5-37
LW450	450	2-4.4	3600	18.5-37
LW480	480	2-4.2	3200	18.5-45
LW500	500	2-4.2	3200	18.5-55
LW530	530	2-4.0	3200	22-55
LW580	580	2-4.0	2800	30-55
LW620	620	2-4.0	2800	37-110
LW760	760	2-3.5	2500	55-132
Note: In case of differences between the table and the user manual, the latter shall prevail.
