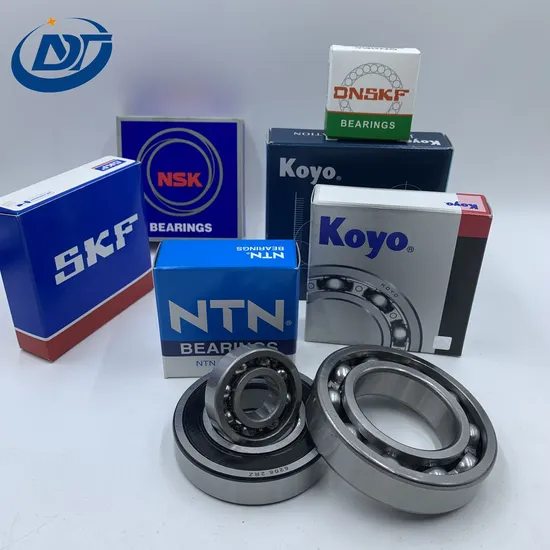

Original Steel Deep Groove Ball Bearing for Machine Parts Bearing Wheel Bearing Motor Bearings Mini Ball Bearing 6305/6003/6208 From China Manufacturing Plant

Product Description

Production Descriptions:1.Model: 6003/6005/6208
2.Seals: Open/Single seal/Double seals
3.Size: 17*35/*10mm
4.Weight: 0.04kg
5.Precision: P6/P0/P5
6.Limit speed: 17000-21000 r/min
7.Place of original: Germany
8.Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Product parameters

Deep Groove Ball Bearing 6000 Series
Bearing No.	Shape Dimensions (mm)			Basic Load Rating (KN)		Max Speed (RPM)		Weight(kg)
	Bore	Outer	Width	Dynamic Cr	Static Cor	Grease lubricant	Oil lubricant
	d	D	B
6000 Series
606	6	17	6	1.95	0.72	30000	38000	0.0057
607	7	19	6	2.88	10.80	28000	36000	0.0071
608	8	22	7	3.32	1.38	26000	34000	0.011
609	9	24	7	3.35	1.40	22000	30000	0.014
6000	10	26	8	4.58	1.98	20000	28000	0.018
6001	12	28	8	5.10	2.38	19000	26000	0.02
6002	15	32	9	5.58	2.85	18000	24000	0.026
6003	17	35	10	6.00	3.25	17000	22000	0.036
6004	20	42	12	9.38	5.02	15000	19000	0.069
6005	25	47	12	10.10	5.85	13000	17000	0.075
6006	30	55	13	10.18	6.91	10000	14000	0.116
6007	35	62	14	12.47	8.66	9000	12000	0.155
6008	40	68	15	13.10	9.45	8500	11000	0.185
6009	45	75	16	16.22	11.96	8000	10000	0.231
6010	50	80	16	16.94	12.95	7000	9000	0.250
6011	55	90	18	23.28	17.86	7000	8500	0.362
6012	60	95	18	24.35	19.35	6300	7500	0.385
6013	65	100	18	24.66	19.74	6000	7000	0.410
6014	70	110	20	29.68	24.20	5600	6700	0.575
6015	75	115	20	30.91	26.06	5300	6300	0.603
6016	80	125	22	36.57	31.36	5000	6000	0.921
6017	85	130	22	39.04	33.75	5000	6000	0.848
6018	90	140	24	44.63	39.16	4800	5600	1.103
6019	95	145	24	44.45	39.16	4500	5300	1.156
6020	100	150	24	49.58	44.08	4300	5300	1.174
6021	105	160	26	55.32	49.77	4000	4800	1.520
6022	110	170	28	62.99	57.39	3800	4500	1.891

Deep Groove Ball Bearing 6200 Series
Bearing No.	Shape Dimensions (mm)			Basic Load Rating (KN)		Max Speed (RPM)		Weight(kg)
	Bore	Outer	Width	Dynamic Cr	Static Cor	Grease lubricant	Oil lubricant
	d	D	B
6200 Series
623	3	10	4	0.5	0.2156	38000	48000	0.0015
624	4	13	5	1.15	0.40	36000	45000	0.0032
625	5	16	5	1.88	0.68	32000	40000	0.0048
626	6	19	6	2.8	1.05	28000	36000	0.0075
627	7	22	7	3.28	1.35	26000	34000	0.012
628	8	24	8	3.35	1.40	24000	32000	0.017
629	9	26	8	4.45	1.95	22000	30000	0.019
6200	10	30	9	5.1	2.38	19000	26000	0.028
6201	12	32	10	6.82	3.05	18000	24000	0.034
6202	15	35	11	7.65	3.72	17000	22000	0.043
6203	17	40	12	9.58	4.47	16000	20000	0.062
6204	20	47	14	9.88	6.20	14000	18000	0.102
6205	25	52	15	10.78	6.98	12000	16000	0.120
6206	30	62	16	14.97	10.04	9500	13000	0.190
6207	35	72	17	19.75	13.67	8500	11000	0.270
6208	40	80	18	22.71	15.94	8000	10000	0.370
6209	45	85	19	24.36	17.71	7000	9000	0.380
6210	50	90	20	26.98	19.84	6700	8500	0.450
6211	55	100	21	33.37	25.11	6000	7500	0.603
6212	60	110	22	36.74	27.97	5600	7000	0.789
6213	65	120	23	44.01	34.18	5000	6300	0.990
6214	70	125	24	46.79	37.59	4800	6000	1.084
6215	75	130	25	50.85	41.26	4800	5600	1.171
6216	80	140	26	55.04	45.09	4500	5300	1.448
6217	85	150	28	64.01	53.28	4300	5000	1.803
6218	90	160	30	73.83	60.76	4000	4800	2.172
6219	95	170	32	84.83	70.85	3800	4500	2.620
6220	100	180	34	93.95	79.35	3600	4300	3.189
6221	105	190	36	102.30	89.59	3400	4000	3.782
6222	110	200	38	110.82	100.43	3200	3800	4.421

Bearing No.	Shape Dimensions (mm)						Basic Load Rating (KN)					Max Speed (RPM)				Weight(kg)
	Bore			Outer diameter		Width	Dynamic Cr		Static Cor			Grease lubricant	Oil lubricant
	d			D		B
6300 Series
634	4			16		5	1.447		0.745			32000	40000			0.0049
635	5			19		6	2.161		1.163			28000	36000			0.0073
6300	10			35		11	5.88		3.47			20000	26000			0.054
6301	12			37		12	7.48		4.65			17000	22000			0.058
6302	15			42		13	8.80		5.43			16000	20000			0.082
6303	17			47		14	10.45		6.56			15000	19000			0.110
6304	20			52		15	12.26		7.81			13000	17000			0.140
6305	25			62		17	17.22		11.39			10000	14000			0.220
6306	30			72		19	20.77		14.17			9000	12000			0.330
6307	35			80		21	25.66		17.92			8000	10000			0.410
6308	40			90		23	31.35		22.38			7000	9000			0.600
6309	45			100		25	40.66		30.00			6300	7500			0.770
6310	50			110		27	47.58		35.71			6000	7000			1.030
6311	55			120		29	55.05		41.91			5600	6700			1.367
6312	60			130		31	62.88		48.60			5000	6000			1.710
6313	65			140		33	72.21		56.68			4500	5300			2.100
6314	70			150		35	80.10		63.48			4300	5000			2.550
6315	75			160		37	87.25		71.67			4300	5000			3.046
6316	80			170		39	94.57		80.35			4000	4800			3.609
6317	85			180		41	102.05		89.52			3800	4500			4.284
6318	90			190		43	110.81		100.76			3600	4300			4.979
6319	95			200		45	120.51		113.75			3300	3900			5.740
6320	100			215		47	133.06		131.18			3200	3700			7.090
Bearing No.		Shape Dimensions (mm)						Basic Load Rating (KN)			Max Speed (RPM)				Weight(kg)
		Bore	Outer diameter		Width			Dynamic Cr		Static Cor	Grease lubricant			Oil lubricant
		d	D		B
6400 Series
6410		50	130		31			92		55	5300			6300	1.85
6411		55	140		33			77.44		67.71	5000			6000	2.316
6412		60	150		35			83.94		70.30	4800			5600	2.811
6413		65	160		37			90.88		78.33	4500			5300	3.342
6414		70	180		42			107.31		99.53	4000			4800	4.896
6415		75	190		45			153		114	3800			4500	5.57
6416		80	200		48			164		125	3400			4000	6.63
6417		85	210		52			165		136	3200			3800	8.12
6418		90	225		54			193		158	3000			3600	9.47
6419		95	240		55			204		171	3400			3600	13.4
6420		100	250		58			224		195	2600			3400	12.8
6422		110	280		65
