Szgh Mini CNC Router Machine 4 Axis USB Control Small Atc CNC Milling Machine for Metal Wood

Product Description

Product Description
Szgh Mini CNC Router Machine 4 Axis USB Control Small ATC CNC Milling Machine for Metal Wood

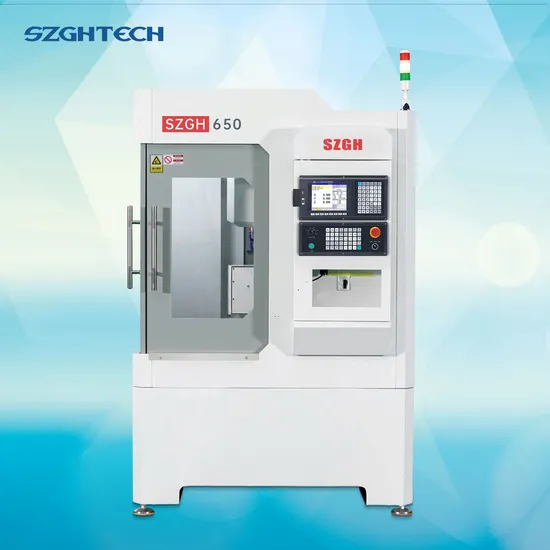

SZGH-540 SZGH-650 CNC 5 Axis milling machine is On the basis of SZGH-540 or SZGH-650, a 4-axis rotary table or a 5-axis rotary table can be added to realize the function of completing multi-faceted three-dimensional processing in one clamping.It is widely used in mold making and other functions that require drilling and tapping or three-dimensional carving on multiple surfaces.Among them, SZGH-540 can support up to 8 station tool magazines on the basis of adding external shafts, and SZGH-650 can support up to 10 station tool magazines on the basis of machining external shafts.
Standard Configuration

Project		SZGH-540	SZGH-650
Processing capacity	Max. drilling diameter	Aluminum φ14mm/ Steel φ10mm	Aluminum φ40mm/ Steel 30mm
	Max. Tapping Diameter	Aluminum m10mm/ Steel m8mm	Aluminum m25mm/ Steel m20mm
	Max. milling cutter diameter	φ60mm	φ100mm
	Max Spindle speed	5000rpm/9000rpm/30000rpm	6000rpm/24000rpm
	Handle Type	BT30	BT40/BT30
	Magazine capacity	6 gangs/8 magazines	10 gangs/12 magazines
	Repeatability	0.01mm	0.01mm
	Surface engraving accuracy	±0.06mm/±0.01mm	±0.02mm/±0.01mm
workbench	Distance from table surface to spindle end	Minimum 150mm Maximum 350mm	Minimum 150mm Maximum 450mm
	Effective stroke of working surface	500mm*400mm	600mm*500mm
Travels	X-axis effective travel	400mm	500mmm
	Y-axis effective travel	500mm	600mm
	Z-axis effective travel	200mm	300mm
Feed	X-axis rapid traverse	30m/min	30m/min
	Y-axis rapid traverse	30m/min	30m/min
	Z-axis rapid traverse	25m/min	25m/min
	Various cutting suggested speeds	10m/min	10m/min
Spindle	Max.Spindle Speed	5000rpm/9000rpm/30000rpm	6000rpm/24000rpm
	Spindle Motor Power	2.6km/3.7kw/4.5kw	3.7km/5.5kw/7.5kw
	Spindle type	mechanical spindle/ electric spindle	mechanical spindle/ electric spindle
	Spindle taper	BT30	BT40/BT30
Dimensions	Dimensions	1350*1050*2050mm	1650*1800*2450mm
	Total Weight	1900kg	2900kg

Machine tool specifications and component items		SZGH-540	SZGH-650
Part Specifications	Screw	25mm Taiwan precision p grade	32mm Taiwan precision p grade
	Guide rail	25mm Taiwan Precision C3 Grade	32mm Taiwan Precision C3 Grade
	Spindle	BT30 spindle	BT40/BT30 spindle
	Feeding servo	X.Y750kw,&1.2kW	X.Y1.2kw,&1.5kW
	Spindle servo motor	2.6kW/3.7kw/4.5kw	3.7kW/5.5kw/7.5kw
	Tool magazine	6 /8 magazines	10/12 magazines
	Base form	1200kg Heavy-duty anti-deformation patented base	1800kg Heavy-duty anti-deformation patented base
Optional 4 axis	4 axis center height	125mm/170mm	125mm/170mm
	4 axis motor power	0.75kw/1.2kw	0.75kw/1.2kw
	4 axis system	SZGH	SZGH
	4 axis servo	SZGH	SZGH
Optional 5 axis	5 axis center height	160mm	160mm
	5 axis motor power	0.4kw/0.75kw	0.4kw/0.75kw
	5 axis system	SZGH	SZGH
	4 axis servo	SZGH	SZGH

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail. Machine Features
1. Automatic Tool Change (ATC):
This is a very common and important feature in milling machines. It allows the machine to automatically switch between different tools to suit different machining requirements and workpiece profiles. Automatic tool change systems increase productivity and reduce manual intervention. 2. NC Programming:
Milling machines usually use NC programming to control and guide the movement of the machine. NC programming uses specialized programming languages such as G-code to describe parameters such as tool motion path, machining depth, feed rate, etc. This type of programming requires a certain level of expertise and skills on the part of the operator. 3. High-Speed Machining:
High-speed machining is an advanced milling technology that uses high-speed rotating tools and precise control systems to machine workpieces quickly and precisely. High-speed machining can improve production efficiency, reduce processing time, and obtain higher surface quality. 4. Tool Path Optimization:
In milling machine machining, the selection and optimization of toolpaths is crucial for machining quality and efficiency. Toolpath optimization algorithms can help determine the optimal cutting path to minimize machining time, reduce cutting forces and cutting vibrations, and maintain good surface quality. 5. Automatic Measurement and Compensation:
This function allows the milling machine to automatically measure the dimensions of the workpiece during machining and compensate in real-time based on the measurement results. This helps to maintain the accuracy and consistency of the workpiece and reduces errors caused by tool wear or thermal deformation of the machine. Features of Matched Controller GH-1000MC (It can be matched with one of the A or B panels, and the B panel is shown in the picture.)
Versatile products: Our 5-axis milling machine controllers are suitable for making a wide range of small products. From precision parts to model samples, from engraving artwork to prototyping, you name it, our controllers have you covered Easy operation: Even if you have no contact with our 3-axis milling machine controller, you don't have to worry about operation. Our controllers offer an intuitive and user-friendly interface with easy-to-follow instructions to help you get started quickly. We also provide a professional technical support team to answer your questions at any time. Precision and reliability: Our controllers use advanced technology to ensure high accuracy and stability. Whether you're making meticulous engravings or precision cuttings, our controllers will ensure that every operation is accurate and for you Customization options: Our 5-axis milling machine controllers offer a variety of customization options to meet your specific needs. From machining parameters to toolpaths, we can individually configure your milling process to make your milling process more efficient and flexible. Optional Spare Part

The high-rigidity cast base and gantry provide confidence of perfect stability and high precision when operating.	5.5 kW, 6000 RPM spindle motor with BT40 shank, equipped with a 12-station linear pneumatic tool changer, which can change tools more efficiently.	The drive structure uses high-precision screw guides and a fully enclosed protective cover for three axes prevents cutting fluid and iron chips from entering the screw guides during machining, reducing the workload of maintenance.
Size 600mm*500mm T-slot table for handling the workpiece up to 200kg.	Carousel type tools changer, tooling number up to 8 pcs, automatic exchange.	Equips with auto lubrication system to ensure transmission system smooth and long-term running.

Application
Scope Of Application
1. 8-Station Processing:
Copper, iron, aluminum, and stainless steel bars within 600mm*500mm.
2. Drilling:
Stainless steel parts within 30mm.
3. Tapping:
Stainless steel parts within 20mm.

Company Profile
1. Professional Supplier: We are a supplier focusing on CNC systems, machines, and robotic arms. With years of industry experience and a professional team of engineers, we are committed to providing high-quality automation equipment and solutions.
2. Global sales network: Our products are sold all over the world, and we have established a solid cooperative relationship with global customers. No matter what country or region you're in, we offer comprehensive support and services to ensure your automation needs are met.3. Extensive experience: We have extensive experience in providing customized automation solutions to customers in many industries. Whether in manufacturing, the automotive industry, or aerospace, we offer reliable and innovative solutions tailored to the specific needs of our customers.4. High-Quality Products: Our products are known for superior quality and reliability. We work with world-renowned suppliers to select high-quality components and materials to ensure that the automation equipment we supply excels in terms of performance and durability.5. Customer satisfaction: Customer satisfaction is the goal that we always pursue. We are committed to understanding the needs of our customers and providing a full range of technical support and after-sales service.
Packaging & Shipping
1) Efficient delivery: Our company is based on efficient supply chain management and is able to deliver timely goods to ensure that customers receive the required equipment and parts on time. We understand the urgent need for fast delivery and are therefore committed to reducing lead times so that customers can quickly start and improve their lives.2) Timely after-sales support: We know the after-sales service.3) Customer Satisfaction: Our company takes customer satisfaction as its core value. We always pay attention to the needs and feedback of our customers and strive to exceed expectations to ensure that customers are satisfied with our products and services. We actively listen to our customer's opinions and suggestions and continuously improve our products and services to meet the needs of customers.
FAQ
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independent technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4. What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5. What services can we provide?
1) Accepted Payment Currency: USD, EUR, CAD, HKD, CNY;
2) Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow;
3) Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian,
Korean, Italian, and so on.

6. What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

7. How can I choose the most suitable machines?
Please tell me your specifications, and we can choose the best model for you, or you can choose the exact model.
You can also send us the products drawing, we will choose the most suitable machines for you.

8. Does your cnc support booting logo exchange?
Yes, no problem.
