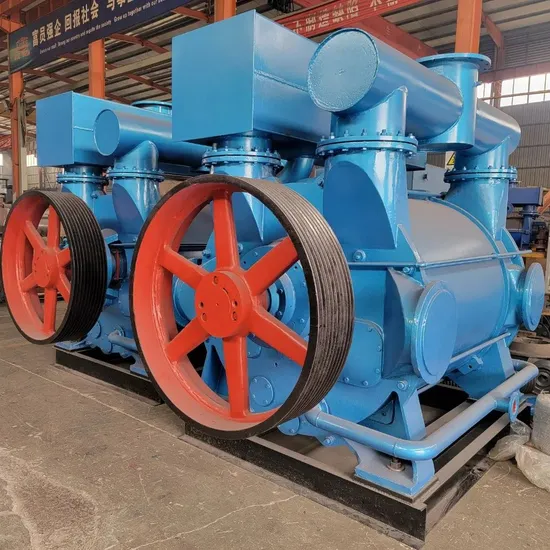

2be Series Water Ring Vacuum Pump Vacuum Degree High Power Consumption Low

Product Description

Product Description
2BE series water ring vacuum pump and compressor, based on many years of scientific research results and production experience, combined with the international advanced technology of similar products, developed high efficiency and energy saving products, usually used for pumping no solid particles, insoluble in water, no corrosion gas, in order to form a vacuum and pressure in a closed container. By changing the structure material, it can also be used to suck corrosive gas or to use corrosive liquid as working fluid. Widely used in papermaking, chemical, petrochemical, light industry, pharmaceutical, food, metallurgy, building materials, electrical appliances, coal washing, mineral processing, chemical fertilizer and other industries.
This series of pumps uses the single stage single action structure, has the advantages of simple structure, convenient maintenance, reliable operation, high efficiency and energy saving, and can adapt to large displacement, load impact fluctuation and other harsh conditions.
The key components, such as the distribution plate, impeller and pump shaft, have been optimized to simplify the structure, improve the performance and achieve energy saving. The welding impeller is used, the blade is pressed and formed once, and the shape line is reasonable; Hub processing, fundamentally solve the dynamic balance problem. Impeller and pump shaft are fitted with hot filling interference, reliable performance. It runs smoothly. After the impeller is welded, the whole is subjected to good heat treatment, and the blade has good toughness, so that the impact resistance and bending resistance of the blade can be fundamentally guaranteed, and it can adapt to the bad working conditions of load impact fluctuation.
2BE series pump, with air and water separator, multi-position exhaust port, pump cover is provided with exhaust valve overhaul window, impeller and distribution plate clearance through positioning bearing gland at both ends of the adjustment, easy to install and use, simple operation, easy maintenance. Pump structure The performance curve of this series of pumps is measured under the following working conditions: the suction medium is 20°C saturated air, the working liquid temperature is 15°C, the exhaust pressure is 1013mbar, and the deviation of soil is 10%.
Structure declaration 2BEA-10-25 Structure diagram
1.Flat key 2. Shaft 3. Oil deflector 4. Bearing cap 5. Bearings 6. Bearing bracket 7.Brasque cover
8.Brasque body 9. Brasque ring 10. Brasque 11.Valve plate 12. Valve block
13.Front distribution plate 14.Pump body 15. Impeller 16. O seal ring.
17.Back distribution plate 18. Side cover. 19. Flat key 20. Axle sleeve 21. Elastic collar
22.Water retaining ring 23. Adjusting washer 24. Rear bearing body 25. Bearing screw cap
26.Bearing 27. Bolt
2BEA-30-70 Structure diagram 1.Flat key 2. Shaft 3. Oil deflector 4. Front bearing retainer 5. Front bearing body
6. Front bearing inner cover 7. Front side cover 8. Brasque cover 9. Brasque body 10. Brasque ring
11. Brasque 12. Front distribution plate 13. Pump body 14. Impeller 15. O seal ring
16. Valve block 17. Valve plate 18. Back distribution plate 19. Axle sleeve 20. Flat key
21. Back side cover 22. Water retaining ring 23. Rear bearing inner cover 24. Bearing
25. Adjusting washer 26. Oil block 27. Rear bearing outer cover 28. Back bearing body
29. Oil baffle disc 30. Elastic retainer or circular spiral
Product Parameters

Model		2BEA SERIES
Minimum suction absolute pressure (hPa)		33-160
Suction intensity(m³/min)	Absolute inhalation capacity 60hPa	3,95-336
	Absolute inhalation capacity 100hPa	4.58-342
	Absolute inhalation capacity 200hPa	4.87-352
	Absolute inhalation capacity 400hPa	4.93-353
Max. shaft power(kw)		7-453
Motor power(kw)		11-560
Speed(rpm)		197-1750
Weight(kg)		235-11800
Size		795*375*355mm-3185*2110*2045mm

Model		2BEC SERIES
Minimum suction absolute pressure (hPa)		160
Suction intensity(m³/min)	Absolute inhalation capacity 60hPa	63-1700
	Absolute inhalation capacity 100hPa	64-1738
	Absolute inhalation capacity 200hPa	65-1785
	Absolute inhalation capacity 400hPa	67-1800
	Absolute inhalation capacity 550hPa	68-1830
Max. shaft power(kw)		61-2100
Motor power(kw)		75-2240
Speed(rpm)		105-610
Weight(kg)		2930-57500
Size		2102*1320*1160mm-5485*3560*3400mm
