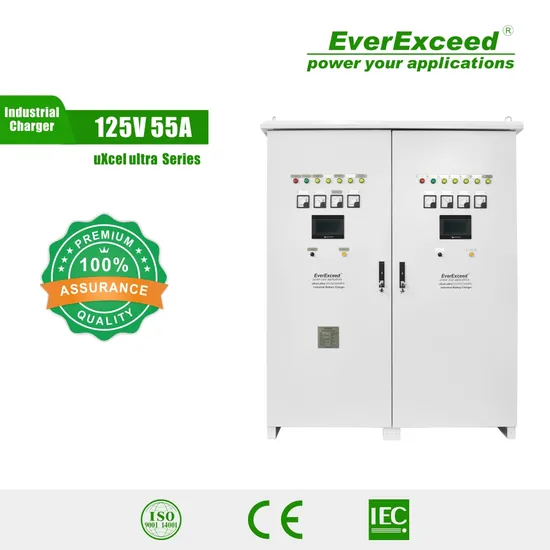

Everexceed Uxcel Ultra Series 125V55A Redundancy Rectifier Battery Charger

Product Description

Product Description
uXcel Ultra Series 125V55A Redundancy Rectifier Battery Charger
The EverExceed uXcel range industrial battery charger is the flagship charger of EverExceed Industrial Power solutions. It integrates proven design topology with the latest advanced digital control technology to control the thyristor bridge rectifier and provides the most reliable and trouble-free performance in any electrical and industrial environments.
Our Advantages
Key features:

Large LCD display	Leading Technology	High Reliability and High MTBF
User friendly operation with large LCD display, optional touch screen with the choices of 8 languages ensure easy maintenance and operation. Smart communication and Remote Monitoring.	The embedded micro-computer controller processes signals 10 times faster than standard analog methods.	Fully automatic battery management with "four remote" functions meeting requirements of untended duty control.
Isolation transformer	Flexible maintenance and Reduced MTTR	Long design life up to 20+years
Filter more than 3 harmonics in the power grid interference to the system equipment, while strengthening the operation security of the system.	The design make it easy for front-access to all vital modules modules of the charger Versatile constant voltage and constant current charging modes Smart communication and Remote Monitoring through isolated RS232, RS485, Ethernet. Full data logging.	System design life up to 20+ years in continuous operation under the condition of appropriate maintenance.
Flexibly customized	Ruggedized solutions	Complete power protection solutions
Power solutions to perfectly meet the specific requirements of customer's industrial applications.	To withstand harsh environments,extreme temperatures, humidity, dust and vibrations etc. Up to IP54 protection.	Including switchgear, DC distribution, monitoring suite.

Applications
Recent projects:
Product Parameters
Technical specifications:

Nominal Voltage	12V	24V	48V	110V	220V	400V
Nominal Current	25-1500A	25-1500A	25-1500A	16-1500A	16-1500A	16-1000A
Input Supply	Single phase 120V/220V/230V/240V, three phase 208V/380V/400V/415V/480V
Input Voltage/Frequency Tolerance	± 10% , 50/60Hz ± 5%
Output Voltage	1.8-18V	3.6-36V	7.2-72V	16.5-165V	33-330V	60-600V
Voltage Ripple	<2% specified full load and without battery connected.
Static Voltage Regulation	± 1% for 0-100% load variation, ± 10% AC input voltage variation and 5% AC input frequency variation
Dynamic Voltage	5% for load variation of 10% to 100% or 100% to 10%
Current Regulation	± 1%
Protection	Input Circuit Breaker, Charger Output Fuse/Circuit Breaker*, Charger Current
	Limit, Dual Battery Current Limit, AC Surge Suppression*, Short Circuit Protection, Reverse Battery Polarity Protection, Phase lost protection*
Alarms	Charger Fail, DC High, Under/Over Voltage Trip, Earth Fault*, Low Electrolyte,Battery Disconnected*, Battery Over Temperature*, Blown Fuse*, Common Alarm Relay, Common Alarm Buzzer( All alarms are user programmable )
Metering	Charger Voltage, Charger Current, Load Voltage, Load Current, Battery Charge/Discharge Current, Battery Temperature*, Battery Capacity Ratio( Meter accuracy 1% )
Options	DC Voltage Regulator, TCP/IP adaptor, Triphase control and shot , Cabinet lamp, Temperature and humidity controller, DC distribution board
Physical	Wall mount or free standing powder coated metal cabinet ( Dimensions depend on charger output rating and associated battery requirements )
Environmental	-10 to 50ºC, up to 95% humidity
Operating Altitude (m)	3000 (with out derating)
Communication Interface	RS232/RS485 Modbus, TCP/IP Ethernet (optional)
DC Meter Display (Optional)	For display the voltage and current of charger on the panel
MTBF / MTTR	100,000 Hours / 4 Hours
Efficiency	80 to 93% depending on nominal voltage and power rating
Temperature Compensation*	Programmable 3 - 6 mV / Cell / °C
Audible Noise	<60 Db
Limp Home Feature	Continuous operation in the event of control failure
Revert to Factory Settings	Reinstates all original factory settings
System	SCR full-bridge, Intelligence charging management, Fast acting fuse
