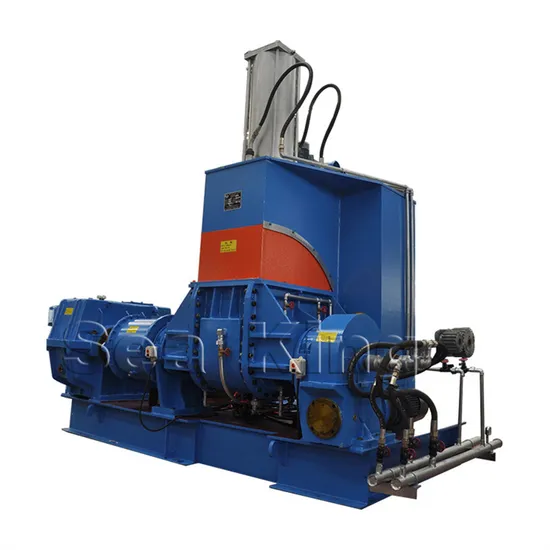

Pressurized Tilting Rubber Internal Dispersion Kneader

Pressurized Tilting Rubber Internal Dispersion Kneader

US$20,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
X(S)N-75X30
Control Type
PLC
Automatic Grade
Automatic
Power Source
Electric
Type
Rubber Mixer
Application
Plasticating Mixing Rubber Plastic
Heating Method
Steam Oil Electricity Heating
Rotors
Abrasion Resistant Hard Alloy,Plated Hard Chromiu
Reducer
Hardened Tooth-Surface
Bearing
Roller Bearing
Safety-System
with an Emergency Brake Device, Emercency Buttons.
Feeding Mode
Rear or Front (Optional)
Transport Package
Wooden Packing
Specification
3330X2620X3340MM
Trademark
SEAKING
Origin
China
HS Code
8477800000
Production Capacity
30sets Per Month

Packaging & Delivery

Package Size
30.00cm * 20.00cm * 20.00cm
Package Gross Weight
12000.000kg

Product Description

Product Parameters Rubber kneader mixer is applicable for plasticating and mixing rubber and plastic,as well as applicable for mixing and keading sticky materials.
This machine is widely tyre factory and Rubber, TPR,EVA,Rubber sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord,Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile Electric Rubber Parts, Chemical Industry Compounds production.
Machine have two type:Vertical-Type and Tilting-Type.
Tilting-Type X(S)N-
10X32
X(S)N-
20X32
X(S)N-
35X30
X(S)N-
55X30
X(S)N-
75X30
X(S)N-
110x30
X(S)N-
150x30
Total Volume 25L 45L 75L 125L 180L 250L 325L
Working Volume 10L 20L 35L 55L 75L 110L 150L
Driving Motor 15KW 30KW 55KW 75KW 110KW 185KW 220KW
Tilting Angle 140° 140° 140° 140° 140° 140° 140°
Rotor Speed
(Front/Rear)
32/23.5 r/min 32/25 r/min 30/24.5 r/min 30/24.5 r/min 30/24.5 r/min 30/24.5 r/min 30/24.5 r/min
Dimension
(L*W*H)(mm)
2580*1300*2280 2630*1520*2550 3200*1900*2950 3280*1930*3070 3330*2620*3340 3930*3000*3660 4200*3300*3900
Weight(KG) 3300 4500 6500 7800 10500 14500 19500
Product Description
Company Information:
Qingdao Sea King Machinery Co., Ltd. is located in the west coast of Qingdao,is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years.
The company has passed ISO9001:2008 certification,CE certification,SGS certification,france BV certification.
The main product of our company: Internal mixer, Two roll Mixing mill ,extruding equipments,calendar equipments,Cutting machine,cooling equipment,Vulcanizing equipment,and Reclaimed rubber production line,rubber sheet extrusion line,Motorcycle&bicycle Tube &Tires production line,Conveyor Belt production line, v belt production line,rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King industrial Limited was founded. The company has established good commercial relationship with many companies in China by joint venture holding. Products include Rubber Machine ,Raw Rubber Material Rubber Products and so on.
Our company has import-export rights. The products have been exported to many countries and districts around the world, such as America, France, Canada, Dubai,Australia,Peru,Brazil,Ecuador ,SouthAmerican,Southeast Asia, and the Middle East. By the advanced quality and service, our products have gained the praise of domestic and foreign customers.
We strictly follow the policy"to satisfy our clients' need with quality work ,advanced technology,optimized design solution and excellent service".
