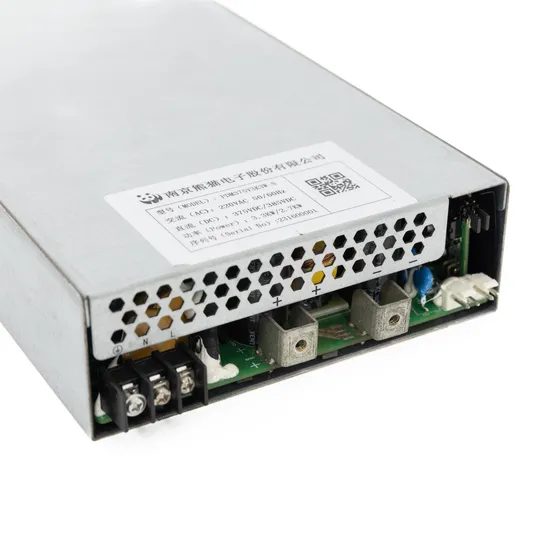

185-252VAC Bidirectional Power Inverter/Solar Power Inverter (PDM-130V3K3W-S)

Product Description

Product Description Product Overview

The design of PDM low-voltage/medium-voltage AC-DC bidirectional power supply module adopts advanced soft-switching control technology and current equalization technology, which can realize the bidirectional conversion of AC/DC energy of single-phase AC system and three-phase AC system, and in addition to meeting the zero line current demand of three-phase balanced configuration system.
It also makes the power matching more flexible, so that even if the system is unbalanced due to the matching, the zero line current won't be more than the current of the stand-alone module.
This series of modules has low harmonics, low power consumption, and high efficiency. This series of modules is characterized by low harmonic, high efficiency, high power density, fast charging/discharging conversion, high reliability, and flexible matching.
SUITABLE FOR THE SCENE
1.Single-cell battery formation/dividing equipment
2.Battery module aging/testing equipment
3.Power Supply Aging
4.Welding machine power aging
5.Bi-directional testing of power supply equipment
FUNCTIONAL FEATURES
1.Adaptable to three-phase AC systems or single-phase systems
2.High power factor >0.99, low THDi < 2.5%.
3.Bi-directional soft-switching operation, charging up to 95%, discharging 93.5%.
4.Fast switching between charging and discharging
5.High grid adaptability
6.Long-term operation at 40°C with full load or short-time overload operation
7.Modular design, can be wired / wireless parallel connection
8.Wireless parallel connection to expand power (no limitation on the number of units).
9.Product design conforms to CCC, CE and other standards
Product Parameters

Technical Specifications
Model			PDM- 14V3K2W-S	PDM- 48V3K3W-S	PDM- 80V3K3W-S	PDM- 130V3K3W-S	PDM- 190V3K3W-S	PDM- 375V3K3W-S
AC Input/Output		Max Output Power	3280W	3360W	3360W	3360W	3360W	3360W
		Rated Output Power	3200W	3300W	3300W	3300W	3300W	3300W
		Input Format	1Ph+N+PE/3Ph+N+PE
		Single Phase Rated Voltage	220Vac/230Vac
		Voltage Range	185 ~ 252Vac
		Frequency Range	50/60±5Hz frequency adaptation
		Current	≤ 20A
		AC Current Harmonics	< 2.5%@220V,Full-loaded,< 4%@220V,60% loaded
		Power Factor	0.99@220Vac,full-loaded
Charge Mode	AC Output	Rated Voltage	14Vdc	48Vdc	80Vdc	130Vdc	190Vdc	375Vdc
		Rated Current	228A	68.7A	40A	25A	17.2A	8.9A
		Voltage Stabilization Accuracy	1%
		Ripple Voltage	1%
		Efficiency Max	92.7%	94.0%	94.5%	94.5%	95.0%	95.0%
Discharge Mode	AC Input	Rated Input Power	2700W	2700W	2700W	2700W	2700W	2700W
		Rated Voltage	15Vdc	51.5Vdc	86Vdc	135Vdc	206Vdc	388Vdc
		Current	180A	52.4A	31.4A	20A	13.1A	7A
		Efficiency Max	91.5%	92.5%	93.0%	93.0%	93.5%	93.5%
General Data	System	Electrical Isolation	High Frequency Isolation
		Cooling Method	Forced air cooling, intelligent speed adjustment
		Wind Direction	By default, the air is in the front and the air is out in the back
		Parallel Connection	Direct paralleling without equalizing flow lines, no limit on the number of units
		Series Connection Max	2 units are recommended for optimal
	Environment	Working Temperature	-20ºC~ 40ºC Full-loaded,Derating above 40ºC
		Storage Temperature	-40ºC~ 70ºC
		Humidity	5 ~ 95% No condensation
		Working Altitude	< 1000m Full-loaded;1000m ~ 3000m,For every 100m of elevation, the power is derated by 1%
	Interface	Indicator Status	Operation: green, fault: red
		Communication	CAN
	Mechanical structure	Dimension(W × H × D)	142mm×47mm×335mm
		Weight(kg)	2.98(kg)

Technical Specifications
Model			PDM- 14V2K3W-S	PDM- 14V2K8W-S	PDM- 13V3K1W-S	PDM- 40V3K3W-S	PDM- 60V3K3W-S	PDM- 219V3K3W-S
		Max Output Power	2550W	3200W	3150W	3360W	3360W	3360W
	AC Input/Output	Rated Output Power	2300W	2800W	3000W	3200W	3300W	3300W
		Input Format	1Ph+N+PE/3Ph+N+PE
		Single Phase Rated Voltage	220Vac/230Vac
		Voltage Range	185 ~ 252Vac
		Frequency Range	50/60±5Hz frequency adaptation
		Current	≤ 16A	≤ 18A	≤ 20A
		AC Current Harmonics	< 3.2%@220V Full-loaded,< 5%@220V 60% loaded			< 2.5%@220V,Full-loaded,< 4%@220V,60% loaded
		Power Factor	0.99@220Vac,Full-loaded
Charge Mode	AC Output	Rated Voltage	14Vdc	14Vdc	13Vdc	40Vdc	60Vdc	219Vdc
		Rated Current	160A	200A	230A	80A	55A	15.1A
		Voltage Stabilization Accuracy	1%
		Ripple Voltage	1%
		Efficiency Max	92.2%	92.5%	92.3%	94.5%	94.5%	95.0%
Discharge Mode	AC Input	Rated Input Power	2100W	2400W	2100W	2700W	2700W	2700W
		Rated Voltage	15Vdc	15Vdc	14Vdc	43Vdc	64Vdc	228Vdc
		Current Max	140A	160A	150A	62.8A	42.2A	11.8A
		Efficiency Max	91.0%	91.8%	91.1%	92.0%	92.8%	93.2%
General Data	System	Electrical Isolation	High Frequency Isolation
		Cooling Method	Forced air cooling, intelligent speed adjustment
		Wind Direction	By default, the air is in the front and the air is out in the back
		Parallel Connection	Direct paralleling without equalizing flow lines, no limit on the number of units
		Series Connection Max	2 units are recommended for optimal
	Environment	Working Temperature	-20ºC~ 40ºC Full-loaded,Derating above 40ºC
		Storage Temperature	-40ºC~ 70ºC
		Humidity	5 ~ 95% No condensation
		Working Altitude	< 1000m Full-loaded;1000m ~ 3000m,For every 100m of elevation, the power is derated by 1%
	Interface	Indicator Status	Operation: green, fault: red
		Communication	CAN
	Mechanical structure	Dimension(W × H × D)	142mm×47mm×335mm
		Weight(kg)	2.98(kg)

Technical Specifications
Model			PDM- 190V10KW-S	PDM- 150V10KW-S	PDM- 375V10KW-S	PDM- 14V4K5W-S	PDM- 20V4K5W-S	PDM- 190V4K5W-S
	AC Input/Output	Max Output Power	10000W	10000W	10000W	4500W	4500W	4500W
		Rated Output Power	10000W	10000W	10000W	4300W	4500W	4500W
		Input Format	3Ph+PE			1Ph+N+PE/3Ph+N+PE
		Single Phase Rated Voltage	380Vac			220Vac/230Vac
		Voltage Range	325 ~ 440Vac			185 ~ 252Vac
		Frequency Range	50/60±5Hz frequency adaptation
		Current	≤ 20A *3ph			≤ 23A
		AC Current Harmonics	< 5%@380Vac,Full-loaded			< 2.5%@220V,Full-loaded,< 4%@220V,60% loaded
		Power Factor	0.99@380Vac,Full-loaded			0.99@220Vac,Full-loaded
Charge Mode	AC Output	Rated Voltage	190Vdc	150Vdc	375Vdc	14Vdc	20Vdc	190Vdc
		Rated Current	52.5A	66.7A	26.7A	307A	225A	23.6A
		Voltage Stabilization Accuracy	1%
		Ripple Voltage	1%
		Efficiency Max	95.0%	95.0%	95.5%	93.0%	93.5%	94.5%
Discharge Mode	AC Input	Rated Input Power	8000W	8000W	8000W	3500W	3600W	3600W
		Rated Voltage	208Vdc	160Vdc	390Vdc	15Vdc	21.5Vdc	208Vdc
		Current Max	38.5A	50A	20.5A	233A	167.5A	17.3A
		Efficiency Max	94.0%	94.0%	94.2%	92.0%	92.8%	93.0%
General Data	System	Electrical Isolation	High Frequency Isolation
		Cooling Method	Forced air cooling, intelligent speed adjustment
		Wind Direction	By default, the air is in the front and the air is out in the back
		Parallel Connection	Direct paralleling without equalizing flow lines, no limit on the number of units CAN parallel 8 units
		Series Connection Max	2 units are recommended for optimal
	Environment	Working Temperature	-20ºC~ 40ºC Full-loaded,Derating above 40ºC
		Storage Temperature	-40ºC~ 70ºC
		Humidity	5 ~ 95% No condensation
		Working Altitude	< 1000m Full-loaded;1000m ~ 3000m,For every 100m of elevation, the power is derated by 1%
	Interface	Indicator Status	Operation: green, fault: red
		Communication	CAN
	Mechanical structure	Dimension(W*H*D)	235mm×65mm×388mm			170mm*44mm*335mm
		Weight(kg)	6 (kg)			4 (kg)

Remarks 1. The "Maximum Output Capacity" only represents instantaneous capacity and is not intended for long-term continuous operation.
2. Can be custom-made to provide an EPO function, allowing external control for operation/shutdown, and it can also save standby power consumption.
3. A single module is suitable for single-phase AC, and multiple modules in parallel can adapt to three-phase four-wire systems. When the power supply is balanced, the effective value of the N-line current is less than 10% or a maximum of 5A.
4. Modules can work in series or parallel. For series operation, it is recommended not to exceed 2 units, and there is no limit to parallel operation. However, the length of the lines from the power source to the load must be as consistent as possible or use busbars; otherwise, it will affect the current equalization effect. CAN allows parallel operation and provides monitoring and communication functions.
5. When the operating ambient temperature exceeds 40°C, a 10% derating is applied from 40 to 45°C. Shutdown occurs when the internal temperature test point exceeds 80°C.
6. The default airflow direction for the module is front-to-back. For modules with a DC voltage greater than 48V, it can be adjusted to back-to-front as needed.
7. Some products are non-standardized and may be upgraded or adapted based on customer needs or system changes. Therefore, the product specifications are for reference only, and actual communication will prevail.
8. For any requirements not mentioned above, please call to obtain relevant information or specifications.
