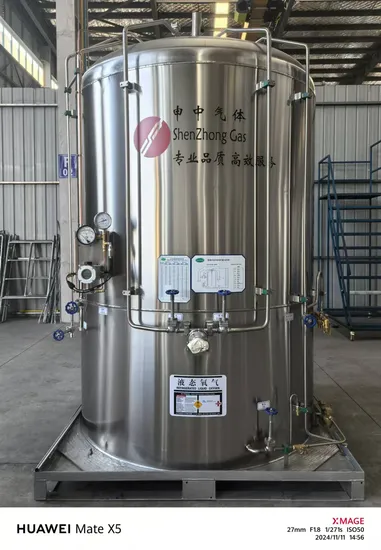

Micro Bulk Cryogenic Mini Tank 3000HPS-5000HPS 1.6MPa for Liquid Gas Storage

Product Description

Product Description
MT tank is an innovative product and has special designs for the industry field,lab and medicine.
It brings gas users a lot of benefits on site.
Gone are the hassels, waste, and expense of full-for empty gas cylinders.
Using MT, there are no cylinders to change, no residual gas losses, no back, hand or foot injuries from handling
cylinders, and no lost or damaged cylinders.
Compared with transportable cylinders, MT tank is more reliable, more efficient and more economical.
Designed for a higher level of thermal efficiency, MT tank can hold gas contents longer with lower pressure rise
than other similar tanks.
MT tank can be filled not only by a normal semi-trailor, but also no-loss by Auto-trailor.
Advantages
*The fill-on-site solution for packaged packaged gas users.
*No-loss/low-loss filling;
*Long holding time;
*Low product losses;
*Fast pressure building, high gas supply;
Fast filling, saving time, cutting cost;
*Three kinds of pressure (1.6MPa,2.4MPa, 3.4MPa); five types of capability(450/1000/ 2000/3000/5000 liters)
*Combination pressure control regulators with micrometer adjustment knob or screw
*Indoor or outdoor installation and easy operation.
High Performance Excellent thermal performance (super-insulated) Up to 500 psig available (VHP) Highest gas withdrawal rates External vaporizer (most models) External pressure builder Extended bonnet RegO® control valves Durability & Design For indoor or outdoor installations All stainless steel construction Features top and bottom fill valves Easy fill by conventional bulk trucks or microbulk trucks Dual relief circuit with diverter valve Mounted on a hot-dip galvanized steel skid Equipped with forklift accessible skid and lifting lugs Product Parameters

SPECIFICATIONS
MODEL		450MPS	450HPS	450VHPS	1000MPS	1000HPS	1000VHPS	2000LP	2000MP	2000HP	2000VHP
CAPACITY
GROSS	:L	450	450	450	1024	1024	1024	2017	2017	2017	2017
NET	:L	427	427	427	973	973	973	2000	2000	2000	2000
GAS STORAGE
O2	:Nm3	337	337	337	768	768	768	1578	1578	1578	1578
N2	:Nm3	275	275	275	626	626	626	1286	1286	1286	1286
Ar	:Nm3	333	333	333	760	760	760	1562	1562	1562	1562
Co2	:Nm3	/	219	219	/	500	500	/	/	1028	1028
PERFORMANCE
Code	GB150,GB18442
MAWP	:Mpa	1.6	2.4	3.4	1.6	2.4	3.4	0.8	1.6	2.4	3.4
Setting	:Mpa	0.86	2.0	3.1	0.86	2.0	3.1	0.5	0.86	1.4	3.1
Pressure	(psig)	125	300	450	125	300	450	75	125	200	450
Regulator	:Mpa	0.35~1.3	1.0~2.4	2.0~3.4	0.35~1.3	1.0~2.4	2.0~3.4	0.17~0.93	0.35~1.3	1.0~2.4	2.0~3.4
Pressure	(psig)	(50-175)	(150-350)	(300-500)	(50~175)	(150~350)	(300~500)	(25~135)	(50~175)	(150~350)	(300~500)
NET%/DAY(N2)	:%/day	1.8	1.8	1.8	0.8	0.8	0.8	0.7	0.7	0.7	0.7
GAS FLOW
**N2,O2,Ar	:m3/H	15	15	15	25	25	25	60	60	60	60
CO2	:m3/H	/	5.4	5.4	/	9	9	/	/	15	15
DIMENTION&WEIGHT
Diameter	:mm	758	758	758	1060	1060	1060	1262	1262	1262	1262
Height	:mm	1706	1706	1706	2250	2250	2250	3060	3060	3060	3060
Tare Weight	kg	354	405	450	800	995	1200	1345	1505	1700	1935
Level Gauge	Differential Pressure Gauge
Pallet	Galvanizing Carbon
Pallet	:mm
Dimension			850x850			1200×1200				1450×1450
(L×W)
** The date is tested at the normal temprerature(20ºC)and changed according with the changing temperature.
SPECIFICATIONS
MODEL		3000LP	3000MP	3000HP	3000VHP	5000LP	5000MP	5000HP	5000VHP
CAPACITY
GROSS	:L	3031	3031	3031	3031	4993	4993	4993	4993
NET	:L	2880	2880	2880	2880	4743	4773	4773	4773
GAS STORAGE
O2	:Nm3	2272	2272	2272	2272	3742	3766	3766	3766
N2	:Nm3	1852	1852	1852	1852	3050	3069	3069	3069
Ar	:Nm3	2249	2249	2249	2249	3704	3728	3728	3728
Co2	:Nm3	/	/	1480	1480	/	/	2453	2453
PERFORMANCE
Code	GB150,GB18442
MAWP	:Mpa	0.8	1.6	2.4	3.4	0.8	1.6	2.4	3.4
Setting	:Mpa	0.5	0.86	1.4	3.1	0.5	0.86	1.4	3.1
Pressure	(psig)	75	125	200	450	75	125	200	450
Regulator	:Mpa	0.17~0.93	0.35~1.3	1.0~2.4	2.0~3.4	0.17-0.93	0.35~1.3	1.0~2.4	2.0~3.4
Pressure	(psig)	(25~135)	(50~175)	(150~350)	(300~500)	(25~135)	(50~175)	(150~350)	(300~500)
NET%/DAY(N2)	:%/day	0.6	0.6	0.6	0.6	0.45	0.45	0.45	0.45
GAS FLOW
**N2,O2,Ar	:m3/H	60	60	60	60	75	75	75	75
CO2	:m3/H	/	/	15	15	/	/	18.5	18.5
DIMENTION&WEIGHT
Diameter	:mm	1466	1466	1466	1466	1816	1816	1816	1816
Height	:mm	3160	3160	3160	3160	3265	3265	3265	3265
Tare Weight	kg	1770	2085	2325	2675	2645	3115	3605	4275
Level Gauge	Differential Pressure Gauge
Pallet	Galvanizing Carbon
Pallet	:mm
Dimension				1650×1650				2000×2000
(L×W)
** The date is tested at the normal temprerature(20ºC)and changed according with the changing temperature.

Company Profile
Jiangsu Qiulin Special energy equipment joint stock Co.,Ltd founded in 2010, and mainly engaged in all kinds of non-standard vessels, cryogenic storage, coal water slurry complete equipment, steel structure etc.
Qiulin owns advanced design capabilities,is equipped with modern manufacturing facilities,and a full range of in-house test equipment. Over the years, we adhere to the "customer-oriented" business philosophy to provide our customers with all kinds of equipment and have the competitive edge in quality, delivery and price. Qiulin has diversified manufacturing capabilities, mainly focused on the following two areas:
I. Pressure equipment
We design individually to customer requirements, and manufacture pressure vessel, cryogenic storage (Liquefied natural gas, liquefied industrial gases) & reactors & heat exchanger, columns., etc. in accordance with the following standards and codes:
· China Code GB150 and GB151 for A1, A2 and A3 Pressure Vessel design and manufacturing license;
Class B3 Special cylinder manufacturing license;
GC2 class pressure piping installation license, tank container CCS
· ASME Boiler and Pressure Vessel Code, Section VIII, Div.1 - (U Stamp, NB Stamp)
· Pressure Equipment Directive 2014/68/EU (PED) for the European market PED
· Cryogenic storage apply to the North American market DOT/CNR
· In addition, we are applying for KGS certificate for Korean market
II. Other custom products
Metallurgy, mineral equipment fabrication, including coal water slurry complete equipment, mill, anode furnace, casting machine, disk machine, etc.
· Paper machine and marine equipment
· Process modules and skid equipment fabrication, including detailed design, material purchasing, fabrication, assembly, painting, insulation, electrical and instrumentation, etc.
· Custom prefabricated steel structures
Qiulin has been partner of many domestic and overseas famous company like CNPC, CNOOC, SINOPECC, Air Liquid, Air products, Messer, Linder Yingde gases, Fuel Tech, ABB, MO,Andritz, Reel, Morimatsu etc.

Established	2010
Export rate	30%
Site Area	100000 square meter
Supply Scope	Pressure vessel, storage tanks, heat exchangers, reaction kattles, adsorber for air separation etc. Cryogenic liquid storage tanks, skid of gas production. Steel structure fabrication, steel structure equipment
Application	Oil and Gas, LNG and Marine , petrochemical, metallurgy, food and pharmaceutical, environmental protection
License	_Design and Fabrication License for Category I ,II & III (Class A1 and A2) of Chinese standard pressure vessel _ASME U,DOT/CNR _API, EN,AWS _ISO9001:2008, ISO14001:2004, OHSAS18001:2007
Production capacity	Monthly steel structure fabrication:3000T Maximum loading weight:200T Maximum diameter: 9.2M Lifting Height: 14M

Fabrication Site
Main Equipment
Certificate
Packing and Transportation
Project Case
Our Client
Trade Show
Our Other products
FAQ
f you have questions about our products, here's where you can find the answers. If you don't find the answer to your question here, please contact us by telephone or email.
Q: Application of microbulk tank?
A: contain liquefied gases such as nitrogen, oxygen, argon, and carbon dioxide, which are for industry and commerce use. These gases are stored at extremely low temperatures and in a liquid state.
Q: What is the warranty of your Products?
A: The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1-year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.
Q: What trade terms can you apply in the contract?
A: EXW, FOB, and CIF are the regular terms we use.
Q: MOQ
A: 1 SET.
