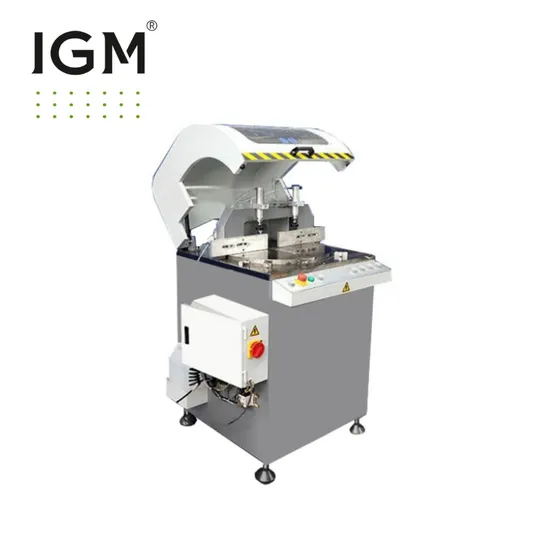

Aluminium Window Door Making Manufacturer 500mm Aluminum Profile Single Head Cutting Saw

Product Description

Product Description
Aluminium Window Door Making Manufacturer 500mm Aluminum Profile Single Head Cutting Saw
Model: LDJR-500
Function: Cutting Angle between 22.5 degree to 157.5 degree.
Technical Parameters of Aluminum Profile Single Head Cutting Saw

Model	LDJR-500
Working Air Pressure	0.5 -0.8 Mpa
Power Supply	220V /380V / 415V 50 /60Hz
Cutting Height	200mm
Cutting Width	150-200 mm
Cutting Angles	22.5°, 90°, 22.5°
Diameter of Blade	∅500 mm
Input Power	3.0 kw
Rotary Speed	2800 r/min
Overall Dimension	1250*1200*1500 mm
Gross Weight	500 KGS
Brand	IGM
Operation Manual	√
Operation Video	√
Color Customization	√
MOQ	1 SET

Detailed Photos

Clamping cylinder
Vertical and horizontal compression; the compression position and pressure can be adjusted

Rotating table, adjustable 22.5° - 90° - 22.5°

The Blade is from Japan WAGEN,
up cutting: feeding and cutting is from bottom to top.

Digital Display For Cutting Angles.

Auto opening safe shield to make the user safe.
Main Features of Aluminum Profile Single Head Cutting Saw
• Used to cut aluminum doors and windows, aluminum curtain walls, and other industrial aluminum materials at any angle.
• It can cut any angle between 22.5 and 157.5 degrees.
• Up cutting: feeding and cutting is from bottom to top.
• High-precision spindle motor directly connected to the saw blade, stable and reliable operation, low noise, high cutting precision
• Saw blade is from Japan WAGEN, diameter is 500mm.
• Digital dispay for cutting angles.

Packaging & Shipping
LCL: Aluminum Profile Single Head Cutting Saw is packed in fumigation-free plywood, the pallet is thickened and raised, and the machine base is fixed with steel wire.
FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.
We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.
Company Profile
Company Introduction: JINAN IGM INTERNATIONAL CO., LTD.
About Us: JINAN IGM INTERNATIONAL CO., LTD. is a leading enterprise located in Jinan, China, specializing in the design, manufacturing, and distribution of high-quality Aluminum window machine, UPVC window machine and Double glazing machine. Our company is committed to providing innovative and customized solutions to meet the diverse needs of our global clientele.
Products and Services: We offer a comprehensive range of machinery that caters to the manufacturing of aluminum and UPVC windows, as well as double glazing solutions. Our products are engineered for precision, efficiency, and durability, ensuring that our customers can produce high-quality windows that meet international standards.
Market Presence: Our advanced machinery has found extensive applications across North America, South America, Europe, the Middle East, and other regions. Our global presence is a testament to our commitment to quality and customer satisfaction.
Research and Development: At JINAN IGM INTERNATIONAL CO., LTD., we place a strong emphasis on research and development. Our dedicated R&D team works tirelessly to innovate and enhance our product offerings. We stay at the forefront of technological advancements to ensure our machinery remains cutting-edge and capable of meeting the evolving needs of the market.
Customization Capabilities: Understanding that every customer has unique requirements, we offer tailored solutions to address specific production needs. Our customization capabilities ensure that each machine is designed and configured to optimize performance and efficiency for our clients' operations.
Standardized Processes: From procurement to production and quality inspection, JINAN IGM INTERNATIONAL CO., LTD. adheres to standardized processes to maintain the highest levels of quality and consistency. Our rigorous quality control measures ensure that every machine leaving our facility meets the stringent standards expected by our customers.
Quality Assurance: Quality is at the heart of everything we do. Our standardized production processes and thorough quality inspections guarantee that our machines deliver reliable performance and long-lasting durability. We are committed to excellence in every aspect of our operations, ensuring our customers receive products they can trust.
Conclusion: JINAN IGM INTERNATIONAL CO., LTD. is your trusted partner for high-performance window manufacturing machinery. With our advanced R&D capabilities, extensive customization options, and unwavering commitment to quality, we are dedicated to helping our customers achieve success in their respective markets. Choose IGM for innovative solutions and exceptional service.
Our Advantages
1. Technical capability and innovation capability:
IGM has a senior R&D and design team with 15-20 years of industry experience; the company's annual R&D cost accounts for about 10%-15% of its profits, and it launches an industry-leading product every one to two years; it has numerous invention patents and utility model patents, and the number and technical level belong to the first echelon in China.
2. Ultimate product quality and reliability:
Our factory has passed international quality certification systems such as ISO and BV. The equipment has a low failure rate and a long service life. The market is very satisfied with product quality and customer satisfaction surveys.
3. High production capacity and efficiency:
The factory covers an area of 15,000 square meters, has its own machining workshop and sheet metal processing workshop; has more than 80 employees; ERP management has been implemented from procurement, finance, orders, production, and delivery, with a high degree of optimization of production processes, high production efficiency, and reduced production costs.
4. Market share and brand influence:
Market coverage: market share and distribution at home and abroad.
Brand awareness and reputation: brand awareness, reputation and customer loyalty within and outside the industry.
Sales network and service network: the breadth of sales channels and the coverage of after-sales services.
5. Customer customization capabilities:
Provide customized solutions based on customer needs; respond faster to customer needs and market changes.
After Sales Service
Installation and commissioning services:
On-site installation support: Provide professional technicians to install equipment on-site.
Equipment commissioning: Ensure that the equipment can operate normally after installation, including commissioning and testing.
1,Technical training:
Operation training: Provide equipment operation training to customers' operators to ensure that they can use the equipment correctly and safely.
Maintenance training: Provide equipment maintenance and maintenance training to customers' maintenance personnel to improve the service life and reliability of equipment.
2,Maintenance and maintenance:
Regular inspection: Provide regular equipment inspection services to discover and solve potential problems and prevent failures.
Preventive maintenance: Provide preventive maintenance suggestions and services based on the use and characteristics of the equipment.
3,Maintenance services:
Quick response: Establish a quick response mechanism to handle customer maintenance requests in a timely manner.
Remote support: Provide remote technical support through telephone, video and other means to solve equipment failures.
Spare parts supply: Ensure the timely supply of spare parts and reduce downtime caused by spare parts shortages.
4,Technical support and consulting:
24/7 support: Provide round-the-clock technical support and consulting services to answer customer questions at any time.
Provide technical information, FAQs and real-time consultation.
5,Warranty service:
Warranty period: longer warranty time - 18 months, provide lifelong after-sales service.
6,Customer feedback and improvement:
Regularly contact customers to actively understand the use of equipment and customer satisfaction.
Attach importance to customer feedback and continuously improve products and services based on customer suggestions.
7, Upgrade and transformation service:
According to technological development and customer needs, provide equipment upgrade services to improve equipment performance.
Provide customers with equipment transformation solutions to meet special process requirements or improve production efficiency.
