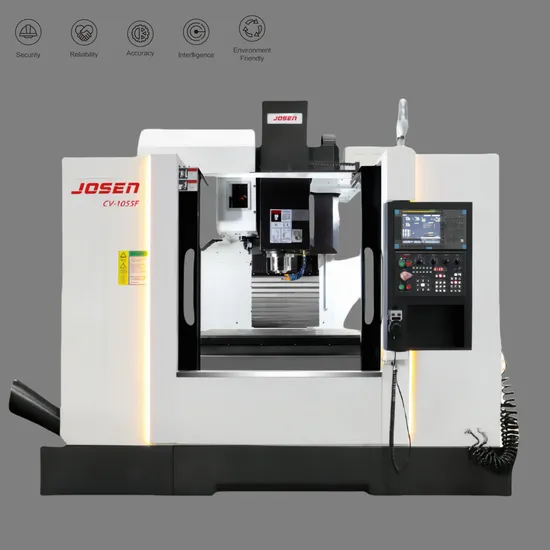

Factory Direct Supply High Accuracy 3-Axis 4-Axis 5-Axis Vertical Machining Center CV1055f
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.05~0.06(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle Feed
10000/8000rpm
Spindle Taper Hole
Direct Driven
Cutting Feed Rate
10000mm/Min
Working Table Size
1200*600mm
Transport Package
Iron/Wooden Bracket, Wood Case
Trademark
Josen
Origin
China
HS Code
8457101000
Packaging & Delivery
Package Size
375.00cm * 337.00cm * 287.00cm
Package Gross Weight
7000.000kg
Product Description
Features:| 1.This model is suitable for communication electronics, automobile and locomotive parts production, and automated parts processing. |
| 2.Combined with FEM analysis, the main components of the base, column and saddle all adopt unique high rigidity structure, which makes the internal force structure of the whole machine more optimized and ensures the rigidity and thermal variation stability of the whole machine. |
| 3.Three axes linear precision rolling guide design, fast acceleration and deceleration response, effectively improve the machining efficiency and machining accuracy of the machine, even under heavy load is also excellent. |
| 4.The front end of the spindle is equipped with a circular water jet to allow effective cooling of the cutting tool, while the internal air curtain with negative pressure extends the service life and ensures reliable use of the spindle for long time and high-speed operation. |
| 5.The stable base and column with lightweight motion axis components effectively ensure the stability of the machine during high acceleration and deceleration movements. |
Basic Specifications:
| 3.1 | Working capacity: | |
| X travel : | 1020 mm (40.2") | |
| Y travel : | 520 mm (20.5") | |
| Z travel : | 550 mm (21.7") | |
| Distance nose to table : | 145-695 mm (5.7"-27.4") | |
| 3.2 | Table: | |
| Table size : | 1120 × 520 mm (44.1"×20.5") | |
| T slot size * distance *number :: | 18 * 100 mm * 5 slots (0.8"×3.9"×5) | |
| Max. table load : | 500 kg (227 lb) | |
| 3.3 | Head stock: | |
| Spindle motor : | (Cont. /30 min.)11/15 kW (15 / 20HP) | |
| Belt driven spindle speed : | 10-10000rpm | |
| Spindle taper : | BT40 | |
| 3.4 | Axial information | |
| X-axis motor : | β is 22 /3000 (3.0KW) | |
| Y-axis motor : | β is 22 /3000 (3.0KW) | |
| Z-axis motor : | βis30B /2000 (3.0KW) | |
| X-axis ballscrew/rail : | Ø40*12(C3)/MSR35LS-2*2 slider | |
| Y-axis ballscrew/rail : | Ø40*12(C3)/MSR35LE-2*2 slider | |
| Z-axis ballscrew/rail : | Ø40*12(C3)/MSR35LS-2*2 slider | |
| 3.5 | Feed : | |
| Rapid traverse : X,Y axes : | 36 m/min (1417 in/min.) | |
| Z axis : | 36 m/min (1417 in/min.) | |
| Cutting feedrate : | 1-10000 mm | |
| 3.6 | Tool magazine : | |
| Tool capacity : | Arm type 24 Tools | |
| Tool holder spec. : | BT40 | |
| Pull stud spec. : | MAS-P40-1(45°) | |
| Max.tool dia. ( full / adjacent) : | Ø80/Ø150 mm(Ø3.2"/Ø5.9") | |
| Max. tool length : | 300 mm (11.8") | |
| Max. tool weight : | 8 kg (18 lb) | |
| 3.7 | Accuracy :(VDI 3441) | |
| Environmental Requirements: within 12 hours before testing, the temperature change in the environment of the machine shall not be greater than 4 ° C, the temperature change in the detection shall not be greater than 2 ° C. | ||
| (Full travel) Repeatability: | 0.005 mm(0.0002") | |
| (Full travel) Positioning accuracy : | 0.010 mm(0.0004") | |
| 3.8 | Controller: | |
| Controller system: | Fanuc 0iMF | |
| Oil pressure, air pressure, power system | ||
| Water tank capacity | 250 liter(side drain) | |
| Air pressure demand: | 6 kg/cm2(13.2 lb/cm2) | |
| Power specifications: | AC380±10%,3Phase,60Hz/50Hz | |
| Electricity demand: | 30 KVA | |
| 3.9 | Dimension: ( Approx. ) | |
| Length : | 3450 mm (135.8") | |
| Width : | 3070 mm (120.9") | |
| Height : | 2840 mm (111.8") | |
| Net weight : | 6000 kg (13228 lb) | |
| Gross weight : | 7000 kg (15432 lb) | |
