Stainless Steel Strainers Bag Cartridge Filter System

Product Description

Bag filter Bag Filters are the workhorse of the filtration industry. Finer and more carefully controlled construction in the manufacturing of filter bags have moved bag filters into filtration areas that they had never seen before. In general, Felt Type Filter Bags are finer and offer higher solids loading capacity at 150 microns and below. Above 150 Microns Mesh Type Filter Bags dominate in their more traditional straining applications. Most bag filters are also designed disposable, which means that they have to be replaced when the filter is clogged.
In addition to traditional felt and mesh filter materials, we provides bag filters utilizing specialty woven, melt blown and other non-woven media for such uses as oil absorption or food compliant, high efficiency applications. We also offer the finest bag filter housing in the industry.

Engineering

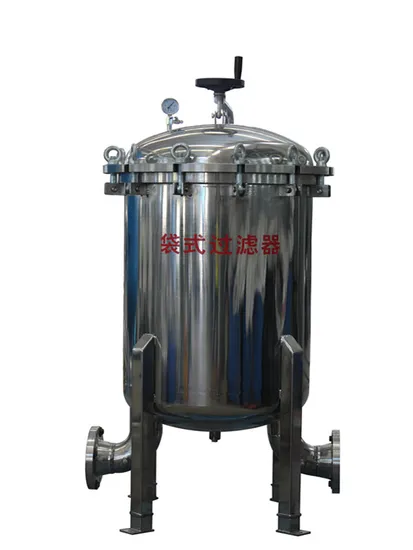

The liquid flows from the top of the filter house (manufactured in either stainless or epoxy coated carbon steel) and is distributed equally amongst the bags. The liquid comes out at the bottom leaving the dirt behind.
Since the bag is locked in at the top of the vessel all the dirt is trapped inside the bag. The filter vessel never requires cleaning after use.
Bag filters systems are applied is various industries solutions. Treated liquids include: milk products, paint, lime, beer etc.
It can also help you with replacement from various filter bags.
01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.
02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .
03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
05.Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without cleaning,and time saving and labor saving.
06.Filtration bag could be use repeated after cleaning to save cost.
07.bag filter application scope is broad, with flexible operation and multiple installation .
Technical parameters of bag filter

items	filtration area	Nos. of bag	water inlet-outlet	Rock-arm at cover	Connection at cover	capacity
model	SQM/m2	pc	mm	option	clamp/flange	m3/hour
YL-BF-0.25	0.25	1	50	without	clamp	20
YL-BF-0.5	0.5	1	50	without	clamp/flange	40
YL-BF-1.0	1.0	2	50	without	clamp/flange	70
YL-BF-1.5	1.5	3	50	Rock-arm	Quick-fitting flange	100
YL-BF-2.0	2.0	4	100	Rock-arm	Quick-fitting flange	140
YL-BF-2.5	2.5	5	150	Rock-arm	Quick-fitting flange	175
YL-BF-3.0	3.0	6	200	Rock-arm	Quick-fitting flange	210
YL-BF-3.5	3.5	7	200	Rock-arm	Quick-fitting flange	240
YL-BF-4.0	4.0	8	250	Rock-arm	Quick-fitting flange	280
YL-BF-5.0	5.0	10	250	Rock-arm	Quick-fitting flange	350
YL-BF-6.0	6.0	12	300	Rock-arm	Quick-fitting flange	420
YL-BF-7.0	7.0	14	300	Rock-arm	Quick-fitting flange	490
YL-BF-8.0	8.0	16	300	Rock-arm	Quick-fitting flange	560
YL-BF-9.0	9.0	18	350	Rock-arm	Quick-fitting flange	630
YL-BF-10	10	20	350	Rock-arm	Quick-fitting flange	700
YL-BF-11	11	22	350	Rock-arm	Quick-fitting flange	770
YL-BF-12	12	24	350	Rock-arm	Quick-fitting flange	840
