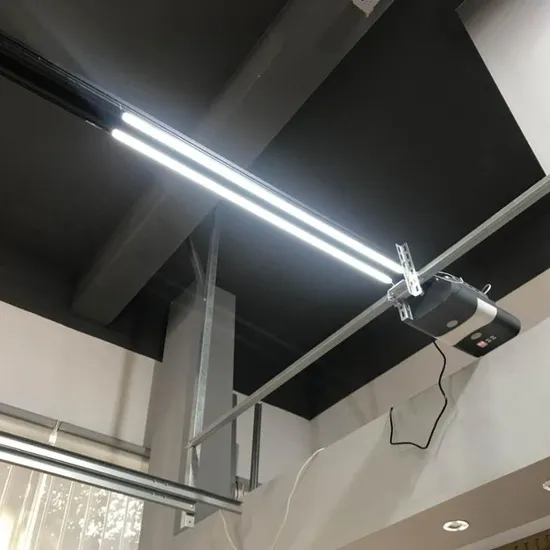

Amercian Design Garage Door Opener Motor with Aluminum Rail Optional LED Light
| US$60.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Advanced serious
Excitation Mode
Series Excitation
Function
Driving, Open and Close Garage Door
Casing Protection
Protection Type
Number of Poles
6
Structure and Working Principle
Brush
Certification
Ce , Ce - Red, LVD, EMC,En12453&12445, TUV, C-Tick
Brand
OEM
Lifting Speed
160mm/S
Case Material
Plastic / Aluminum
Base Material
Steel
Color
Black / Grey / Aluminum / Customizing Available
Rail Length
3000~4000mm
Drive Option
Chain Drive / Belt Drive
Transport Package
Carton/ Wooden Box/ Pallet
Specification
600N / 1000 / 1200N
Trademark
OEM
Origin
China
HS Code
8501520000
Production Capacity
1000000sets / Year
Product Description
---------------------------------------------------------------
ADVANCED
600N / 1000N / 1200N /1500N
600N Speed / 1000N Speed
Residential and Commercial Application
| Model | 600N / 600N Speed | 1000N / 1000N Speed | 1200N | 1500N | ||
| Input voltage | 220-240V / 110-127V , 50-60Hz | |||||
| Max. opening speed | 160mm/s or 200mm/s ( Speed model) | |||||
| Max. door height | 2400-5000mm | 2100-4200mm | ||||
| Bottom base material | Metal | |||||
| Drive mechanism | Chain/Belt | Chain | ||||
| Max. door size | 10 m2 | 15 m2 | 18 m2 | 25 m2 | ||
| Max. door load | 80 kg | 100 kg | 130 kg | 200 kg | ||
| Soft-start/stop | More Information Display |
| Automatic Closing Time Setting | Automatic Closing Height Setting |
| Maintenance Alarm | Terminal Devices Supported |
| Maximal Remote Quantity Setting | Travel Speed Setting |
| Transformer Overload Protection | Reversal Height Setting |
| 433MHz/Rolling Code | Photo Cell ON/OFF Setting |
| Status Display Remote | Electronic Travel Limit Setting |
| Reversal Force Setting | L.E.D Off Delay Time Setting (1min *N N=1--9) |
1, Losing traveling limit after hundreds operation?
2, Doors couldn't totally close or open after hundreds operation?
3, Openers need to be re-programed after hundreds operation?
All these won't happen to our openers, all because we have Less maintenance & Less traveling deviation with Longer lifetime
Build-in twin-encoder & Synchronizing device
Higher precision of position limit
No more external mechanical switch
Self-adjustment for different doors with different weights, springs and maintenance conditions.
