High Precision High Quality Universal Vertical Milling Machine X5040

High Precision High Quality Universal Vertical Milling Machine X5040

US$12,000.00-23,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X5040
Object
Hardware
Structure
Vertical
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case/Wooden Bracket/Nude Packing
Specification
2556x2159x2298
Origin
China
HS Code
8459619000
Production Capacity
200set/Month

Product Description

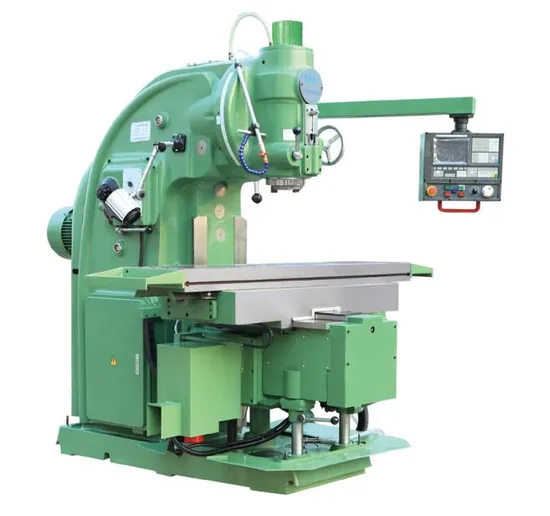

Vertical Milling Machine X5040
Specification:
Model No. X5040
Item No.
Specifications
Table size 1700x400 mm
No,of T-slots 3
Width of T-slots 18 mm
Max load 800 kg
Longitudinal travel(manual/auto) 900/880 mm
Cross travel(manual/auto) 315/300 mm
Vertical travel(manual/auto) 385/365 mm
Rapid feed speed X:2300,Y:1540,Z:770 mm/min
Table feed range ( X/Y/Z ) 23.5-1180/15-786/8-394 mm/min
Spindle
Spindle speed range 30-1500 r/min
Spindle speed step 18 steps
Stroke of spindle quill 85 mm
Max, swivel angle of milling head ±45°
Distance between spindle nose and table surface 115/500 mm
Other
Power of spindle motor 11 kw
Overall dimensions(Lx W x H) 2556x2159x2298
Net weight 4250 kg


FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
