Customization ODM OEM Magnetic Coupling Seal Agitator Zero Leakage High Pressure Vessel
| US$247,000.00-268,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FCHA
Application
Customized
Material
S30408, Q345r,S32168
Pressure
Customized
Storage Medium
Customized
Pressure Level
Customized
Condition
New
Rotation Speed
230r/Min
Power
110kw
Seal Type
Magnetic Coupling Seal Zero Leakage
Total Weight
47618kg
Lead Time
100 Days
Oversea Branch
California, USA
OEM
Available
ODM
Available
Specification
34.5m³
Trademark
LUHAO
Origin
China
HS Code
84198990
Product Description

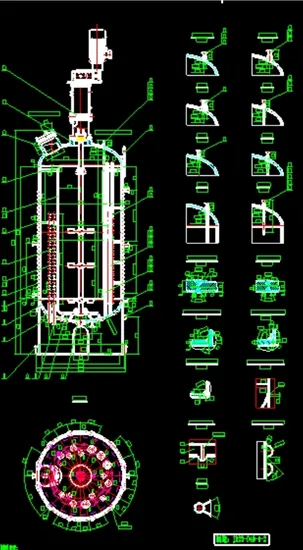

Vessel Capacity m³: 34.5 Material: S30408+Q345R Design pressure MPa: 7.0 Design temperature ºC: 100 Work pressure MPa: 6.0 Work temperature ºC: 80 Working life: 10 years External half tube Capacity m³: 1.9 Material: 20/Q345R Design pressure MPa: 0.6 Design temperature ºC: 165 Work pressure MPa: 0.5 Work temperature ºC: 150 Medium: Steam Heat exchange area m2: 85.5 Coil tube Capacity m³: 0.60 Material: S32168 Design pressure MPa: 0.6 Design temperature ºC: 30 Work pressure MPa: 0.5 Work temperature ºC: 7 Medium: 7ºC water Heat exchange area m2: 60.6 Total weight Kg: 47618| *For confidential reason, the drawing is in low definition. Please contact us for more information. |
https://luhaochemreactors.en.made-in-china.com/product-list-1.html
| LUHAO Chemical Machinery Co. Ltd | ||||||||||||||
| Pressure Vessel Design Information Collection Table | ||||||||||||||
| Vessel | Jacket (Coil) | |||||||||||||
| Work Medium | Name | |||||||||||||
| Components | ||||||||||||||
| Density (Kg/m³) | ||||||||||||||
| Characteristics | ||||||||||||||
| Viscosity (cP) | ||||||||||||||
| Flow Velocity(m³/h) | ||||||||||||||
| Design pressure (Mpa) | ||||||||||||||
| Work pressure (Mpa) | ||||||||||||||
| Design temperature(ºC) | ||||||||||||||
| Work temperature (ºC) | ||||||||||||||
| Wall temperature (ºC) | ||||||||||||||
| Diamter (mm) | ||||||||||||||
| Length (mm) | ||||||||||||||
| Capacity(m³) | ||||||||||||||
| Effective capacity (m³) | ||||||||||||||
| Corrosion allowance (mm) | ||||||||||||||
| Corrosion speed (mm/year) | ||||||||||||||
| Recommended Materials | ||||||||||||||
| Lowest value of average monthly temperature(ºC) | ||||||||||||||
| Site location | ||||||||||||||
| Installation condition | Indoor or Outdoor | |||||||||||||
| Catalyst Volume(m³) | ||||||||||||||
| Catalyst Density(Kg/m³) | ||||||||||||||
| Heat Transfer Area() | ||||||||||||||
| Coil Specification | ||||||||||||||
| Basic Wind Pressure(Mpa) | ||||||||||||||
| Seismic Basic Intensity | ||||||||||||||
| Ambient Temperature(ºC) | ||||||||||||||
| Site Type | ||||||||||||||
| Operating Mode | ||||||||||||||
| Insulation Materials | Name | |||||||||||||
| Thickness | ||||||||||||||
| Density (Kg/m³) | ||||||||||||||
| Seal Requirements | ||||||||||||||
| Liquid Level Gauge | ||||||||||||||
| Emergency Cut-off | ||||||||||||||
| Static Electricity Removal | ||||||||||||||
| Anti Eddy Current Requirement for Liquid Outlet | ||||||||||||||
| Installation and Mantainance Requirements | ||||||||||||||
| Expected Useful Life (years) | ||||||||||||||
| Safety accessories | Vessel | Jacket (Coil) | ||||||||||||
| Location | ||||||||||||||
| Type | ||||||||||||||
| Specification | ||||||||||||||
| Quantity | ||||||||||||||
| Set pressure(Mpa) | ||||||||||||||
| Burst disc | ||||||||||||||
| Burst pressure(Mpa) | ||||||||||||||
| Safety discharge(kg/h) | ||||||||||||||
| Agitator | Type | |||||||||||||
| Impeller Diameter(mm) | ||||||||||||||
| Speed(r/min) | ||||||||||||||
| Motor | Model | |||||||||||||
| Power(kw) | ||||||||||||||
| Explosion Proof Grade | ||||||||||||||
| Speed reducer | ||||||||||||||
| Piping Table | ||||||||||||||
| No. | Dimension | Pressure | Connection Size Standard | Connection Surface Type | Function | |||||||||
| a | ||||||||||||||
| b | ||||||||||||||
| c | ||||||||||||||
| d | ||||||||||||||
| e | ||||||||||||||
| f | ||||||||||||||
| g | ||||||||||||||
| h | ||||||||||||||
| j | ||||||||||||||
| k | ||||||||||||||
| Other Requirements if any | ||||||||||||||
