HaiBo WFT Series Wire Control Electric Trolling Motor WFT80DG

Product Description

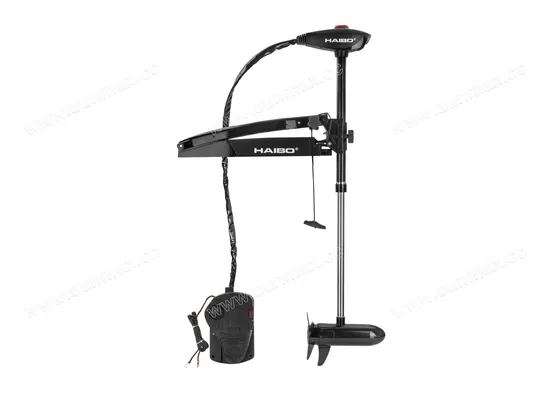

HaiBo WFT Series Wire Control Electric Trolling Motor WFT80DG
Product Description
•LED direction indicator.•LED power indicator.•Whole metallic mount with anti-collision system.•Infinite variable speed system, more fluent and stable output.•High strength stainless steel shaft.•All new Pro-control system makes you feel best control experience.•TS version can be equipped with transom mount, easy to install.The Haibo WFT 80DG is a unique model with very convenient pedal control. It is mounted on the nose of a hull boat or yacht and is used for trolling fishing and manoeuvring. The pedal allows you to turn the electric motor on and off, switch it to reverse mode, and change direction and speed.
The engine is extremely reliable. It has a sturdy stainless steel rack and a metal quick-removable plate. When moving between fishing points, simply lift the motor out of the water and secure it on a fast-moving plate.
On the control unit are: an indicator of the level of battery and a sign of the direction of movement. They are illuminated with bright LEDs, so it is convenient to use them even in total darkness.
The Haibo WFT 80DG boat engine is equipped with an anti-corrosion plate (on the engine body) and can be operated in fresh and salt water.

Item	Weight (kg)	Voltage (v)	max Current (A)	Battery (V/Ah)	Speed mode	Shaft Material	Shaft Length(cm)
WFT54DG	16	12	45	12V*100Ah	CVT	S.S	121
WFT80DG	17	24	41	24V*100Ah	CVT	S.S	121
WFT54TS	10	12	45	12V*100Ah	CVT	S.S	121

Product Features

	High efficiency motor unit *Quiet and stable operation *Easy to deal with water obstacles *Made of high strength plastic		Pro-control pedal *Haibo pro-control conduction control system
	Anti-collision metal mount *Sudden impact of external force, collision with anti-collision buffer block of seat platform to reduce stress and avoid machine damage		Daily direction system *LED direction indicator lamp *LED power percentage display *Battery voltage display, provide accurate battery level reference in real-time
	High Strength Stainless Steel *With the new assembly mechanism, it has higher rigidity and considerable toughness at the same time		Armature motor tracking code *Each motor corresponds to a tracking code

Product Parameters

Model	WFT 80DG
Power (W)	984
Thrust (lbs)	80
Thrust (kg)	36
Rated Voltage (V)	24
Max. Current (A)	41
Type of Electric Motor	Brush
Propeller Max. Speed at Full Power (rpm)	1900
Management	Remote
Type of Handle	No
Shifting	Stepless
How Information is displayed	LED indication
Information Displayed	Battery Level, Direction of Movement
GPS	No
Number of Propeller Blades	3
Noise Level (dB)	52
Max. Boat Weight (kg)	800
Max. Length of Boat (m)	7.2
Use Environment	Fresh Water, Salt Water
Color	Black
Total Engine Height (cm)	142
Shaft Length (cm)	121
Weight (kg)	20
Recommended Battery Capacity (AH)	2x100
Package Size (cm)	152x52x22
Warranty Period (Months)	12
