Factory Price STA DSC Differential Scanning Calorimeter with Cooling System

Product Description

Product Description

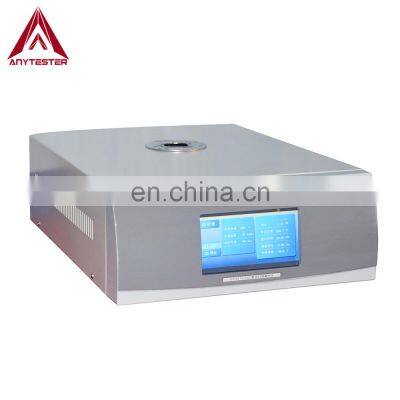

Product DescriptionAT451 Differential Scanning Calorimeter (DSC) is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc.Principle:The difference between the heat flux into a test specimen and that into a reference specimen is measured as a function of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programme under a specified atmosphere. StandardISO 11357ASTM E794GB/T 13464, 19466Note: For more standards, please contact usSpecificationModelAT451DSC range0～±500mWTemperature rangeRT~800℃, air cooling (standard configuration)Heating speed1~60℃/minTemperature resolution0.1℃Temperature fluctuation±0.1℃Temperature repeatability±0.1℃DSC resolution0. 05μWDSC accuracy0.05μWDSC sensitivity0.05μWTemperature control modeHeating up, keeping temperature, cooling down (program control)Display modeLCD touch screenData interfaceUSBPower supplyAC220V, 50HzDetails & FeaturesThe back of machine★ In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover. With USB cable to connect machine to computer.Machine operation interface★ Suitable for solid, powder and liquid samples, except gas sample.★ LCD display, touch screen operation.★ Full equipped with accessories, convenient and easy to test.★ Chinese or English operation system can be selecte★ Small furnace, high accuracy of temperature control, the temperature can be RT~800℃. Also, liquid nitrogen cooling system can be optional, the temperature can be -100 ~ 800℃ or -20 ~ 600℃.Test interface for DSC tesTest interface for DSC test★ Two user interface on software, one is for DSC test, the other is for OIT test DSC-Temp curve for melting point test.★ Real-time record and display DSC-Temp curve or DSC-time & Temp-time curve.Flow meter★ Full equipped with accessories, convenient and easy to test. ★ Chinese or English operation system can be selected.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
