De-Baler with Efficient Bale Breaking Technology for Plastics Recycling System

Product Description

De-baler with Efficient Bale Breaking Technology

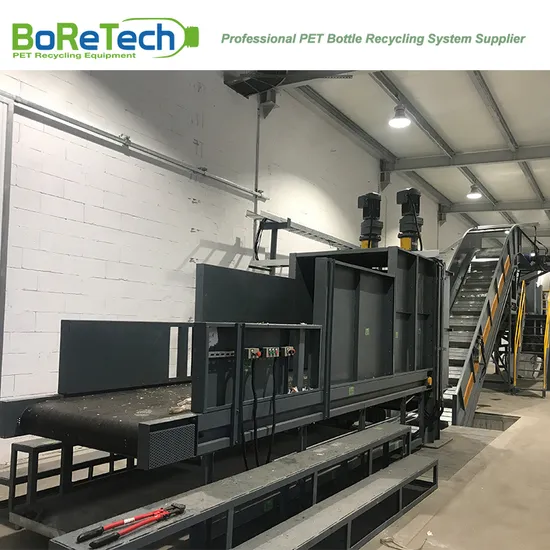

Bale braeker is applied to PET bottle recycling industry to break up PET bottle bales. Cutting the wires of the PET bottle bale manually in the first step, then PET bottle bales will be transported to bale breaker shafts via belt conveyor or chain conveyor. PET bottle bales become loose bottles under the function of powerful rolling paddles.

Model	Capacity(kg/h)	Power(kW)	Dimensions(mm)
JBJ1300	1500/3000	11*2	1690*800*3864
WJB1400	3000/6000	15*2	2803*2260*3804
XJB1800	>6000	15+4+2.2*2	7248*3790*2767
WJB1800	>6000	15*3	5495*2260*2870

Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing
De-baling Section introduction
De-baling unit adopts weighing-connected feeding device by high automation technology and break up bottle bales and remove mixed metal. The special knife structure can avoid any unexpected mechanical clogging.
BoReTech is a resource environmental enterprise which integrates manufacturing,engineering and equipment supply. BoReTech is devoted to develop large input capacity of smart PET bottle recycling system with full automation and intelligence. Meanwhile, BoReTech as resources and technology integrator of recycled polyester industrial chain supply turnkey service of PET bottle washing line,bottle-to-fiber and bottle-to-bottle engineering.
BoReTech is the only PET bottle washing line for food-grade B-To-B project in Asia,and more than 170 PET bottle washing lines are running all over the world.
After-sales service
Engineers available to service machinery overseas.
Warranty:1 year for machinery,6 months for electrical.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.
