Model Yd-1 Tablet Hardness Test Apparatus

Model Yd-1 Tablet Hardness Test Apparatus

US$200.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YD-1
Measuring Range
2~199.9n
Standard
ISO
Warranty
1 Year
Calibrating Method
Standard Hardness Test Blocks
Rated Voltage
220V
Support Language
English
Power
220V or 110V
Transport Package
Standard Export Package
Specification
320 * 200 * 100mm
Trademark
Pharmao
Origin
China
HS Code
9011800090

Product Description

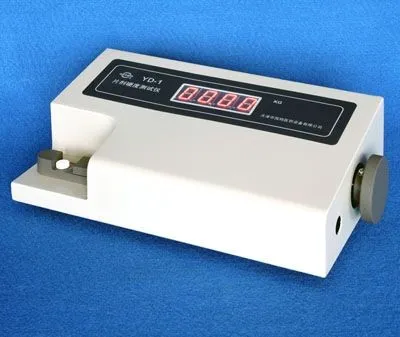

YD-1 TABLET HARDNESS TESTER
Specification:
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standard:
Corporate standard (Tablet hardness tester) Q/12XQ0186-2005
Features: The tablet is loaded and pressed artificially. It has high accuracy press sensor and hardness data is displayed on LED. It tests tablet hardness continuously. Test data is displayed and locked automatically, so can test be rest and cycled. Automation: auto-test, auto-diagnose, auto-alarm
Technical Parameter:
Hardness range: ( 2 - 199. 9 ) N
Hardness accuracy: Max. * (±0.05 %)
Moving distance of probe 20mm
Power: 220V /50HZ/10W or 110V /60Hz/10W
Dimension: (320 * 200 * 100) mm3
YD-2 TABLET HARDNESS TESTER
Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard(Tablet hardness tester) Q/12XQ0186-2010
Features: The tablet is loaded artificially and pressed automatically. There is high accuracy press sensor and hardness data is displayed on LED. It tests tablet hardness continuously. The biggest number is 100 pieces of a group. Time of testing will be saved by directly measuring the diameter. Test data is displayed and locked automatically, so can test be reset and cycled. It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets. The parameters can be preset at any time. Either preset or real data is displayed on the LED. Automation: auto-test, auto-diagnose, auto-alarm. Specifications:
Hardness range: 2~199.9N
Hardness accuracy: Max. ±0.05%
Probe procession range: 3~40mm
Test period: 20S/PCS
Max number in each group: 100 PCS
Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension: 500*300*160 mm3
YD-3 TABLET HARDNESS TESTER
Tablet hardness tester is an instrument used for detecting breaking hardness of tablet.
Features:
1 The tablet is loaded artificially and pressed automatically.
2 There is high accuracy press sensor and hardness data is displayed on LED.
3 It tests tablet hardness continuously. The biggest number is 100 pieces of a group.
4 Time of testing will be saved by directly measuring the diameter.
5 Test data is displayed and locked automatically, so can test be reset and cycled.
6 It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
7 The parameters can be preset at any time. Either preset or real data is displayed on the LED.
8 Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter:
Hardness range (2-199.9) N
Hardness accuracy Max ( ±0.05%)
Diameter range for test product (3-40) mm
Max number in each group ≤100 tablets
Test time per tablet 20S/P
Working time continuously More than 24hours
Power 220V/50HZ/60W
Dimension 400x240x160mm3
