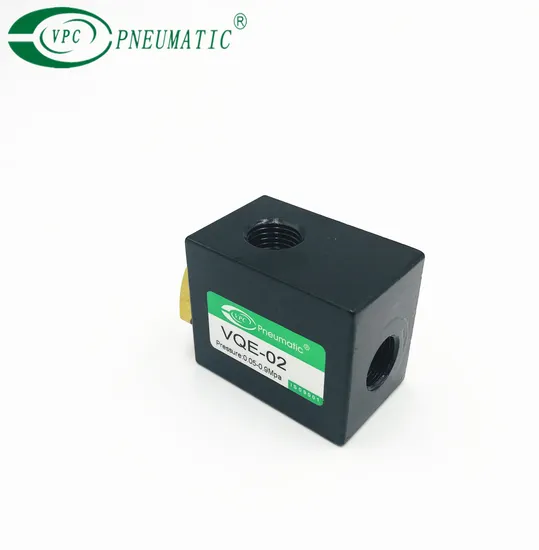

Vqe-02 Quick Exhausting Valve
| US$2.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QE-01 QE-02 QE-03 QE-04 QE-06
Material
Aluminium Alloy
Connection Form
Thread
Structure
Tubular
Pressure
Low Pressure
Function
Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence
Sealing Form
Gland Packings Globe Valve
Flow Direction
Bidirectional
Standard
JIS
Application
Industrial Usage, Water Industrial Usage, Household Usage
Working Pressure
0.05-0.9MPa
Max Pressure
1.0MPa
Transport Package
Inner Box Outer Cartons Pallets
Specification
G1/8"-G3/4"
Trademark
VPC Pneumatic
Origin
China
HS Code
8481802190
Production Capacity
500000PCS/Month
Product Description
Model : VQE-01 VQE-02 VQE-03 VQE-04 VQE-06
Medium : Clear air
Material : Aluminum
Temperature : 0-60
Pressore : 0.05-0.9Mpa
Max Pressure : 1.0Mpa
The accessory control valves are not usually used in the unit pneumatic system, mainly work with other directional valve. Including speed control valve, one way valve, slide valve, exhaust valve etc. These valves supply the great assistance to the directional valve, in order to complete the whole control in the pneumatic system.
QE Series Quick Exhaust Valve
Type: working Pressure: 0-8Bar, Working Temperature: -5-80° C
Model: QE-01/02/03/04/06
SIZE: 1/8", 1/4", 3/8", 1/2", 3/4"
QE | 03 |
| | |
Series Code QE:Quick Exhaust Valve | Joint Pipe Bore 01:G1/8" 02:G1/4" 03:G3/8" 04:G1/2" 06:G3/4" 08:G1" |
Model | QE-01 | QE-02 | QE-03 | QE-04 | QE-06 |
Joint pipe bore | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" |
Effective section area | 16 mm2 | 27.5 mm2 | 28mm2 | 71mm2 | 72.5mm2 |
Working medium | Air | ||||
Working-pressure range | 0~1.0Mpa | ||||
Operating temperature range | 0~60°C | ||||
