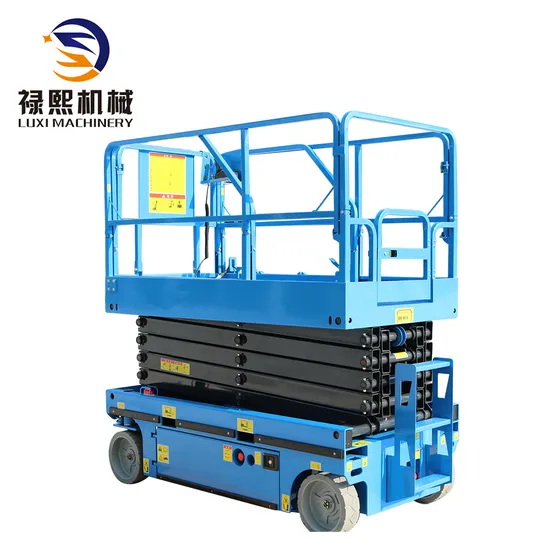

3m 6m 8m 10m 12m 16m Full Automatic Self-Propelled Hydraulic Scissor Lift with 230kg Lifting Load for Warehouse Use

3m 6m 8m 10m 12m 16m Full Automatic Self-Propelled Hydraulic Scissor Lift with 230kg Lifting Load for Warehouse Use

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AWPS2358HD
Application
Suitable for Industrial and Mining Workshops, etc.
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
GS, CE, ISO 9001
Lifting Height
3m-16m
Lifting Load
230kg-500kg
Color
Customized
Optional Configuration
Customized
OEM
1
Transport Package
Wooden Package or PVC Foil
Specification
The Finished Products are subject to the actual Di
Trademark
Luxi Machinery
Origin
China
HS Code
84289090
Production Capacity
1000sets/Year

Product Description

3m 6m 8m 10m 12m 16m Full Automatic Self-Propelled hydraulic Scissor Lift with 230kg Lifting Load for Warehouse Use
Advantage: 12 years lift platform manufacturing enterprise integrating R&D, production and sales. Experienced export team World famous brand spare parts Quick responses For after-sale service,we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply 24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.
Parameters
Model AWPS2358HD AWPS4679HD AWPS4696HD AWPS3212HD AWPS2014HD
Remarks:
1.All the Diemensions here is for your reference,The Finished Products are subject to the actual Dimensions.
2.We accept customization.
Safe Working Load(kg) 230 460 460 320 200
S.W.L on extension platform(kg) 113 113 113 113 113
Number of passengers (indoor) 2 2 2 2 2
Number of passengers (outdoor) 1 1 1 1 1
Max working height(m) 7.8 9.9 11.6 13.8 15.7
Max height of platform(m) 5.8 7.9 9.6 11.8 13.7
Overall length(m) 2.06 2.72 2.72 2.72 2.86
Overall width(m) 0.76 1.15 1.15 1.15 1.25
Overall length (rails up)(m) 2.19 2.4 2.4 2.52 2.63
Overall length (rails down)(m) 1.77 2 2 2.12 2.26
Platform size(m) 1.88x0.76 2.5×1.12 2.5×1.12 2.5×1.12 2.63×0.93
Platform extension size(m) 0.9 0.9 0.9 0.9 0.9
Min ground clearance(stowed)(m) 0.09 0.11 0.11 0.11 0.11
Min ground clearance(raised)(m) 0.019 0.019 0.019 0.019 0.019
Wheel base(m) 1.57 2.09 2.09 2.09 2.23
Turning Radius (inside /outside)(m) 0.5/1.9 0.5/3 0.5/3 0.5/3 0.5/3.2
Lifting/driving motor(V/kw) 24/3.2 24/3.2 24/3.2 24/4.5 24/4.5
Travel speed (stowed)(km/h) 3.5 3.5 3.5 3.5 3.5
Travel speed (raised)(km/h) 0.8 0.8 0.8 0.8 0.8
Up/down speed(s) 24/31 47/40 50/44 61/52 70/52
Battery(Ah) 4x6/232 4×6/232 4×6/232 4×6/280 4×6/280
Charger(VA) 24/25 24/25 24/25 24/30 24/30
Gradeability 0.250 0.250 0.250 0.250 0.230
Max working slope 1.5°/3 2°/3 2°/3 1.5°/3 1.5°/3°
Tire(mm) φ305x100 φ406×125 φ406×125 φ406×125 φ406×125
Overall weight(kg) 1420.00 2590.00 2670.00 3208.00 3300.00


FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 -30 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 12 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
