Quality Assured Black Special Pattern Shaped Rubber Conveyor Belt Cc Nn Ep 100-5400n/mm

Product Description

Quality Assured Black Special Pattern Shaped Rubber Conveyor Belt Cc Nn Ep 100-5400n/mm
Product Desription
1. Specification

Fabric Type	Fabric Structure		Fabric Specs	Fabric ply No.	Belt width (mm)	Length (m)	Cover Thickness (mm)
	Warp	Weft					Top	Bottom
Cotton			CC56	2-6	400-2200	5-500	2-12	1.5-6
Polyester (EP)	Polyester (E)	Polyamide (P)	EP100	2-6	400-2200	5-500	2-12	1.5-6
			EP125	2-6	400-2200	5-500	2-12	1.5-6
			EP150	2-6	400-2200	5-500	2-12	1.5-6
			EP200	2-6	400-2200	5-500	2-12	1.5-6
			EP250	2-6	400-2200	5-500	2-12	1.5-6
			EP300	2-6	400-2200	5-500	2-12	1.5-6
			EP400	2-6	400-2200	5-500	2-12	1.5-6
			EP500	2-6	400-2200	5-500	2-12	1.5-6
Nylon (NN)	Nylon-66 (N)	Nylon-66 (N)	NN100	2-6	400-2200	5-500	2-12	1.5-6
			NN125	2-6	400-2200	5-500	2-12	1.5-6
			NN150	2-6	400-2200	5-500	2-12	1.5-6
			NN200	2-6	400-2200	5-500	2-12	1.5-6
			NN250	2-6	400-2200	5-500	2-12	1.5-6
			NN300	2-6	400-2200	5-500	2-12	1.5-6
			NN400	2-6	400-2200	5-500	2-12	1.5-6
			NN500	2-6	400-2200	5-500	2-12	1.5-6

2. Physical Properties of Rubber Cover (before aging) DIN22102,GB/T7984 Standard

Grade	Tensile Strength/Mpa ≥	Breaking Elongation/% ≥	Abrasion Loss/mm3 ≤
H	24	450	120
D	18	400	100
L	15	350	200
DIN W	18	400	90
DIN X	25	450	120
DIN Y	20	400	150
DIN K	20	400	200

Rubber of DIN 22131 (K grade) is suitable for flame resistant steel cord conveyor belts. 3. Ply Adhesion

Item	Ply to ply	Rubber cover to ply
		Rubber cover thickness ≤1.5mm	Rubber cover thickness >1.5mm
All samples average value/ (N/mm) ≥	4.5	3.2	3.5
All samples min peak value/ (N/mm) ≥	3.9	2.4	2.9
Note: All samples max peak value is not more than 20N/mm.

Application

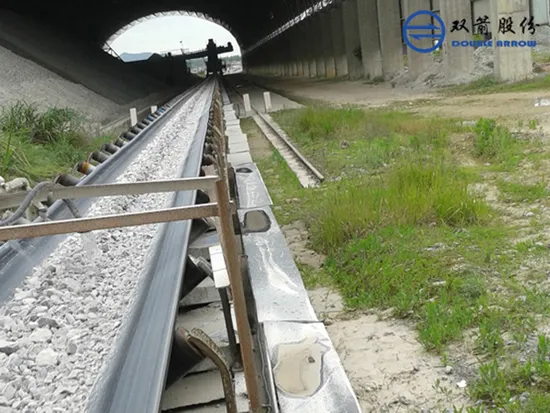

Pattern conveyor belt (chevron conveyor belt) is suitable for transporting powdery, granular and little lump materials at angle 0~40 degree. Pattern shape can be made as per clients' requirement with different pattern height.
Why Choose Us
1. Certificate
2. R&D Center and Testing Lab
Packing & Shipping
FAQ
Q1. Are you a manufacturer?
A. Yes, we have been producing and selling conveyor belts since 2009.
Q2. Can you produce belts with my own brand?
A. Yes, we can.
Q3. What about the lead time?
A. 1) 5~7 days for sample (free sample)
2) 15~30 days according to order quantity
Q4. How about payment terms?
A. 1) We prefer T/T, 30% advance paid upon order, rest upon b/l copy, or
2) Sight or deferred L/C, or
3) Other payment terms approved.
Q5. How do you ensure product quality?
A. 1) We have a R&D center of an independent design and developing capacity
2) We an independent testing laboratory with full-property testing capacity of conveyor belt. We can test various materials, rubber, fabric, semi-finished product and finished product.
