US$3,500.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Maximum Particle Size(mm)
60
Water Pump Motor(Kw)
0.55
Maximum Towing Speed(Km/H)
20
Overall Dimensions(mm)
3210*1870*3420
Transport Package
Customized
Specification
Casting steel
Production Capacity
10000sets/Year
Product Description
Product Description
JZC350 is a double cone reverse discharge, manual clutch skip, mobile concrete mixer, can mix plastic and low flow concrete, suitable for general construction sites, road and bridge engineering and small and medium-sized concrete components factory.
JZC350A concrete mixer belongs to double cone, reverse discharge, mobile mixer, this machine is a new generation of concrete mixer independently developed by our factory, automatic feeding, replacing the manual clutch of traditional tipping mixer, this machine has convenient and simple operation, no daily replacement of brake pads, adjusting wire, slide plug excellent functions. It greatly saves the daily maintenance time and improves the production efficiency.
JZC350B concrete mixer belongs to double cone, reverse discharge, electric climbing bucket feeding, mobile concrete mixer.

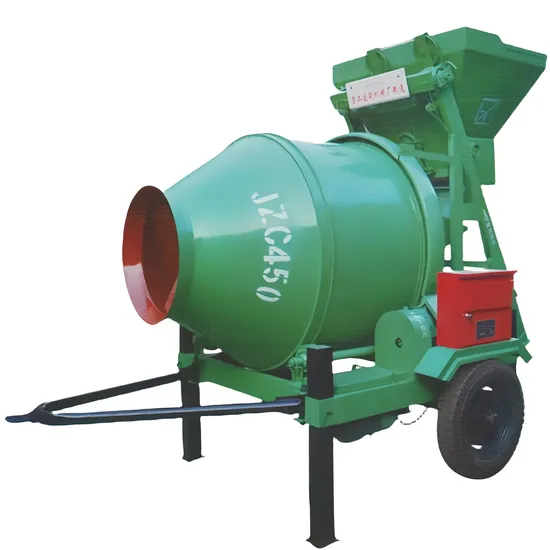

JZC450A concrete mixer belongs to double cone reverse discharge, mobile mixer, this machine is improved on the basis of JZC350A mixer, add large concrete mixer, better improve the work efficiency.
JZC450B concrete mixer belongs to double cone reverse discharge, electric climbing bucket feeding, mobile mixer. This series of products is on the basis of JZC350B mixer, plus large concrete mixer.
JZM concrete mixer belongs to double cone reverse discharge, friction wheel drive, climbing bucket feeding and mobile concrete mixer, which has the advantages of low noise and smooth operation. This product is divided into JZM350, JZM450 (plus large) two models, suitable for general construction sites, roads, Bridges hydropower projects, especially suitable for urban residential area construction.
Characters:
JZM500D concrete mixer belongs to double cone, reverse discharge, mobile mixer, this product adopts friction wheel drive, the perfect combination of screw and conveyor belt, saving the time of the traditional mixer hopper rising and falling, the machine from feeding mixing to discharging than the traditional mixer saves half the time, greatly saves the working time and saves the labor cost. This machine does not have the rise and fall of the traditional mixer, which increases the safety of the staff, eliminates the lifting part that is prone to damage and failure of the traditional mixer, saves the maintenance time and further improves the production efficiency.
Features
1. Heavy duty, reversing drum, hydraulic feed concrete mixer,2. High mixing efficiency, it is enable the mixer to produce up to 40 batches per hour.3. 14 cubic meters output, standard machine includes water tank with water meter,4. Hand/electric start, air cooled diesel engine / water cooling diesel engine are optional,5. Towable chassis with two pneumatic-tired wheels,6. Jacking system allows wheel removal for storage during long-term use
Product Parameters
Model | JZC350 | JZC350A | JZC350B | JZC450A | JZC450B | JZM350 | JZM450 | JZM500D |
Form | Gear ring drive, manual clutch tipping bucket feeding | Gear ring drive, electric bucket feeding | Gear ring drive, climbing bucket feeding | Gear ring drive, electric bucket feeding | Gear ring drive, climbing bucket feeding | Friction wheel drive, climbing bucket feeding | Friction wheel drive, climbing bucket feeding | Friction wheel drive, screw with belt conveyor feeding |
Discharge Volume (L) | 350 | 350 | 350 | 450 | 450 | 350 | 450 | 500 |
Feed Volume (L) | 560 | 560 | 560 | 700 | 700 | 560 | 700 | 800 |
Maximum capacity(m³/h) | 14 | 14 | 14 | 17 | 17 | 14 | 17 | 18-20 |
Mixer speed(r/min) | 14 | 14 | 14 | 14 | 14 | 13 | 13 | 16 |
Maximum particle size(mm) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Mixer Motor (kw) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5*2 |
Hoister Motor(kw) | None | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4*2 |
Water Pump Motor(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 |
Maximum towing speed(km/h) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Overall Dimensions(mm) | 2810*2100*3070 | 2810*2100*3070 | 3210*2100*3270 | 2960*2100*3320 | 3360*2100*3520 | 3210*1870*3420 | 3360*1870*3670 | 4200*2100*4600 |
