Air-Cushion / Open / Hydraulic Type Headbox for Paper Production Making Machine
| US$4,000.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Aotian
Sheet Former Type
Headbox
Paper Thickness
Normal Specification Paper
Automation
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
6month
Name
Headbox
Net Paper Width
4100mm
Jet Width
4500mm
Wire Section Width
4700mm
Working Speed
400m/Min
Cone Return Flow
10%
GSM
25-90G/M2
Color
Customised
Transport Package
Standard
Specification
Customizing
Trademark
Aotian
Origin
Henan, China
HS Code
84391000
Production Capacity
5/Month
Packaging & Delivery
Package Size
300.00cm * 80.00cm * 150.00cm
Package Gross Weight
500.000kg
Product Description

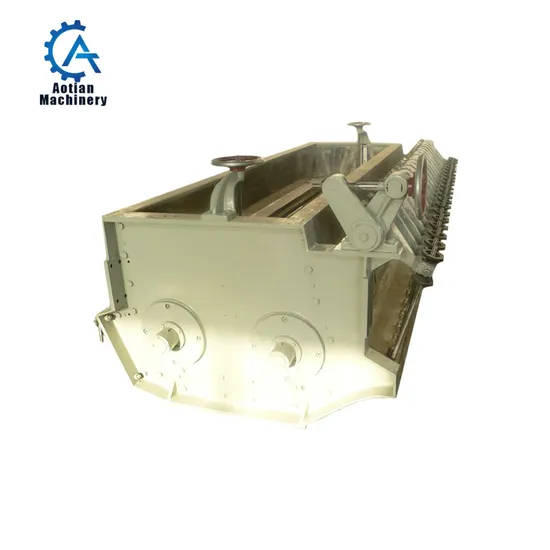

Air-Cushion / Open / Hydraulic Type Headbox for Paper Production Making MachineProduct Description Headbox for paper making mill machine ,as an important paper machine part, is the first part from pulp making to paper production. Its structure and properties are decisive for the formation of the paper and the quality of the paper. Can effectively disperse fibers. The high turbulence headbox produces high-intensity micro-motion, which effectively disperses the fibers, prevents fiber precipitation and re-flocculation, and effectively increases the strength of the sheet. Distribute the paper stock evenly along the paper machine. (Determining the horizontal quantitative distribution of the web) The shotcrete is stable, ensuring that the pulp speed is coordinated with the web speed. (Determining the longitudinal quantitative distribution of the web).
| Air-cushioned headbox | ||
| Model | 3800 | 4200 |
| Net paper width (mm) | 3800mm | 4200mm |
| Jet width (mm) | 4150mm | 4550mm |
| Working speed (m/min) | 280-480m/min | 280-480m/min |
| Diameter of holyroll (mm) | Φ219 | Φ219 |
| Distribution of slurry/pulp | Square cone pipe cloth slurry Step diffuser | Square cone pipe cloth slurry Step diffuser |
| Arrangement | Left or right hand | Left or right hand |
| Outline size (L*W*H M) | 5600*2450*1350 | 6000*2450*1350 |
