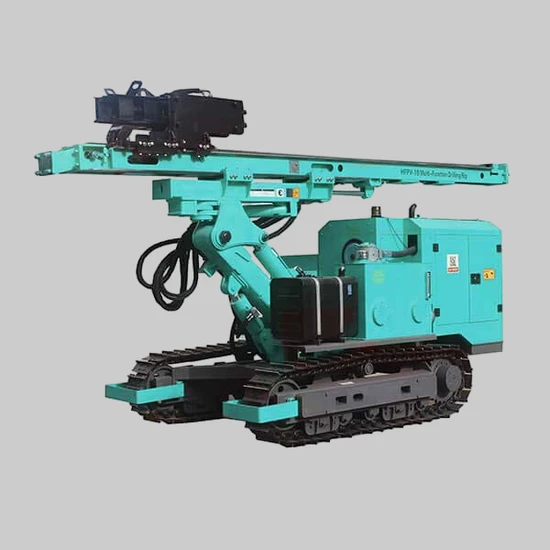

Solar Power Mini Photovoltaic Truck Mounted Crawler Portable 150m Ground Core Water Well Drilling Pile Driver Rig
| US$10,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HFPV-1
Pile Hammer Type
Hydraulic Hammer
Power Source
Diesel
Motor Power
84kw
Noise
Without Noise
Certification
EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Impact Frequency
450--800bpm
Impact
1000j
Work Pressure
130---150bar
Once Promotion
4100mm
Max. Ramming Length
6000mm
Skid Pitch
95°
Host Power
84kw
Dimension(L*W*H)
6240*2250*3000mm
Weight
7350kg
Walk Speed
0--2.5km/H
Transport Package
Standard Export Packing
Specification
CE, ISO
Trademark
HANFA
Origin
Zhengzhou City, China
HS Code
843041
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
3600.00cm * 1300.00cm * 1700.00cm
Package Gross Weight
3600.000kg
Product Description
Product Description ApplicationThe drilling rig is mainly used for piling of solar photovoltaic power plants, piling of highway guardrails, construction of highway guardrails and other projects.
Technical Data
| Impact frequency(bpm) | 500--950 |
| Impact(j) | 750 |
| Work pressure(bar) | 130---180 |
| Once promotion(mm) | 5000 |
| Skid pitch(°) | 120 |
| Boom swing angle(°) | left and right total 50 |
| Swinging angle of skid(°) | left and right total 40 |
| Host power(KW) | 84 |
| Climb ability(°) | 35 |
| Weight(Kg) | 5800 |
| Walk speed(km/h) | 0--2.5 |
| Dimension(L*W*H)(mm) | 6500*1970*2680 |
| Note: The Company's products continued to improve, various design and technical specifications may change at any time, without any additional notice or obligation. | |
FAQ
1,Are you trading company or manufacturer? We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
