Online Pipe Line Laser Plastic Printing Marking Machine for PVC Date Number Logo Auto Mark

Product Description

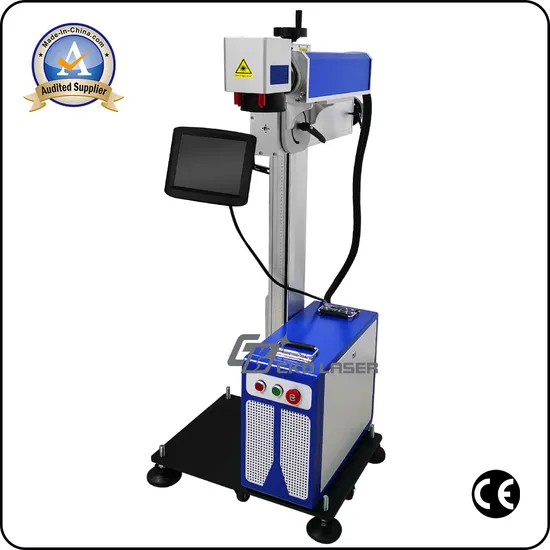

LASER JET PRINTING / MARKING MACHINE
CKD-FFLA Series, fiber laser
SOLUTION
Automatically marking different series numbers, bar codes or QR codes on kinds of material.
1. set in touch controller.
2. put material on conveyor.
3. machine detects the material once it comes in laser marking scope.
4. laser output and mark set content in step one.
Each marking content can be different, for example, 001, 002, 003, 004… or 002, 004, 006, 008… or 18:31:01, 8:31:02, 8:31:03, 8:31:04…and so on.
Application material: all the metal and some non-metal.
(1) Metal: Cast iron, stainless steel, aluminum, magnesium alloy, zinc alloy, copper, nickel plating, galvanized and so on. Application Examples: Mobile phone decoration, MP4 shell, hardware pieces, hutch defends hardware, clock and watch shells, medical equipment, tools, accessories, jewelry accessories, auto parts etc.
(2) Non-metal: ABS, PC, PE, PP, Epoxy resin. Application Examples: Keyboard, buttons, charger, electronic components, integrated circuit (IC), electrical appliances, etc.
ADAPTABLE
CKD-FFLA can match your pipe line/ produce line to work, without having to install on your original equipment.
Notice: we don't supply conveyor.
For CKD-FFLA, the Z-axis, Y-axis are adjustable.
The laser path also can change angles for more applications of different shapes of materials.
The direction of marking head (galvanometer + lens) is also adjustable.
For example:
Those characters allow multi-direction marking possible.
CONFIGURATION

	CKD-FFLA-20	CKD-FFLA-30	CKD-FFLA-50	CKD-FFLA-60
Laser source	20W, fiber	30W, fiber	50W, fiber	60W, fiber
Frame	Adjustable Y-axis, Z-axis, laser path and marking head, moveable base board, power cabinet.
Touch controller	English language
Sensing system	Sensors, meter wheel
Focus tool	2 built-in the galvanometer
Marking scope	100*100mm	100*100/150*150 /200*200mm	100*100/150*150 /200*200mm	100*100/150*150 /200*200mm
Voltage	220V 50Hz or 110V 50Hz
Notice: need to tell us your application voltage in advance

MARKING SOFTWARE
1. Standard touch controller:
2. Customized marking function for signal interaction with other equipment:
Applicable industry:
Auto parts, digital products, communications, electronic components, building materials, kitchen utensils, jewelry, gifts, cleaning products, pharmaceutical, advertising, solar products, daily necessities, and hardware and other industries.
Specific application examples:
Pipeline marking to improve work efficiency, such as, product serial number, QR code and barcode marking, company logo, decorative pattern marking, etc.
