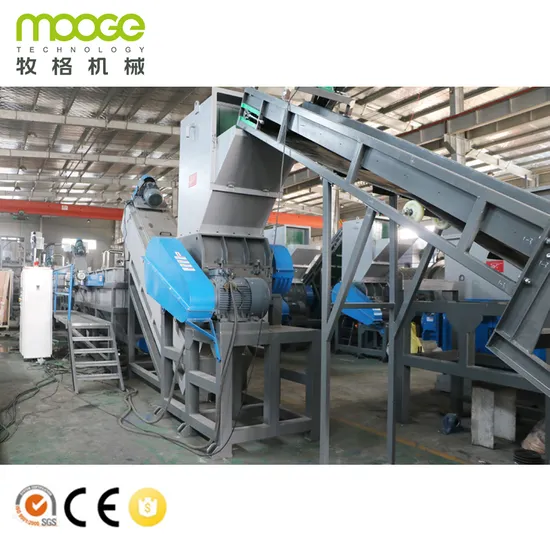

High Capacity Plastic PP PE Bottle Crushing Washing Recycling Machine Line

Product Description

Product Description
This High Capacity Plastic PP PE Bottle Crushing Washing Recycling Machine Line is used to recycling the waste HDPE/LDPE/PP bottles and buckets, hollow container and so on. The waste dirty rigid pe pp bottles/buckets go through crushing, washing, drying, collecting process will turn to be clean rigid flakes for further pelletizing.
Product Parameters
The waste bottle pp pe recycling line hdpe bottle washing line we made with capacity from 300kg/h to 3000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's requirements.

Model	Capacity	Installed Power	Water Supply	Manpower	Area Required
MEB-300	300 kg/hr	100 KW	4-5 m3/hr	3-4 Person	20*4.5*5m
MEB-500	500 kg/hr	115 KW	5-6 m3/hr	4-6 Person	20*4.5*5m
MEB-1000	1000 kg/hr	125 KW	7-8 m3/hr	8-10 Person	23*5*5m
MEB-1500	1500 kg/hr	180 KW	8-10 m3/hr	12-14 Person	23*5.5*5m
MEB-2000	2000 kg/hr	225 KW	10-15 m3/hr	16-18 Person	28*5.5*5m
MEB-3000	2000 kg/hr	330 KW	15-20 m3/hr	18-20 Person	35*5.5*5m

We adopted well-known brand for the main motor, necessary parts of the machine. We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request.

Item	Specification
Raw Material	Waste Rigid Plastic PE bottle, HDPE barrel, PP bucket, PS Box, ABS shell, etc
Finished Product	Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List	Belt Conveyor, Shredder, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Hot Air Pipeline, Packing Silo
Machine Material	Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components	NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components	ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period	One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service	Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;

Detailed Photos
Plastic Crusher Machine --With water inlet do wet crushing
--The rotary and fixed blades fixed by screw inside the crusher are more wider and durable
--Crusher hopper is open by screw motor which save manpower
--Bearing house is installed outside of the crusher chamber so no dirty goes inside
Screw Loader Machine --Up and down both mounted with bearing design ensure the low maintenance and long use life.
--With water injection system to cleaning the screen,bottom with water drain system
--The machine part contact with water made by SUS304 good steel
Floating Washing Tank
--The roller is specially made can have more washing for plastic flakes but less water take out
--Bottom with positive and negative screw to push the dirty into the middle for easily drain out by side screw loader
--The washing tank can be made with cover and double layer temperature protection for hot water washing
Horizontal Dewatering Machine
--With high raotary speed reach up to 1500rpm with better effect for removing the water
--With the famous SKF roller bearing fixed outside for long lifespan
--Inside with mesh layer, mesh holes with diamater 3mm, mesh is made by SUS304
--With water spray system to clean the mesh
Customer Onsite
We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the long-term business partner all over the world.
Company Profile
We have more than 8500 square meters of factory and workshop, with more than 10 years' experience and sold different plastic recycling machine to at least 60 countries all over the world.
Related Product
We have many type of plastic recycling machine that can deal with the material with your special requirement.
Marketing Campaign
We attend the CHINAPLAS every year and take with our machine to test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc.
Sincerely welcome to our factory for visit and discuss technical issues.
FAQ
