Efficient Sh-Zddp-32 Three-Phase Fully Automatic Steel Wire Rope Winding Equipment

Product Description

Product Description

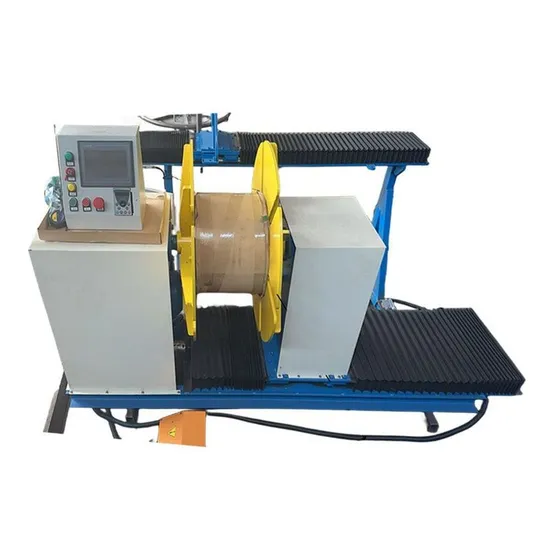

Automatic Winding Machine
This reversing machine is mainly designed for elevator steel wire ropes and oil ropes to be used separately. Solved the long-standing problems of people's difficulty in loading plates, manual labor intensity, and uneven and uneven plates in the past, improved production efficiency and safety, Enterprises, workshops, processing workshops, storefront operations, and other pieces can all be used.
After setting the relevant parameters on the touch screen, one-click start, the motor rotates forward, and drives the winding mechanism to run, At the same time, the cable puller arranges the cables and the meter counter records the meters, it can slow down in advance, stop running until the meter is reached, and perform unloading and packaging work, After resetting, proceed to the next work, Easy to operate, convenient for one person to work, timesaving and labor-saving.
Working voltage: SH-ZDDp-32 external 380V, three-wire four-wire AC power supply. The neutral line must reconnected.
Operating speed: The maximum speed regulation of the frequency converter is 50HZ. But it is not recommended to operate at the highest speed.
Maximum wire diameter: 32MM.
Product Parameters

WINDING MACHINE SPECIFICATION
Product Name	Automatic Winding Machine
Keywords	Winding Machine
Series Model	SH-ZDDP-32
Overall Size	1800mm*1300mm*1100mm
Net Weight	500KG
Wiring	2.5 Square Copper Core Cable
Wiring Method	Three-Phase Five-Wire Wiring
Working Voltage	Not Exceeding 380V
Working Power Supply	Three-Wire Four-Wire AC Power Supply
Operating Speed	Inverter Maximum Speed Regulation 50HZ
Maximum Wire Diameter	32mm
Usage	Enterprises, Workshops, Processing Workshops, Store Operations, Etc.
Customization	Accept
MOQ	Low MOQ
Sample	Accept
After Sales Service Is Guaranteed.

Detailed Photos
INSTALLATION AND WIRING -01
Forklifts can be used to lift the chassis for loading and unloading, or lifting tools such as cloth bags can be used for lifting, Fix the equipment with expansion screws.
INSTALLATION AND WIRING -02
The wiring adopts a 2.5 square copper core cable and three-phase five-wire wiring. The fluctuation of power supply voltage shall not exceed 380V ± 15%. After correctly connecting the wires, close the circuit. Joand the motor can rotate normally.
INSTALLATION AND WIRING -03
The wiring adopts a 2.5 square copper core cable and three-phase five-wire wiring. The fluctuation of power supply voltage shall not exceed 380V ± 15%. After correctly connecting the wires, close the circuit. Joand the motor can rotate normally.
SECURITY AND MAINTENANCE -01
During the work process, it is important to coordinate the running speed well and avoid safety accidents caused by high-speed operation.
Do not overload the operation to avoid damaging the equipment or burning out the motor and electrical components.
SECURITY AND MAINTENANCE -02
Regularly clamp lubricating oil on the gearbox and observe the temperature rise and noise of the motor. if the temperature rise exceeds 85 degrees, stop the machine for inspection.
For automatic clamping mechanisms, do not force prolonged clamping actions to avoid equipment damage or burning out motors and electrical components
