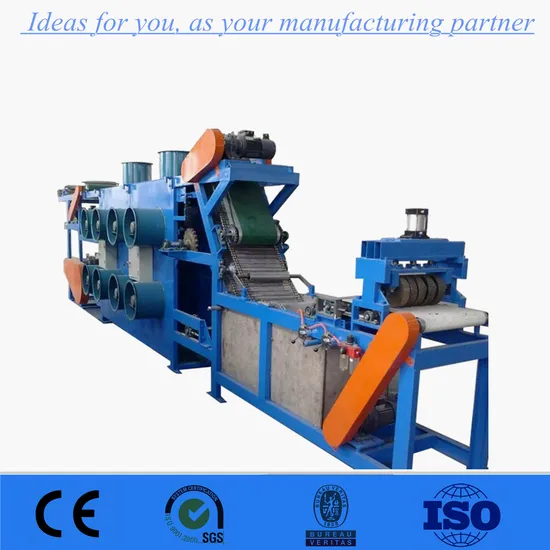

Floor Vertical Rotation Type Rubber Film Sheet Cooling Machine Line /Rotary Batch off Cooler

Product Description

floor vertical rotation type rubber film sheet cooling machine line /rotary batch off cooler Product Description
batch off cooler is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.
batch off cooler is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.
Features:
batch off cooler consists of take-off, print, slitting, transportation, immersing insulation, lifting, sheet cooling fan with low power, low noise, high wind pressure and large capacity. This machine adopts PLC auto control system and measures with electric balance. It has two kinds of installation, floor type and high-frame type, for the user to choose
Advantages:
1.The operations of coating separant,air cooling,drying,cutting and wig-wag stacking are set in one single cooling machine,achieving continuous operation with higher efficiency.
2.Rubber sheet are soaked before coating separant ,so the coating effect is very good and no enviromental pollution.
3.Time of air cooling process for rubber sheet cooling is set very long, so cooling effect is excellent.
4.Rubber sheet can be cut into certain length during operation and the cutting length is adjustable.
5.With PLC control and frequency-control speed regulation,it is very convenient to control the whole working process.
Factory Strength
Processing Workshop - 1 Processing Workshop - 2
90% frame and parts of machine is make by ourselves. Various types of processing machine.

Assembly Workshop Mold Workshop
Clear functionality of each area, Tidy and clean. More than 10 sets machine for making tire and tube mold. Detailed Photos

No.	Item	Type
1	Size of rubber batch off cooling machine	XPG-600,XPG-800,XPG-900
2	Size of matched rubber mixer	75L, 90L, 110L,140L,160L,190L,270L,320L,370L(400L),420L,580L,620L,650L
3	Cooling type	Hanging type cooling, conveyer belt cooling, drum type cooling
4	Structure	Floor type, Frame type

Product Parameters

Model	XPG-600	XPG-800	XPG-900
Max. rubber sheet width	600mm	800mm	900mm
The thickness of the rubber sheet	4~10mm	4~10mm	6~12mm
Linear speed of taking-in conveyor	3~24m/min	3~35m/min	4~40m/min
Linear speed of sheet hanging bar	1-1.3m/min	1-1.3m/min	1-1.3m/min
Hanging height of the sheet hanging bar	1000-1500m	1000-1500m	1000-1500m
Number of cooling fans	12	20~32	32~34
Power	16KW	25~34KW	250KW
Overall Dimension(mm)	14250X3300X3405	16800X3400X3520	6000X2850X4450

Packaging & Shipping
batch off cooler is big size, so the machine is directly loaed into 40 foot container. Ane proper treated(for anti rust and dust for some parts) and well fixed in the container.
Company Profile
Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
FAQ
Q1:Why choose Us?
1.More than 20 years history of EVERTECH MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.

Q3:What's the warranty statement?
EVERTECH MACHINE warrants all the products manufactured by EVERTECH MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, EVERTECH MACHINE warranty covers ONLY the product itself.
EVERTECH MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by EVERTECH MACHINE,EVERTECH MACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about EVERTECH oversea service ?
EVERTECH will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile EVERTECH has branches in different areas like north America , Southeast Asia , Brazil etc , etc .
