PB/ SPB Particle Board Making Machinery Production Line

PB/ SPB Particle Board Making Machinery Production Line

US$5,000,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Customization
Type
Hot Press Machine
Automatic
Automatic
Certification
CE, ISO
Design Capacity
50, 000-300, 000cbm/Year
Size
1220*2440mm
Thickness
6~25mm
Turnkey Service
Yes
Transport Package
Standard
Specification
Customization
Trademark
CMT
Origin
China
Production Capacity
50 Sets/Year

Product Description

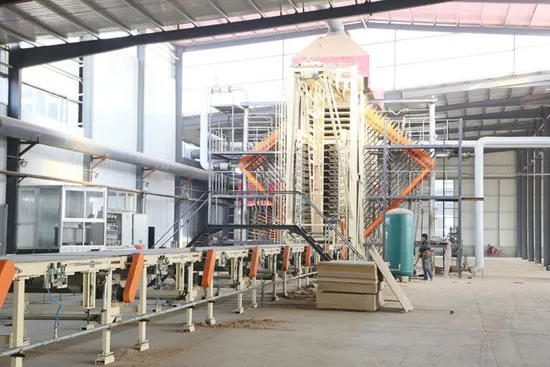

Particle Board (PB) Making Machine Production Line
Particle board - also known as particleboard, low-density fibreboard (LDF), and chipboard - is an engineered wood product manufactured
from wood chips, sawmill shavings, or even sawdust, and a synthetic resin or other suitable binder, which is pressed and extruded.
Oriented strand board, also known as flakeboard, waferboard, or chipboard, is similar but uses machined wood flakes offering more strength.
All of these are composite materials that belong to the spectrum of fiberboard products.
Characteristics
Particle board is cheaper, denser and more uniform than conventional wood and plywood and is substituted for them when cost is more important than strength and appearance. Particleboard can be made more appealing by painting or the use of wood veneers on visible surfaces.
Though it is more dense than conventional wood, it is the lightest and weakest type of fiberboard, except for insulation board. Medium-density fibreboard and hardboard, also called high-density fiberboard, are stronger and denser than particleboard. Different grades of particleboard have different densities, with higher density connoting greater strength and greater resistance to failure of screw fasteners.
A significant disadvantage of particleboard is its susceptibility to expansion and discoloration from moisture absorption, particularly when it is not covered with paint or another sealer. Therefore, it is rarely used outdoors or in places where there are high levels of moisture, except in bathrooms, kitchens and laundries, where it is commonly used as an underlayment shielded beneath a moisture resistant continuous sheet of vinyl flooring.
In dry environments, veneered particleboard is preferred over veneered plywood because of its stability, lower cost, and convenience.

Chipper Section
NO. NAME SPECIFICATION QTY. (KW) REMARKS
1001 drum chipper main machine dimensions: 2200*2150*1500mm 1 119
1002 belt conveyor dimensions:
10000×600×500mm
1 2.2
1003
magnet
dimensions:
400×200×200mm
1
1004 chip silo 100 m3

Flake Section
NO. NAME SPECIFICATION QTY. (KW)
2001 belt conveyor dimensions:
6000×600×500mm
1 2.2
2002 pulverizer Model: 150#,
electric motor: 30KW,
sieve mesh number: 12, 18
Dimensions:
1300x1000x1100mm
4 120
2003 flake pipeline Dimensions:
Ф220x7000mm
2 5
2004 flake silo 70m3 1 5.5
2005 hopper Dimensions:
4000×5000×1000mm
1
2006 screw feeding out pipe Dimensions:
4000×1000×500mm
1 7.5
2007 belt conveyor dimensions:
6000×600×500mm
1 2.2
2008 magnet dimensions:
400×200×200mm
1

......
ITEM

INDEX

Raw Material


Pine,
Poplar,
Fir
Glue Type


MDI,
PF,
UF
Hot Press


Multi-opening Press,
Continuous Press
(4 ft, 8 ft, 12 ft)
Design capacity


50000,
150000,
250000 Cubic Meters

If you are interested, do not hesitate to contact me.
REGARDS!
