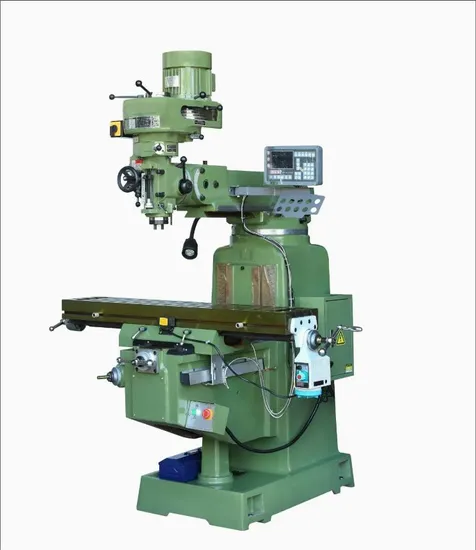

High-Precision Vertical Milling Machine with 4m Lifting Table Features

Product Description

Unleash the power of precision with our 4m Vertical Lifting Table Milling Machine, equipped with the versatile R8/Nt30 Spindle Universal Milling Machine. Perfectly engineered for exceptional milling performance.
Product Description
Mechanical CharacteristicsCrafted from top-grade Meehanna cast iron, our machine's casting delivers outstanding rigidity, steadfast stability, and zero deformation, ensuring peak performance and reliability.Harness the strength of precision with our spindle, featuring a precision bearing combination that guarantees formidable cutting force and impeccable accuracy.The innovative inverted hanging design of our end milling head offers superior accuracy and user-friendly operation, complete with hassle-free braking. Customers can also choose products with specialized features tailored to their needs.Our three-axis screw is enhanced with advanced phosphorus meter copper nuts, offering exceptional wear resistance and an impressively long service life.Our XY shaft slide undergoes high-frequency ripening treatment, delivering excellent wear resistance and extended operational lifespan.Seamless performance is achieved with our efficient lubrication system, ensuring smooth slide operations every time.
Product Parameters

Product Name
Product Name	Milling machine
Product model	4M
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	760MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
Principal axis coefficient	Spindle taper	R8/NT30
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° fore-and-aft
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, R8/NT30 chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.
