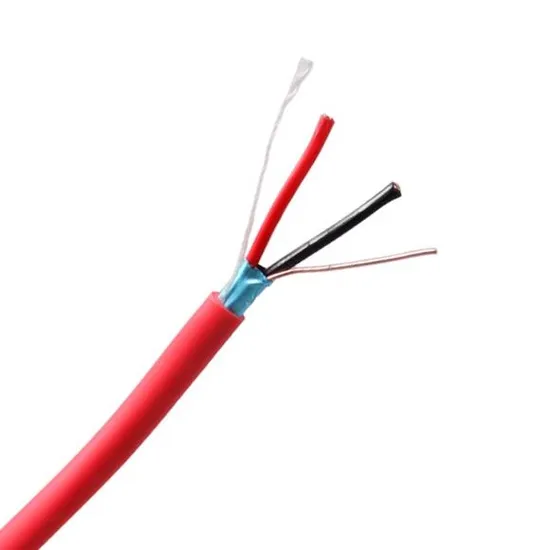

Fire Resistant Instrument Cable 1.5mm*2core Fire Alarm Cable 2*1.5mm2 2 Cores 1.5 mm2 Fire Resistance Cable

Product Description

Welcome to Cambo manufacturers direct sales 15 years of Cable production experience Contact us at least 10% discount Product Description CAMBO PH30 PH120 Fire resistance resistant cable 2core or 4core 1.5mm or 2.5mm shielded fire alarm rated cable fire proof cable
fire alarm cable
Product parameters & details

Conductor Nominal Cross-section	Conductor construction	Insulation Nominal thickness	Max.Diameter of cable	Max.d.c resistance at 20	Min.Insulation resistance at 70	Current rating of cable in air at 40	Approx weight of cable
mm2	mm	mm	mm	Ω/km	mΩ.km	A	kg/km
2*0.75	2*1/0.97	0.6	4.6*7.1	24.5	0.012	12	39.6
2*1.0	2*1/1.13	0.6	4.8*7.4	18.1	0.011	14	46.2
2*1.5	2*1/1.38	0.7	5.3*8.5	12.1	0.011	18	61.8
2*2.5	2*1/1.78	0.8	6.2*10.1	7.41	0.010	25	92.2
2*4	2*1/2.22	0.8	6.7*11.1	4.61	0.0085	33	125.4
2*4	2*7/0.85	0.8	6.9*11.5	4.61	0.0080	33	133.1
2*6	2*1/2.76	0.8	7.5*12.5	3.08	0.0070	42	172.6
2*6	2*7/1.04	0.8	7.8*13.0	3.08	0.0065	42	182.5
3*0.75	3*1/0.97	0.6	4.6*9.6	24.5	0.012	10	55.8
3*1.0	3*1/1.13	0.6	4.8*10.1	18.1	0.011	12	65.5
3*1.5	3*1/1.38	0.7	5.3*11.7	12.1	0.011	15	88.5
3*2.5	3*1/1.78	0.8	6.2*14.0	7.41	0.010	21	133.0
3*4	3*1/2.22	0.8	7.0*15.8	4.61	0.0085	28	197.2
3*4	3*7/0.85	0.8	7.1*16.3	4.61	0.0080	28	198.7
3*6	3*1/2.76	0.8	7.5*17.5	3.08	0.0070	36	251.8
3*6	3*7/1.04	0.8	7.8*18.2	3.08	0.0065	36	266.3

*Fire Resistant Cables are manufactured with latest technology to ensure consistent quality and reliability.
*Conductor:Solid bare copper(IEC/EN228,BS 6360,VDE 0295,HD 383)
* Insulation:Fire resistant silicon rubber(HD 22.1,BS 7655 EI2),Colors:BS7671/HD308-S2/VDE0293-308(for more than 5 cores white
core/black numbered) *Separator:Polyester tape
* Drain Wire:0.8mm solid tinned copper
* Shield:Aluminium laminated polyester tape
* Sheath:HFFR,Red(RAL3000) or white;EN 50290-2,VDE 0207 HM2,BS 7655 LTS1/LTS3 Company Introduction CAMBO is a leading manufacturer of cables.We are specialized in producing and selling Communication cables with more than 15 years of experience.Our main popular products are Lan Cable,Fiber Optic Cable,Telephone cable,Alarm Cable,Network Accessories,Fiber Optic Accessories,and so on.Our products have passed UL, ISO9001:2000,CE,CPR,SGS and RoHS certificates.And our products have got the quality insurance commitments by China Pacific Insurance Company.Our products have been exported to Europe, South America, Southeast Asia, the Middle East, etc. Why Choose Us Certifications Products with international mainstream certificates UL,CPR,IOS9001,Rosh,CE,FCC Exhibition Packing&Shipping
