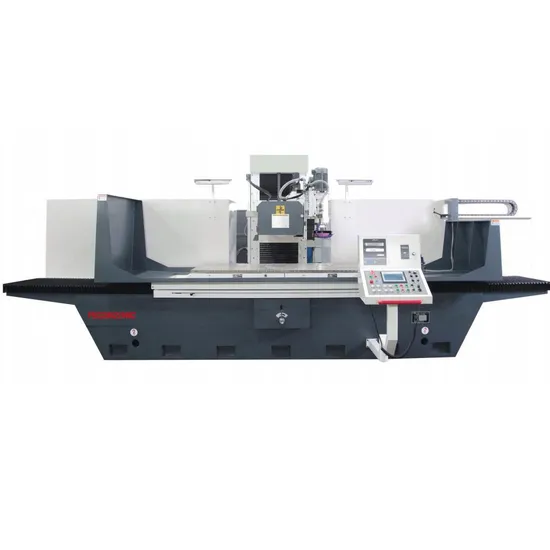

High Precision, Fsgz Series PLC Guideway Grinder

Product Description

Product Parameters
FSGZ series PLC guideway grinder
Specifications

ITEM /MODEL			FSGZ80160NC	FSGZ80220NC	FSGZ80300NC
•Working area
	Table size	mm	810*1600	810*2200	810*3000
	grinding size by H head	mm	810*1600*670	810*2200*670	810*3000*670
	grinding size by V head	mm	680*1100*670	680*1700*670	680*2500*670
	travel of V grinding head	mm	210	210	210
	rotation angle of V spindle (manual)	o	±3	±3	±3
	max loading of table	Kg	2000	2400	3500
•Moving axis
	fast moving speed of table	m/min	525	525	525
	fast speed of both head front and back	m/min	0.05 2	0.05~2	0.05 2
	intermittent feed of H grinding head front and back	mm/t	150	150	150
	manual feed rate of H head front and back	mm/div	0.005	0.005	0.005
	Fast speed of H head in vertical way	m/min	0.05~2	0.05 2	0.05 2
	auto feed ofH head in vertical manual feed of H head in vertical way	mm/t	0.0050.05	0.005~0.05	0.0050.05
		mm/div	0.005	0.005	0.005
	moving speed of V grinding head	m/min	0.05 0.5	0.05~0.5	0.05~0.5
•grinding wheel
	wheel size of H grinding head	mm	500x75x203	500x75x203	500x75x203
	speed ofH spindle	r/min	960	960	960
	grinding wheel of V head		(according to the tech request)
	spindle speed of V grinding head	r/min	3004000	3004000	3004000
•motor
	H grinding head power	kw	18.5	18.5	18.5
	V grinding head power	kw	2.2	2.2	2.2
	total power	kw	40	40	40
•
	flooring space	cm	530*450	650*450	830*450
	GW(about)	kg	11000	13000	14500

REMARK: Optional Accessory: "worktable bump prevention system" is recommended for L type parts.
