Electric Plastic Small Horizontal Injection Molding Machine HDPE/Pet Pellet Shoot Making Blowing Injection Molding Machine

Product Description

Electric Plastic Small Horizontal Injection Molding Machine HDPE/Pet Pellet Shoot Making Blowing Injection Molding Machine

Product Description
bottle cap injectiom molding machine
Application:
We have set up all production database for each injection machine, collecting production data and analyzing the data. It provide a complete database for sustainable development on machine upgrade and innovation. Each injection machine is more fast-cycle time, more lower energy consumption, helping customer to reduce production cost, and enhance their competitive advance.
Our injection machine can produce a wide range of preform, from 5g to 800g, we have full range injection machine, provide multiple machine model option for customers.
PM Horizontal Hydraulic Type Injection Moulding Machine for Plastic Products
The injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.


Detailed Photos

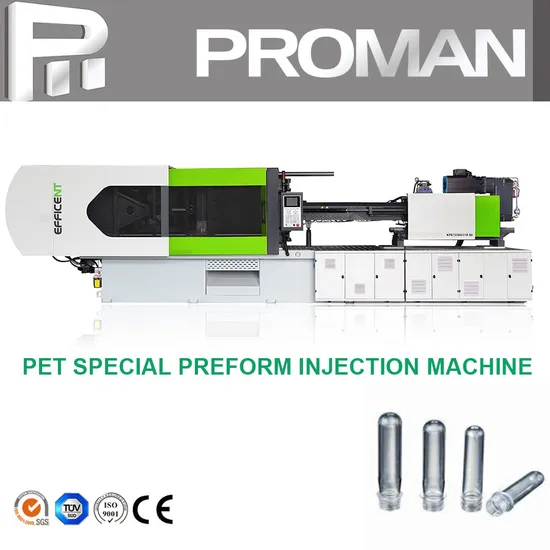

Preform Injection Molding Machine

Guide unit:
With high precision bilinear guide, low friction coefficient, small and uniform injection and plasticizing resistance and faster injection speed, it is suitable for precise injection molding.

Molding unit:
The high strength box formwork based on finite element analysis ensures uniform force, small deformation coefficient, and prolongs the service life of die.
High rigidity T-groove formwork structure, more convenient to replace mold.

Clamping unit:
According to the special optimization design of PET bottle preform forming process, the ejecting force is greater and the ejecting speed is faster than that of the large ejector structure.

Servo motor:
Equipped with high efficiency servo motor and imported high efficiency gear pump system, power saving and water saving can be up to 20% and 50%, and noise is lower.
And the configuration of the motor of the primary or secondary oil pump is increased, the torque is larger, the load is lighter, and the forming period is shortened by more than 20 percent compared with the conventional machine.

Ceramic/Nano heating coil
The ceramic heating ring is used to increase temperature faster, heat preservation performance is good, and 30% electricity is saved, which can avoid bad plasticizing phenomenon due to inaccurate temperature control in the production process of the product.
The injection quantity is increased by 40% compared with that of the conventional machine, and the special brushless motor with large torque PET is provided, the plasticizing efficiency is higher, and the injection period is shorter.
The screw barrel structure specially designed for the PET special machine and the data of the corresponding working elements are seamlessly interfaced to realize the normal operation of lower plasticizing pressure, lower current and higher production capacity.
Cooperation brand Preform Injection Molding Machine

Our Advantages
Servo energy saving injection molding machine output power changes with the loading changing. There's no extra waste of power. The motor doesn't work while cooling, electricity consumption is 0. As compared with the tradition injection molding machine, the servo machine can save electricity 20%-80% that brings you excellent profit.
-Excellent energy saving
As compared with the traditional fixed pump injection molding machine, it saves energy 20%-80% under the same working condition.
-Excellent injection molding stability
The pressure and flow of servo drive system applies closed-loop control, as compared with the traditional injection molding machine, it greatly increases repeatability precision of injection molding.
-Fast response
Fast response servo drive, the start time faster than that of the traditional injection molding machine by 50%.
-Environmental friendly
he complete machine runs under low noisy, low speed operation and quite.
-Constant oil temperature
The servo motor output hydraulic oil according to proportion to avoid extra heat. Even the hydraulic oil need not to be cooled to realize excellent water saving.
Technical Parameter

	PM-700A		PM-950A			PM-1300A			PM-1600A			PM-2000A			PM-2400A			PM-3000A			PM-3800A			PM-4800A
screw diameter	32	35	30	35	40	35	40	45	45	50	55	50	55	60	55	60	65	60	65	70	65	70	75	70	75	80
screw l/d ratio(l/d)	20	18.8	24.5	21	18.4	24	21	18.7	23.3	21	19.1	23.1	21	19	22.9	21	19.4	22.7	21	19.5	22.6	21	19.6	22.6	21	19.7
theoretical shot volume(mm³)	113	135	113	154	201	173	226	286	358	442	534	491	594	707	665	791	921	848	995	1154	1061	1231	1413	1346	1545	1758
shot weight(ps)(g)	101	121	103	140	183	158	206	260	326	402	486	447	540	643	605	720	845	772	905	1050	966	1120	1286	1225	1406	1600
injection pressure(mpa)	232	194	249	183	140	235	142	142	219	178	147	215	178	149	210	176	150	207	176	152	203	175	152	201	175	154
theoretical injection rate(ps)(g/s)	62	72	67.5	91.8	120	110	181	182	142	175	212	145	175	208	176.5	210	245	241	283	328	308	357	410	370	423	484
plasticising capacity(g/s)	11	12	8.3	12.5	18	13.8	19.7	27.1	20.1	26.5	34.2	22.5	28.7	35.4	26.4	32.5	40	35.2	43.3	51.8	50.6	60.5	71.5	60.4	71.4	83.7
max.screw rotate speed(t/min)	220		260			250			200			170			150			150			150			150
injection stroke(mm)	140		160			180			225			250			280			300			320			350
clamping unit
max.clamping force(kn)	700		950			1300			1600			2000			2400			3000			3800			4800
max.opening stroke(mm)	290		340			400			460			500			530			590			680			770
space betweeen(mm)	320*320		360*360			420*420			480*480			505*505			555*555			610*610			680*680			760*760
mould height	120-300		135-380			160-440			180-500			190-530			200-570			220-630			250-710			280-790
max.daylight(mm)590	590		720			840			960			1030			1100			1220			1390			1560
other
pump motor power(kw)	9		11			13			15			18.5			22			30			37			45
heating power	6.2		7.3			9.2			13.6			16.6			16			16			16			16
heating zone	4		4			4			4			4			18.5			22			25			28
net height	2.7		3.2			4.3			5.6			6.4			8			11			15			19.8
oil tank capacity(t)	230		260			360			420			420			440			560			820			850
international designation(l)	700-230		950-280			1300-410			1600-785			2000-1060			2400-1390			3000-1750			3800-2150			4800-2710

Preform Injection Molding Machine

About Us


FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.
