High Efficiency Rubber Kneader X (S) N-75L Deyu Machinery

Product Description

Product DescriptionFor rubber(plastics)plasticating and mix.

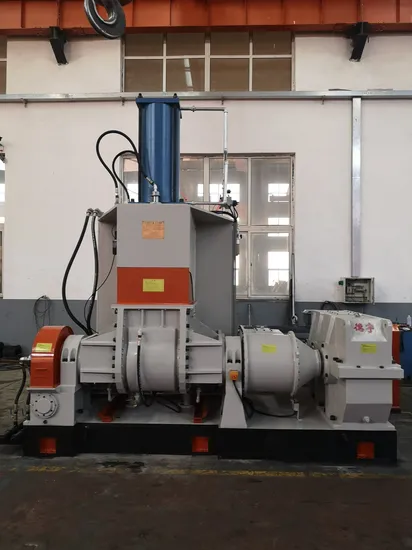

Detailed Photos
Our Advantages 1. Rotor shaft of the machine adopt Taiwan technology,rotor ribbed spiral Angle and working length of reasonable design,can make the material to obtain the best effect of mixing,and faster than ordinary kneader to mixing compound 1~2 minutes per session,.
2.The rotor edge peak and end face for surfacing welding wear-resisting carbide, Rotor,ram and mixing chamber, directly contact with the compound of surface are after throwing grinding hard chromium plating(0.1mm),as bright as mirror and wear-resisting corrosion resist ance.
3.Rotor outside contact pressure type non-lubricatedseal structure,the sealing rings made of high quality copper manufacture wear-resisting ,good sealing effect.
4.This machine adopts intelligent control system,equipped with rubber mixing process according to product requirements arbitrary control mode set-ting function, suitable for any different rubber mate-rial or different operators different requirements,product quality and efficiency standards unified. 5.The control system adopts the touch screen (the neces-sary operation buttons and switches outside the PLC man-machine interface are equipped with flat-head button switches) and the programmable controller touch screen can effectively transmit and display the operation of the host, and can also set different pressure and speed according to different rubber materials .Detailed specification:

item (model)	X(S)N- 3×32	X(S)N- 5×32	X(S)N- 10×32	X(S)N- 20×32	X(S)N- 25×32	X(S)N- 35×32	X(S)N- 55×30	X(S)N- 75×30
total volume of mixing chamber (L)	8	15	25	45	55	75	125	170
orking volume of mixing chamber (L)	3	5	10	20	25	35	55	75
driving motor power (kw)	5.5	11	22	37	37	55	75	110
tilting(hydraulic) motor power (kw)	0.55	1.1	1.1	1.5	1.5	2.2(7.5)	3(7.5)	4(7.5)
tiling angle (°)	140	140	140	140	140	140	140	140
rotational speed of the rotor(front/rear) (r/min)	32/24.5	32/23.5	32/25	32/27	34/28	34/28	34/28	34/28
capacity of compressed air (m³/min)	≥0.3	≥0.5	≥0.5	≥0.7	≥0.7	≥0.9	≥1.0	≥1.0

pressure of cooling water(rubber mixing) (MPa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4
pressure of heating steam(plastics mixing) (MPa)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
L (mm)	2000	1850	2640	2675	2675	3200	3230	3325
dimensions W (mm)	1000	1200	1650	1650	1650	1900	1927	2615
H(mm)	2220	2580	2350	2560	2560	2950	2958	3105
pressure of compressde air (MPa)	0.5/0.8	0.5/0.8	0.6/0.8	0.5/0.8	0.6/0.8	0.6/0.8	0.5/0.8	0.6/0.8
gross weight (t)	2	2.1	3.3	4	4.5	6.3	7.1	9.5

Company Profile Dalian Deyu Machinery Co., Ltd. is located in Wulu Town, Zhuanghe City, Dalian. The two factories of Deyu covers an area of more than 40,000 square meters. It is a high-tech enterprise specializing in the development and production of rubber machinery. Deyu has strong technical force, advanced design concept, always adhering to the concept of "to realize customer ideas as the center, to make users satisfied as the objective, to create value for the rubber industry as the purpose". It is dedicated to create rubber equipment with excellent quality and advanced intelligence for the majority of users, to minimize the labor intensity of rubber equipment according to the actual requirements of users, to reduce labor costs for users, reduce energy consumption, and achieve green production.FAQ1.Q: What is the size of this product?
A:The specific size needs to be determined according to your actual needs, you can consult the product information in detail, so that we can provide you with more accurate services.
2.Q: Does the product support customization?
A: Yes, we support a certain degree of customization, including (customizable content, such as color, size, function, etc.). Please contact us for a quote.
3.Q: Can I apply for a bulk purchase discount?
A: Of course. If you have bulk purchase needs, please contact us, we will provide the corresponding discount program according to your purchase volume.
4.Q: Can I get technical support?
A: Of course. If you encounter any problems during use, you can get technical support through our customer service hotline or online customer service.
5.Q: Does the product meet relevant standards or certifications?
A: Our products comply with ISO standards, so you can use them with confidence.
6.Q: Does the product come with a warranty?
A: Yes, we offer a 1-year limited warranty on our products.
