Auto Tie Horizontal Baling Machine Baler Recycling for Occ, Waste Cardboard, Paper, Plastic, Pet Bottles, Cans, Metal, Straw, Hay

Product Description

Product Description

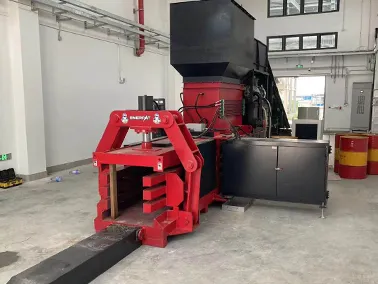

Fully Automatic Horizontal Baler Our fully automatic horizontal balers are an automated version of our horizontal balers, able to process high volumes of recyclable materials such as paper, cardboard and plastics, ideal for companies with a large amount of daily waste to handle.
Materials are pressed into stable, high-density bales by our fully automatic balers, which are easy and safe to stack, requiring less storage space. The length and weight of bales is selectable, with bales being tied automatically when the selected length is reached.
Our fully automatic horizontal balers are CE marked and designed with customer requirements in mind, making your waste management a simple and cost efficient process.

Enerpat Direct supply a full range of auto tie horizontal balers to handle all the standard materials such as cardboard, soft plastics (shrink-wrap, plastic sheeting), PET bottles as well as hard plastics, aluminium and steel cans and even difficult materials such as RDF (Refuse Derived Fuel).
Fully automatic balers are required when a throughput over 2 tonnes per hour is needed. Tying-off of bales is carried out automatically.

Details
Cardboard Baling Press Machine HBA Series Waste Paper Horizontal Baler

Three-way Compression
The three-way compression mechanism is equipped with three hydraulic cylinders, which are controlled in two directions and change in linkage with the pressure of the main compression cylinder.
The three-way compression design ensures that the block is well formed and the finished product has a high density
Hydraulic System
Europe Design hydraulic system,efficiency and stable
International Top Brands valve and pump
Air Conditioner Cooling System which accept machine 24/7 working

Electric System
The main electrical components are selected from the French Sch neider brand
The PLC brand of the equipment is Siemens
European CE design standard, in line with EU safety requirements
Automatic Baling System
German automatic strapping technology, stable and efficient
The core components are imported, reliable and durable
Applications
Technical Data Sheet

Model	Bale Size(mm)(WxHxL)	Bale Weight(Cardboard)(kg)	Motor Power(kw)	Output(t/h)	Machine Size (m)(LxWxH)
HBA-40-7272	720x720x500~1500	200~350	22+1.5+2.2	1-3	6.3x3.0x2.1
HBA-60-7585	750x850x500~1500	300~450	30+1.5+2.2	2-4	6.8x3.0x2.15
HBA-80-11075	1100x750x500~1500	400~600	37+1.5+2.2	4-8	8.0x3.7x3.8
HBA-100-11075	1100x750x500~1800	600~800	45+1.5+2.2	6-9	10x3.7x3.8
HBA-100-110110	1100x1100x500~1800	800~1000	45+1.5+2.2	7-12	10x3.7x4.6
HBA-120-110130	1100x1300x500~1800	900~1100	55+1.5+2.2	9-13	11x3.7x4.9
HBA-150-110130	1100x1300x500~1800	1100~1300	45x2+1.5+2.2	14-18	11x3.7x4.9
HBA-180-110130	1100x1300x500~1800	1200~1400	55x2+1.5+2.2	17-25	11.6x3.7x5.5
HBA-200-110130	1100x1300x500~1800	1400~1600	55x2+1.5+2.2	17-25	11.6x3.7x5.5
