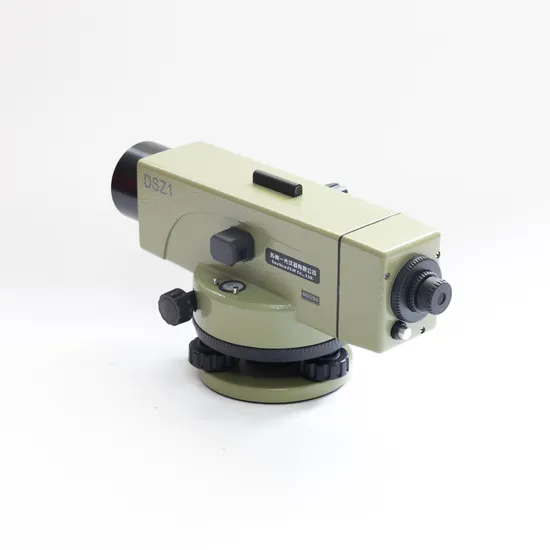

Factory Direct Supply Foif Dsz1 Optical Level Surveying Instrument

Product Description

Product Description Applicable places:
The main uses of DSZ1 leveling instrument are: used for national second and third level leveling measurement, construction engineering measurement, deformation and settlement monitoring, mine measurement, installation of large machinery and industrial equipment, tool processing measurement and engineering measurement, mine measurement, etc., which can greatly improve the Operational efficiency and measurement accuracy.
Features:
1. The standard deviation of round-trip measurement per kilometer (ie, instrument accuracy) is 1mm.
2. The diameter of the telescope is 50mm.
3. 38 times magnification.
4. The image quality of the optical system is less than or equal to 3"
Detailed Photos
Product Parameters

Technical parameters (using high-quality indium steel ruler)
Standard deviation of the round-trip measurement height difference per km	≤1mm
Telescope	Erect
Magnification	38×
Objective lens diameter	50mm
Compensator working range	15′
Accuracy	±0.3″
Circular level sensitivity	20′/2mm
Working temperature	-30ºC~+50ºC
Waterproof grade	IP55
