XCMG Gtjz0607 6-12m Used Mini Electric Scissor Aerial Workl Platform

XCMG Gtjz0607 6-12m Used Mini Electric Scissor Aerial Workl Platform

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Gtjz0607
Max. Lifting
7.8m
Power
53kw
Transport Package
Comply with Export Packaging Requirements
Specification
1882*760*1771mm
Trademark
XCMG
Origin
Jiangsu, China
HS Code
84301000
Production Capacity
1000/Year

Product Description

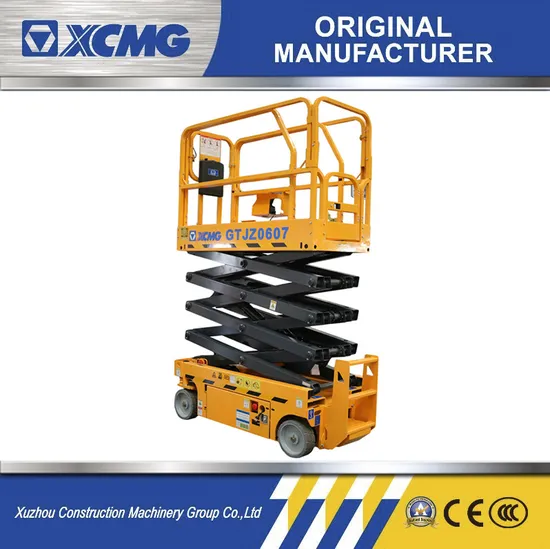

XCMG Gtjz0607 6-12m Used Mini Electric Scissor Aerial Workl Platform.
The GTJZ0607 scissors aerial work platform which is the newly developed series by XCMG canprovide customers with a variety of personalization options.
The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace.
XCMG Scissors aerial work platform can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Advantages and highlights:
1, Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.
2, Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
3, Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique "zero inner turning radius" works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate. Product Parameters
Item Unit Parameters
a Overall Length mm 1882
b Overall Width mm 760
c Overall Height (Guardrail folding) mm 1771
d Wheel Base mm 1360
Maximum Working Height m 7.8
Maximum Platform Height m 5.8
Maximum Load Capacity kg 230
Extension Platform Load kg 115
Platform Size mm 1655×740×1185
Platform Extension Length mm 900
Lifting Speed of Working Platform s 16-24
Falling Speed of Working Platform s 20-28
Total Weight kg 1490
Travel Speed (High Speed) km/h 4
Travel Speed (low Speed) km/h 0.8
Max. Travel Platform Height m 5.8
Minimum Turning Radius m 0
Minimum Ground Clearance (Pot Hole Protector Rises/Falls) mm 60/20
Maximum Grade Ability % 25
Tire Specification _ Traceless solid
30.5cm×10.0cm
Battery V/(Ah) 4×6(225)
Charger A 30
Warning Angle of Inclination ° 1.5 (Both sides)
° 3(Front or Rear)
