P31.25mm LED Grid Display for Large Building Video Wall

P31.25mm LED Grid Display for Large Building Video Wall

US$220.00
1-199 Square Meters
US$210.00
200-599 Square Meters
US$200.00
600+ Square Meters

Basic Info.

Model NO.
P31mm-B
Pixel Pitch
31.25mm
Pixel Configuration
1r1g1b or 2r2g2b
Display Function
Video Display, Image & Text Display, Text Display, Market Display, Glass Building Facade
Average Power Consumption
220W / m²
Pixel Density
1024 dot / m²
Scanning Mode
Static Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC
Control Sysytem
Nova Star
Fire Protection Rating
UL94-V0
Transparency
55%
Refresh Rate
>1920Hz
Viewing Distance
6m~200m
Screen Weight
9 Kg/M²
Viewing Angle
120°(H)/120°(V)
Brightness
2500 / 4000 / 6000 (CD/M²)
Transport Package
Carton
Specification
Housing Material PC
Trademark
Green Tech Light
Origin
Shenzhen
HS Code
8531200000
Production Capacity
50000 Sqm/Month

Product Description

LED Grid Display Advantages 1. High Transparent Rate, Ultra-thin, Ultra lightweight. The Transparent rate can reach 55% ~ 90%, not obstructing the natural light, which ensures the original lighting and viewing angle requirements of the glass facade and curtain wall, and has good wind resistance effect. The screen is thin (only 15mm) and light weight(only 2 ~ 9kg / sqm)
2. Foldable, Arbitrary Bending, Easy Installation, Without Steel Structure. Flexible & Light Weight, with various shapes, easy to install and maintain. can be freely combined into various shapes to meet the needs of various creative displays.
3. Cost Saving, the price is only 1/5 of the Traditional LED Display By optimizing the structure, we abandoned the heavy box of the traditional screen, and made targeted improvements in the manufacturing process, packaging and control system. Every individual LED pixel dot is changeable, no need to take out a whole string or dismantle any frame structure.After-sale repair has the lowest cost.
4. Energy Saving & Environmental Protection Lower Energy Consumption, the air duct dissipates heat by itself and does not need to be cooled by air conditioning.

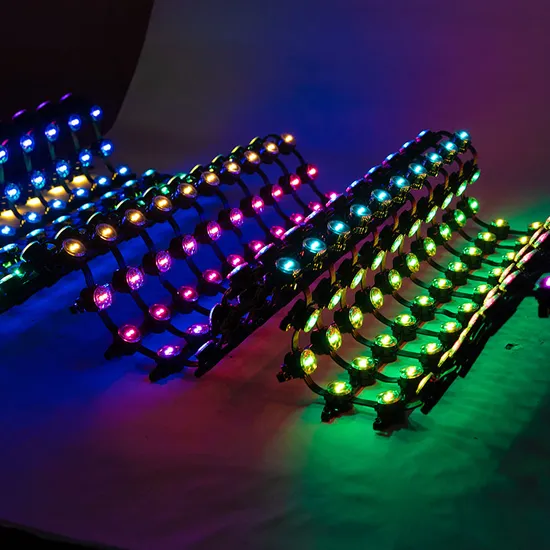

5. Fully Customizable Building Media Facade Flex LED Grid Display composed of LED Pixel Light, Plastic Button Strip, 4-Wire Cable, Stainless Steel Rope and other components connected into a mesh structure Screen. It can meet the needs of lighting decoration and is used for playing text, images and videos. It is a product with the concept of "Large Pixel Height". It has incomparable advantages in the field of super large area display and creative display.
The Pixel Distance of the Mesh Screen from P30 to P150mm, and the Area Can be from tens Sqm. to thousands Sqm. It's meet the needs of real estate projects, commercial centers, glass curtain walls, hotels, high-rise building facades and other large-area displays..
High Transparency
High transparency maximizes the natural light get inside of the building, flexible LED grid screen also ensuring the screen has great ventilation and wind-resistance function.
Flexible Design
Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available. Bendable, shaped displays, coverage of various irregular structures. Detachable Element & Fast Locks
Removing the string directly from the flexible frame in front for quick and trouble-free maintenance. The strings can be also fixed as linear lighting separately in aluminum slot or in a independent bracket .
Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required; Zipper quick lock system, The fast lock lock system makes your hanging job so easy even on the touring stage. Quick Installation
Anti-Fire & IP67 Waterproof
The Lamp body is sealed with silicone gel, Head and tail of the panel, with waterproof connectors.. Good Weather-resistance, is IP67 rated, UV-resistant, Housing and wire adopt Anti-fire material. LED Grid Display QUICK INSTALLATIONFast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.
LED Grid Display System Connection
LED Grid Display After Install
LED Grid Display Installation Projects:
Working Environment Temperature -30ºC~+60ºC,Humidity10~90% RH Processing Protocol TTL (Break Point Resume)
Input (Working) Voltage AC110~ 240V, 50/60Hz (DC12V) Gray Scale 16 Bits
