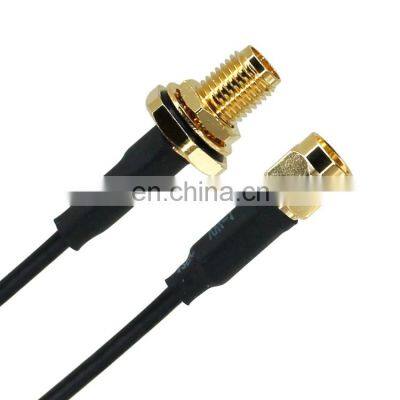

Coaxial RG174 Dual Antenna Cable With SMA Connector

Product Description

Product Description
Coaxial RG174 Dual Antenna Cable With SMA ConnectorProduct Description

RG174 coaxial cable (Low Noise)
Physical Dimensions
CONDUCTOR	MATERIAL	BC
	CONSTRUCTION	7/0.16±0.04mm
INSULATION	MATERIAL	Foam PE
	DIAMETER	1.24+0.05mm
SHIELDED 1	MATERIAL	Conductor PVC
	DIAMETER	1.57+0.10mm
SHIELDED 2	MATERIAL	TC wire
	CONSTRUCTION	64/0.10±0.003mm
SEPARETOR	MATERIAL	Paper Tape
JACKET 1	MATERIAL	PVC
	DIAMETER	3.0±0.10mm
Electrical Properties
IMPEDANCE	50±3 Ω
ATTENUATION (20℃, ≤dB/100m)	10MHz	10.5
	50MHz	27.0
	100MHz	43.5
	200MHz	72.0
	500MHz	149.0
Conductor DC resistance (Ω/km)	126.9
Temperature Range ( ℃ )	—20℃ ~ + 80℃
Max. Operating Voltage ( V )	1100

Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.

Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
