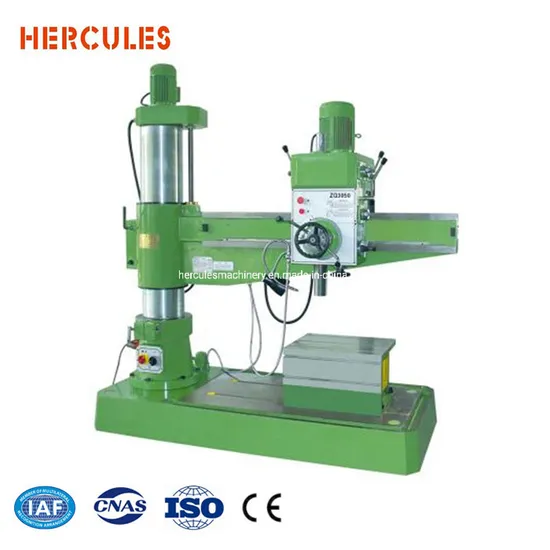

Z3050X16 Taladro Radial Drilling Press Tapping Cutting machine
| US$6,500.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050x16
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
N.W/G.W
2800/2400 kilos
Transport Package
Wood Pallet
Specification
2170*950*2450
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month
Product Description
Advantage1. With a wide range of speed and feed, with manual\power and fine feeds.
2. The feed of machines are very easily engaged and disengaged at any time.
3. All parts are easily operated and changed.
4. High quality of casting.
5. Heat treatment for spindle parts, ensuring their high strength and durability.
6. Main gears are machined by gear grinding, ensuring the machine with high precision and low noise.
| Model | Z3050x16/Z3050x14 | Z3040x14/Z3040x11 | Z5040 |
| Radial drilling machine | Geared head vertical drilling machine | ||
| Max. drilling dia | Φ50 | Iron Φ40/steel Φ32 | Φ40 |
| Distance from spindle nose to table surface | 260-1050/260-1150 | 260-1150/260-1050 | 770 |
| Distance between spindle axis and column surface | 360-1600/360-1400 | 350-1400/ 360-1/1100 | 350 |
| Spindle travel | 220 | 200 | 180 |
| Spindle cone | 5 | 4 | 4 |
| Spindle speed range | 78. 135. 240. 350. 590. 1100 | 78. 130. 240. 380. 660. 1200 | 50-1450rpm |
| Spindle speed step | 6 | 6 | - |
| Spindle feeding range | 0.10-0.56 | 0.10-0.25 | 0.10-0.20 |
| Spindle feeding step | 3/6 | 3 | 2 |
| Rocker rotary angle | 360 | 360 | - |
| Main motor power | 4 | 2.2 | 0.85kw/1.5kw |
| Movements motor power | 1.5 | 1.5/0.75 | - |
| N.W/G.W | 2800/2400 | 2200/1600 | 465kg/510kg/615kg/650kg |
| Overall dimension | 2170x950x2450/1950x810x2450 | 1800x810x2300/1500x705x2200 | 2270x690x1100 |
| Optional power feed for Z5040: Z5040E electronic power feed ; Z5040T Machinery power feed ; Z5040ET Electronic power feed | |||
Pictures for reference only:
